User Manual for QSC CP12 Compact Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the QSC CP12 Compact Powered Loudspeaker
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC CP12 Compact Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

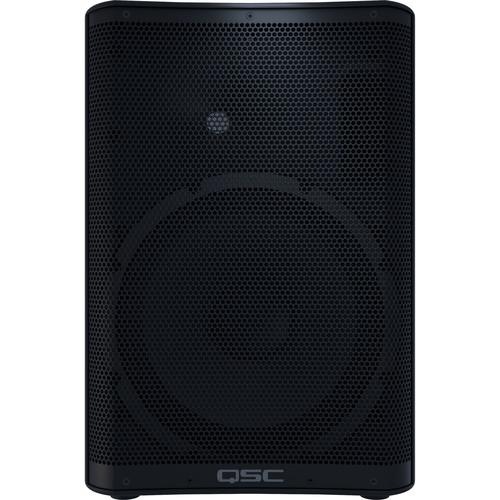

Product description QSC Announces 8- and 12-Inch Compact Powered Series Loudspeakers Read More The QSC CP12 is a multipurpose loudspeaker suitable for portable or installed live-sound applications. Whether carting the speaker to gigs or installing it on stage as a vocal monitor, you'll find the monitor exhibits a powerful sound.
The monitor gives you the ability to mix up a mic/line input, a line input, and a music playback device, supplying a total of three inputs. Thus, the CP12 can function as your sole PA if you're an acoustic singer/songwriter playing anything from intimate clubs to menu-venue gigs. However, put the monitor on a speaker pole or yoke it to the ceiling, and you'll have secured a dependable element in your club's permanent PA system.
The QSC CP12 is capable of handling up to 1000W peak thanks to its Class-D amplifier, doing so through its 12" cone LF transducer and 1.4" HF compression driver. You can reach SPL values of up to 126 dB, and the construction of the monitors ensures an even frequency response from 49 Hz to 20 kHz.

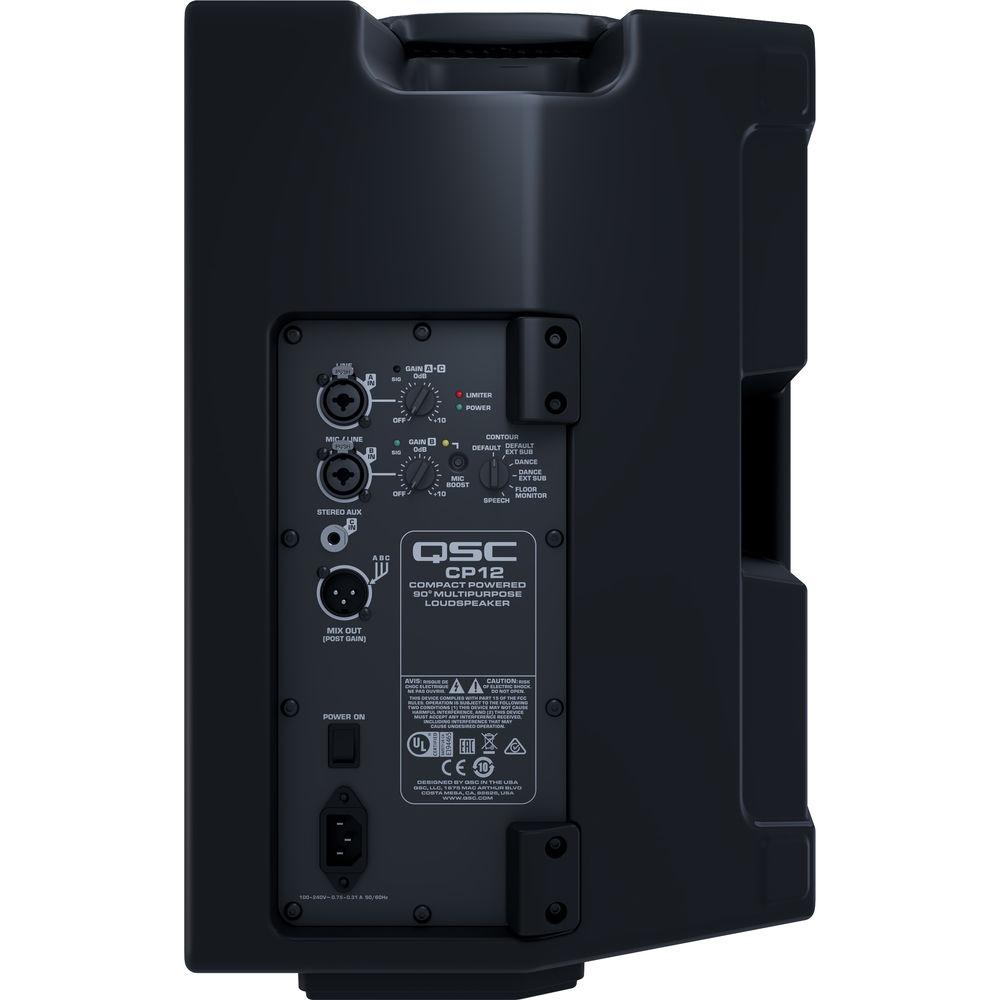

The rear panel offers controls sure to be useful to your practice, whether it's the one-touch 25 dB Mic Boost switch on input B, or the contour selector switch; the latter tailors the speaker's response to better suit common scenarios such as dance floor, speech address system, and floor monitor. These contours are made possible by the DSP system programmed into the device.
Finally, the unit is relatively compact and portable. It measures 20.3 x 13.8 x 12.7", and weighs 30.3 lb, making it easier to handle than many conventional live-sound monitors or instrument amplifiers. -
- Relatively compact at 23.6 x 16.4 x 16.5"
- 1000W peak-power Class-D amplifier module
- Easily selectable contours for commonly used applications
- DSP with Intrinsic Correction to bolster sound quality and speaker protection
- Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
- Lightweight and portable at 30.3 lb
- For use as main PA, stage monitor, or instrument amplifier
- 35mm pole socket
UPC: 684284071323 In the Box QSC CP12 Compact Powered Loudspeaker Limited 3-Year Warranty upon Product Registration Data Sheet PDF 766.4kbdsrwuxuzswfxe Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC CP12 Compact Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC CP12-NA Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W | | Amplifier Power Rating | LF:
800 W Peak
HF:
200 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm Compression Driver | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Response | 49 Hz to 20 kHz -6 dB
47 Hz to 20 kHz -10 dB | | Maximum SPL | 126 dB | | Coverage Angle | 75° H x 75° V | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x 1/8" / 3.5 mm TRS Input
1 x XLR Mix Output | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 100 VAC:
0.75 A (1/8 Power)
120 VAC:
1 A (1/8 Power)
240 VAC:
0.31 A (1/8 Power) | | | | Mounting | M10 | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 20.3 x 13.8 x 12.7" / 516.0 x 350.0 x 323.0 mm | | Weight | 30.3 lb / 13.7 kg | | | | Package Weight | 36.85 lb | | Box Dimensions (LxWxH) | 23.5 x 17.0 x 16.5" |
