Product description

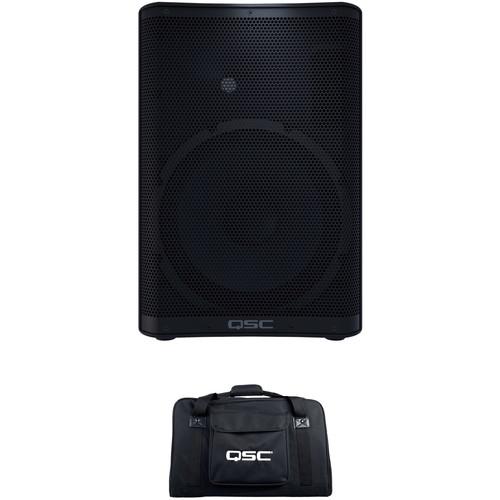

• QSC CP12 Compact Powered Loudspeaker The QSC CP12 is a multipurpose loudspeaker suitable for portable or installed live-sound applications. Whether carting the speaker to gigs or installing it on stage as a vocal monitor, you'll find the monitor exhibits a powerful sound.

  The monitor gives you the ability to mix up a mic/line input, a line input, and a music playback device, supplying a total of three inputs. Thus, the CP12 can function as your sole PA if you're an acoustic singer/songwriter playing anything from intimate clubs to menu-venue gigs. However, put the monitor on a speaker pole or yoke it to the ceiling, and you'll have secured a dependable element in your club's permanent PA system.

  The QSC CP12 is capable of handling up to 1000W peak thanks to its Class-D amplifier, doing so through its 12" cone LF transducer and 1.4" HF compression driver. You can reach SPL values of up to 126 dB, and the construction of the monitors ensures an even frequency response from 49 Hz to 20 kHz.

  The rear panel offers controls sure to be useful to your practice, whether it's the one-touch 25 dB Mic Boost switch on input B, or the contour selector switch; the latter tailors the speaker's response to better suit common scenarios such as dance floor, speech address system, and floor monitor. These contours are made possible by the DSP system programmed into the device.

  Finally, the unit is relatively compact and portable. It measures 20.3 x 13.8 x 12.7", and weighs 30.3 lb, making it easier to handle than many conventional live-sound monitors or instrument amplifiers.
  • • Relatively compact at 23.6 x 16.4 x 16.5"
    • 1000W peak-power Class-D amplifier module
    • Easily selectable contours for commonly used applications
    • DSP with Intrinsic Correction to bolster sound quality and speaker protection
    • Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
    • Lightweight and portable at 30.3 lb
    • For use as main PA, stage monitor, or instrument amplifier
    • 35mm pole socket
  UPC: 684284071323
• QSC Tote for the CP12 Compact Powered Loudspeaker This QSC Tote is designed for use with the CP12 powered loudspeaker. It allows you to transport the monitor from place to place. The tote sports a weather-resistant construction, fashioned out of heavy-duty cordura nylon material. Pockets are on hand to store cables and other accessories. A strap allows you to carry the tote. UPC: 684284076700

• CP12 Compact Powered Loudspeaker
• Limited 3-Year Warranty upon Product Registration

• Tote for the CP12 Compact Powered Loudspeaker brqrucbvaadfzxcbusyfdqywtdszdedsbeww

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QSC CP12 Compact Powered Loudspeaker

  Configuration	Active 2-Way
  Total Power Capacity	1000 W
  Amplifier Power Rating	LF: 800 W Peak HF: 200 W Peak
  Amplifier Class	Class-D

  HF Driver	1 x 1.4" / 35.6 mm Compression Driver
  LF Driver	1 x 12" / 305 mm Woofer

  Frequency Response	49 Hz to 20 kHz -6 dB 47 Hz to 20 kHz -10 dB
  Maximum SPL	126 dB
  Coverage Angle	75° H x 75° V

  Audio I/O	2 x Combo XLR / 1/4" Line/Mic Input 1 x 1/8" / 3.5 mm TRS Input 1 x XLR Mix Output

  AC Input Power	Universal: 100 to 240 VAC, 50 / 60 Hz
  Current Consumption	100 VAC: 0.75 A (1/8 Power) 120 VAC: 1 A (1/8 Power) 240 VAC: 0.31 A (1/8 Power)

  Mounting	M10
  Construction Material	Metal Grille, Polypropylene
  Dimensions	20.3 x 13.8 x 12.7" / 516.0 x 350.0 x 323.0 mm
  Weight	30.3 lb / 13.7 kg

  Box Dimensions (LxWxH)	23.5 x 17.0 x 16.5"

• QSC Tote for the CP12 Compact Powered Loudspeaker

  Type	Bag
  Material of Construction	Cordura, Nylon

  Box Dimensions (LxWxH)	6.8 x 5.75 x 5.1"
