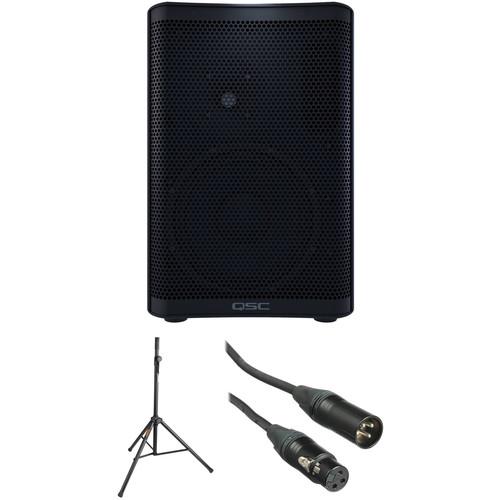

QSC CP8 Compact Loudspeaker with Stand

User Manual for QSC CP8 Compact Loudspeaker with Stand and Cable Kit

• Product category: PA Speakers QSC
• Brand: QSC
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for QSC PA Speakers

Product description

• QSC CP8 Compact Powered Loudspeaker The QSC CP8 is a multipurpose loudspeaker suitable for portable or installed live-sound applications. Whether carting the speaker to gigs or installing it on stage as a vocal monitor, you'll find the monitor exhibits a powerful sound.

  The monitor gives you the ability to mix up a mic/line input, a line input, and a music playback device, supplying a total of three inputs. Thus, the CP8 can function as your sole PA if you're an acoustic singer/songwriter playing anything from intimate clubs to menu-venue gigs. However, put the monitor on a speaker pole or yoke it to the ceiling, and you'll have secured a dependable element in your club's permanent PA system.

  The QSC CP8 is capable of handling up to 1000W peak thanks to its Class-D amplifier, doing so through its 8" cone LF transducer and 1.4" HF compression driver. You can reach SPL values of up to 124 dB, and the construction of the monitors ensures an even frequency response from 56 Hz to 20 kHz.

  The rear panel offers controls sure to be useful to your practice, whether it's the one-touch 25 dB Mic Boost switch on input B, or the contour selector switch; the latter tailors the speaker's response to better suit common scenarios such as dance floor, speech address system, and floor monitor. These contours are made possible by the DSP system programmed into the device.

  Finally, the unit is relatively compact and portable. It measures 16.2 x 10.7 x 10.1", and weighs 21 lb, making it easier to handle than many conventional live-sound monitors or instrument amplifiers.
  General Features at a Glance
  • • Relatively compact at 16.2 x 10.7 x 10.1"
    • 1000W peak-power Class-D amplifier module
    • Easily selectable contours for commonly used applications
    • DSP with Intrinsic Correction to bolster sound quality and speaker protection
    • Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
    • Lightweight and portable at 21 lb
    • For use as main PA, stage monitor, or instrument amplifier
    • 35mm pole socket
  UPC: 684284071316
• Auray SS-4420 Steel Speaker Stand The SS-4420 Steel Speaker Stand from Auray is built for durability and it can support speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 46" to 76". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
  • Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
  • Locking pin fits into any of five predrilled holes to secure desired height setting
  • Center brace connects tripod legs for increased stability
  UPC: 847628015852
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• CP8 Compact Powered Loudspeaker brqrucbvaadfzxcbusyfdqywtdszdedsbeww
• Limited 3-Year Warranty upon Product Registration

• Auray - SS-4420 Steel Speaker Stand

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QSC CP8 Compact Powered Loudspeaker

  Configuration	Active 2-Way
  Total Power Capacity	1000 W
  Amplifier Power Rating	LF: 800 W Peak HF: 200 W Peak
  Amplifier Class	Class-D

  HF Driver	1 x 1.4" / 35.6 mm Compression Driver
  LF Driver	1 x 8" / 203 mm Woofer

  Frequency Response	56 Hz to 20 kHz -6 dB 53 Hz to 20 kHz -10 dB
  Maximum SPL	124 dB
  Coverage Angle	90° H x 90° V

  Audio I/O	2 x Combo XLR / 1/4" Line/Mic Input 1 x 1/8" / 3.5 mm TRS Input 1 x XLR Mix Output

  AC Input Power	Universal: 100 to 240 VAC, 50 / 60 Hz
  Current Consumption	100 VAC: 0.75 A (1/8 Power) 120 VAC: 1 A (1/8 Power) 240 VAC: 0.31 A (1/8 Power)

  Mounting	M10
  Construction Material	Metal Grille, Polypropylene
  Dimensions	16.2 x 10.7 x 10.1" / 411.0 x 273.0 x 256.0 mm
  Weight	21 lb / 9.5 kg

  Box Dimensions (LxWxH)	19.0 x 14.0 x 14.0"

• Auray SS-4420 Steel Speaker Stand

  Type	Speaker Stand
  Load Capacity	100 lb / 45.4 kg
  Mount Size	1-3/8" 1-1/2"
  Height Adjustment Range	46 to 76" / 118 to 194 cm
  Material of Construction	Steel
  Weight	8 lb / 3.6 kg

  Box Dimensions (LxWxH)	39.5 x 5.3 x 5.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
