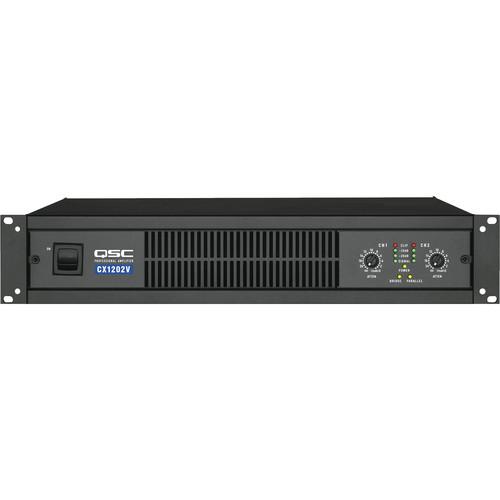

Product description The 70V CX-1202V 2 Channel Direct Output Power Amplifier from QSC is a two-channel, transformerless, 70V output amplifier. It features PowerLight switch-mode power supply technology and has an integrated security cover designed for tamper-proof installation. This unit has a variable speed fan to maintain low noise, and 1 dB detented gain controls for fast and accurate gain settings. The active inrush limiting is designed to eliminate AC inrush current, and a class H complementary bipolar output circuitry is integrated for high efficiency.
The CX-1202V features XLR and detachable Euro style input connectors and a barrier strip output connector. It also has an HD15 DataPort connector for Q-Sys and QSControl computer control and monitoring, as well as a DIP switch control for clip limiters, high pass filters, and bridge-mono & parallel operation. The selectable high pass filters protect speakers and prevent speaker transformer saturation. The unit's front panel indicators include signal, clip, protect, and bridge mono and parallel input LEDs. Comprehensive protection circuitry with DC, infrasonic, thermal overload, and short circuit protection is also featured. This unit is rackmountable and 14" deep for reduced rack cost and floor space. It is RoHS compliant and cULus listed. - PowerLight switch-mode power supply technology for high performance and compact size
- Custom integrated security cover for tamper-proof installation
- Variable speed fan for low noise
- 1 dB detented gain controls for fast and accurate gain settings
- Active inrush limiting designed to eliminate AC inrush current
- XLR and detachable Euro style input connectors, barrier strip output connector
- HD15 DataPort connector for Q-Sys and QSControl computer control and monitoring
- Dip switch control for clip limiters, high pass filters, and bridge mono & parallel operation
- Selectable high pass filters protect speakers and prevent speaker transformer saturation
- Comprehensive front panel indicators including signal, clip, protect, and bridge mono and parallel input LEDs
- Comprehensive protection circuitry with DC, infrasonic, thermal overload, and short circuit protection
- 2RU rackmountable and 14" deep for reduced rack cost and floor space
- Lightweight at 21 lb for easier racking and shipping
- RoHS compliant, cULus listed
UPC: 684284003652 In the Box QSC CX-1202V 2 Channel Direct Output Power Amplifier (70V) Security Cover for Gain Controls Adhesive Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC CX-1202V 2 Channel Direct Output Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC CX-1202V Specs | Power Rating | Stereo Mode (Both Channels Driven):
8 Ω: 700 W, 20 Hz-20 kHz, 0.05% THD
4 Ω: 1100 W 20 Hz-20 kHz, 0.05% THD
70 V: 800 W, 20 Hz-20 kHz, 0.05% THD
70 V: 1000 W, 1 kHz, 0.05% THD
70 V: 1200 W, 1 kHz, 1% THD
Bridged Mono Mode:
16 Ω: 1400 W, 20 Hz-20 kHz, 0.1% THD
8 Ω: 2200 W, 20 Hz-20 kHz, 0.1% THD
140 V: 1600 W, 20 Hz-20 kHz, 0.05% THD
140 V: 2000 W, 1 kHz, 0.05% THD
140 V: 2400 W, 1 kHz, 1% THD | | Damping Factor | >500 | | Input Sensitivity | 1.26 V rms @ 8 Ω | | Input Impedance | Balanced: 12 kΩ
Unbalanced: 6 kΩ | | Input Clipping Level | 10 V rms (+22 dBu) | | Voltage Gain | x56.6, 35 dB | | Output Circuit | H, 2-tier | | Frequency Response | 20 Hz-20 kHz, ± 0.2 dB | | Noise | 20 Hz-20 kHz: >-106 dB | | Distortion | SMPTE-IM: <0.02%
20 Hz-20 kHz (10 dB Below Rated Power): <0.01% THD
<= 1.0 kHz (Full Rated Power): <0.01% THD | | Connectors | 1 x 3-pin EIC, power supply input
1 x 3-pin XLR female, channel 1 line input
1 x 3-pin XLR female, channel 2 line input
1 x 3-pin terminal block, channel 1 line input
1 x 3-pin terminal block, channel 2 line input
1 x 3-position barrier strip, channel 1 speaker output
1 x 3-position barrier strip, channel 2 speaker output
1 x 15-pin Sub-D female, serial data port
1 x 3.5 mm phone jack, mono output | | Controls | Front Panel:
1 x Channel 1 attenuation knob
1 x Channel 2 attenuation knob
1 x Power On/Off switch
Rear Panel:
1 x 10-position DIP switch (clip limit, filters, and stereo & parallel mode settings for both channels) | | LED Indicators | 1 x Power, yellow
1 x Bridge, yellow
1 x Parallel, yellow
2 x Clip, red
2 x -10 dB, green
2 x -20 dB, green
2 x Signal, green | | Cooling | Variable-speed fan, rear-to-front air flow | | Power Consumption | Idle: 0.9 A
1/8 Power Pink Noise: 12.0 A @ 120 V
1/3 Power Pink Noise: 19.0 A @ 120 V | | Dimensions (W x L x D) | 19.0 x 3.5 x 14.0" (48.3 x 8.9 x 35.6 cm) | | Weight | 21 lb (9.5 kg) | | | | Package Weight | 27.3 lb | | Box Dimensions (LxWxH) | 24.0 x 18.5 x 5.7" |
