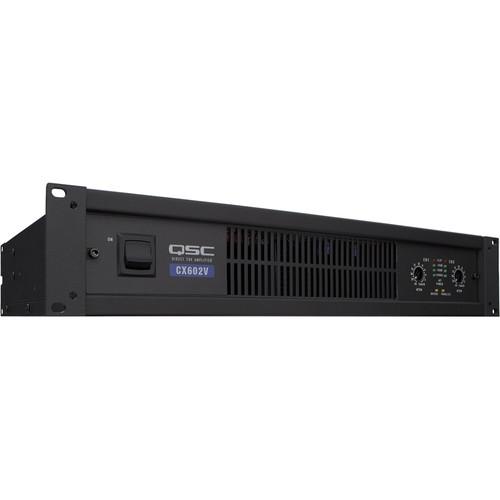

User Manual for QSC CX-602V Power Amplifier Click to enlarge the picture
Contents of the user manual for the QSC CX-602V Power Amplifier
- Product category: 70-Volt Amplifiers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC 70-Volt Amplifiers
 |
User manual for the QSC CX-602V Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description The QSC RMX1450a Low-Z Power Amplifier is designed to meet the needs of sound contractors. It features PowerLight technology with specific features to meet the requirements of fixed installations. High output power, versatile loading options, high thermal capacity and proven reliability, make this amp a suitable solution to any permanently installed sound system. The amp provides direct 70V capability ranging from 250-1000W per channel for distributed audio systems. It is equipped with many contractor-specific features including 1 dB detented gain controls for repeatable settings and a custom security cover for tamper-proof installation. Active inrush limiting eliminates AC inrush current, cutting the need for power sequencers. It also includes an HD15 Data Port connector to interface with Q-Sys and QSControl networked audio systems, for remote amplifier monitoring and control. This amplifier gives you tighter bass and clean, transparent highs, cuts waste heat, boosts reliability, and gets rid of unwanted noise and hum. PowerLight is a switching power supply technology providing ample current to the audio power circuitry by charging the supply rails 230,000 times a second through an ultra-low impedance circuit. Thus, the audio signal is never starved prematurely and remains crisp and clean. With each channel direct-driving 70V loads up to 600W, or 1200W on a 140V line in bridged mono, and having the right connector set for ease of wiring, the CX602V is suitable for distributed-line installation applications. - Exclusive PowerWave switch-mode power supply technology for high performance and compact size
- Custom integrated security cover for tamper-proof installations
- Variable speed fan for low noise
- 1 dB detented gain controls for fast and accurate gain settings
- Active Inrush Limiting eliminates AC inrush current, removing the need for expensive power sequencers

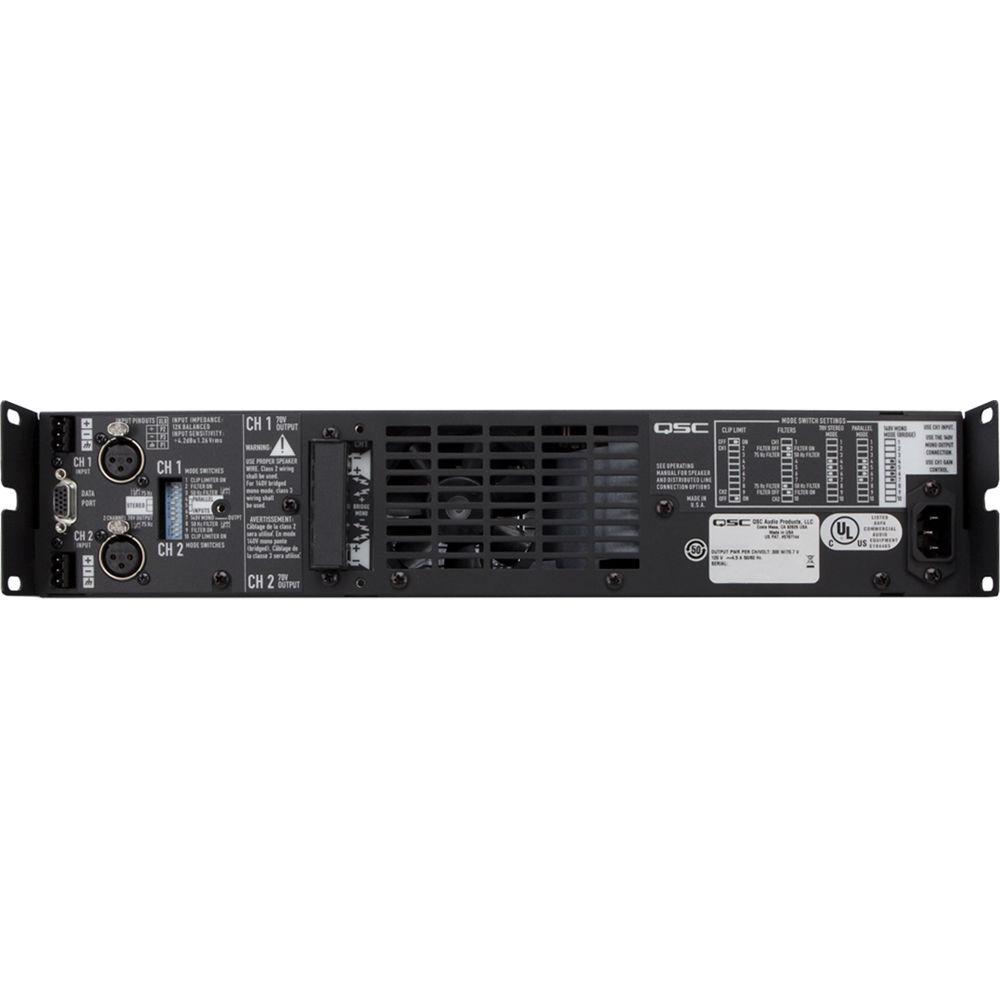

- XLR and detachable Euro-style input connectors
- HD15 DataPort connector for QSControl computer control or signal processing accessories
- Dip switch control for clip limiters, high-pass filters, bridge-mono and parallel operation
- Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (50 or 75 Hz)

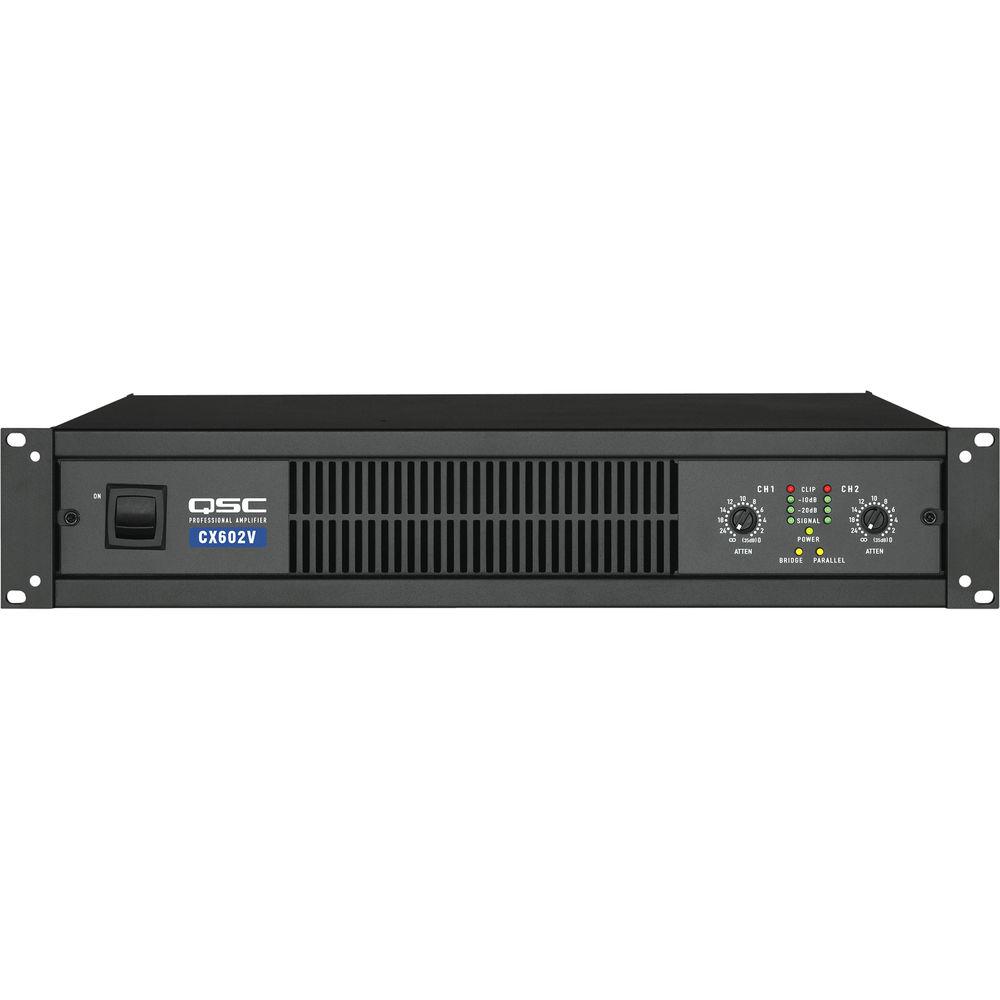

- Comprehensive front panel indicators including signal, clip, protect and QSC's bridge-mono and parallel-input LEDs
- Barrier strip output connector
- Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
- Comprehensive protection circuitry including DC, infrasonic, thermal overloadand short circuit protection
- Compact size - all models only 2 RU and 14" deep for reduced rack cost and floor space
- Lightweight - only 21 pounds (9.5 kg) for easy racking and shipping
UPC: 684284003560 In the Box QSC CX-602V Power Amplifier (70V) Power Cord Limited 3-Year Warranty Extendable by Additional 3-Year Service Contract Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC CX-602V Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC CX602V Specs | Power Rating | Stereo mode (both channels driven)
8 Ω FTC 20 to 20,000 Hz at 0.05% THD: 550 W
70V, 20 Hz-20 kHz, 0.05% THD: 400 W
70 V, 1 kHz, 0.05% THD: 440 W
70 V, 1 kHz, 1% THD: 600 W
Bridged, mono mode:
16Ω, 20 Hz-20 kHz, 0.1% THD:1100 W
140 V, 20 Hz-20 kHz, 0.05% THD:800 W
140 V, 1 kHz, 0.05% THD:880 W
140 V, 1 kHz, 1% THD:1200 W
Noise, 20 Hz-20 kHz:-106 dB
Input Sensitivity @ 8 ohms: 1.26 V RMS
Maximum Voltage Gain: 35 dB
Output Circuitry Class: AB+B | | Signal-to-Noise Ratio | > -100 dB | | Distortion | SMPTE-IM: < 0.02% | | Frequency Response | 20 Hz to 20 kHz, ±0.2 dB | | Damping Factor | Greater than 500 | | Input Impedance | 6 kΩ unbalanced, 12 kΩ balanced | | Input Clipping Level | 10 V RMS(+22 dBu) | | Cooling | Variable-speed fan, rear-to-front air flow | | Connectors | Input: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel)>BR /> Output: Safety-shrouded barrier strip
| | Amplifier Protection | Full short circuit, open circuit, thermal, ultrasonic, and RF protection.
Stable into reactive or mismatched loads. | | Overload Protection | On/off muting, DC-fault power supply shutdown | | Thermal | Losses: 70 V + 70 V
Idle
165 BTU/hr, 40 kcal/hr
1/8 Power Pink Noise
1785 BTU/hr, 450 kcal/hr
1/3 Power Pink Noise
2260 BTU/hr, 570 kcal/hr
Full Power
2055 BTU/hr, 520 kcal/hr | | Circuit Type | Class AB | | Power Consumption | 8.7 A @ 1/8 power pink noise at 4Ω
1/3 of full power, pink noise (typical of program material with severe clipping) @ 13.0 A | | Power Requirements | 100, 120, 230 VAC at 50 to 60 Hz (factory configured) | | Dimensions (H x W x D) | 3.5 x 19.0 x 14" (89.0 x 482 x 356 mm)
2U | | Weight | 21 lb (9.5 kg) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.5 x 6.0" |
