User Manual for QSC E110 10" Two-Way Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the QSC E110 10" Two-Way Passive Loudspeaker
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC E110 10" Two-Way Passive Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

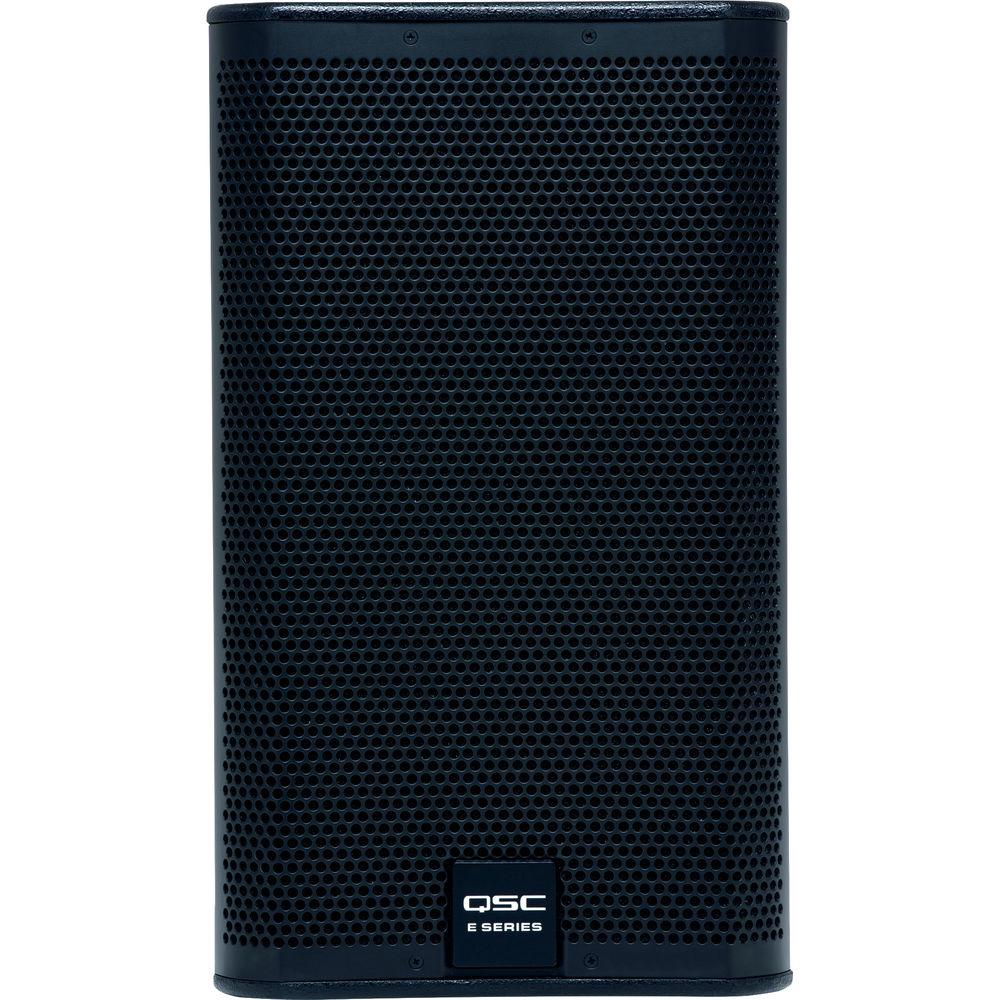

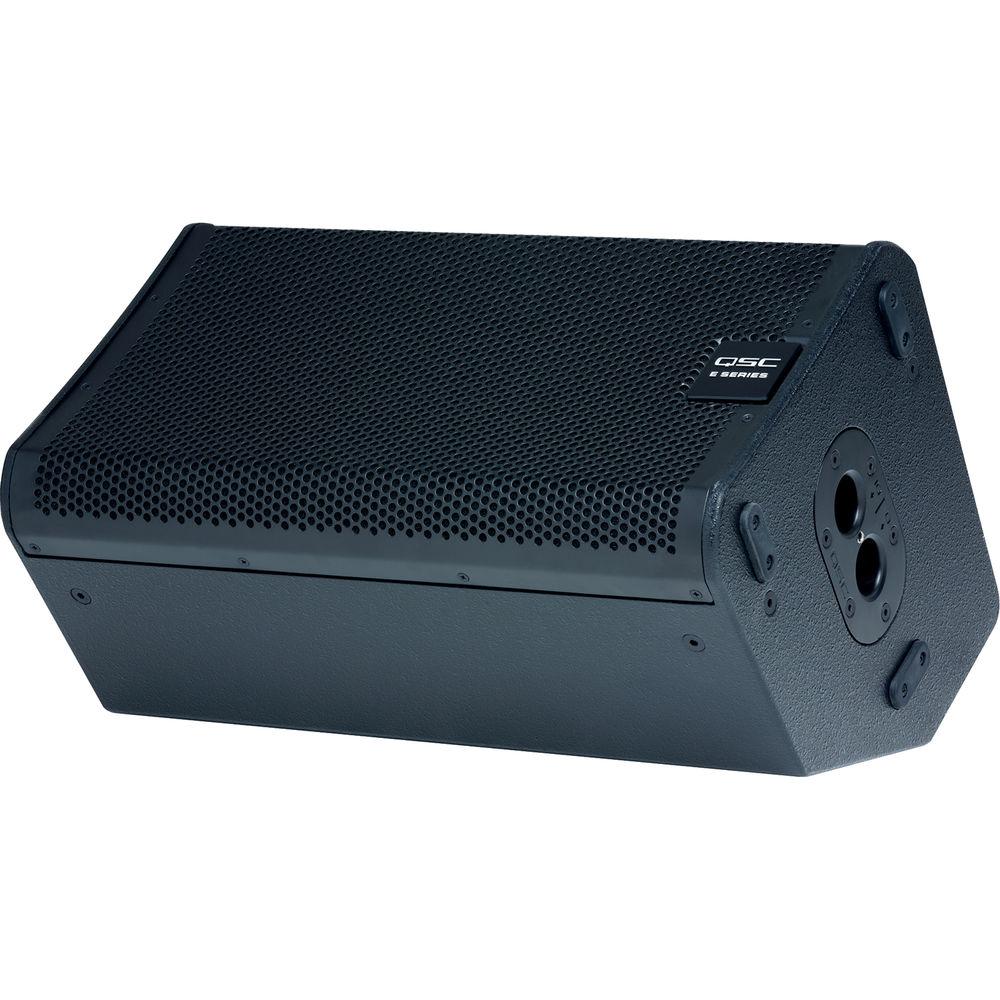

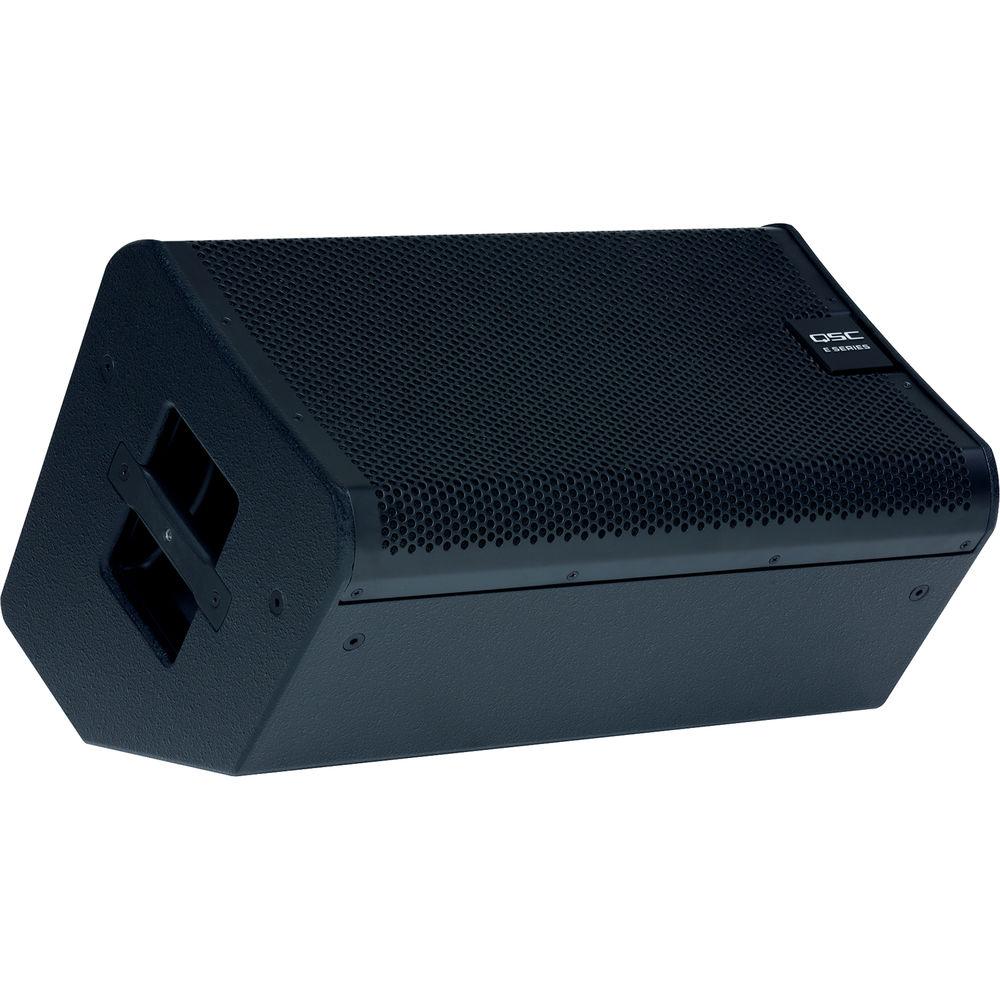

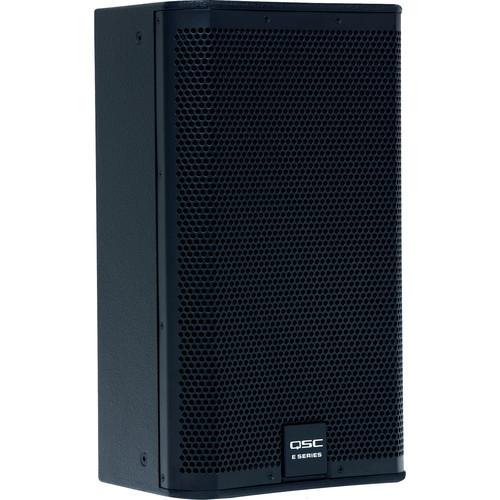

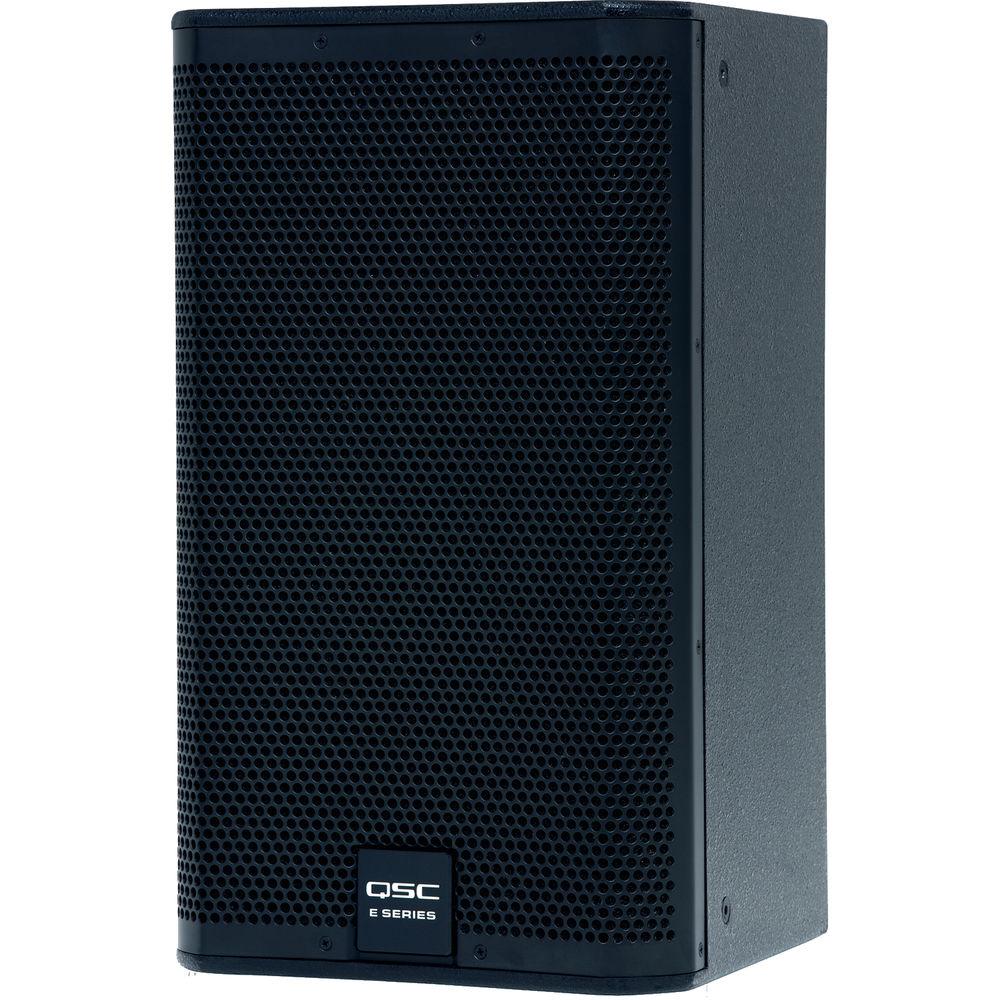

Product description QSC PA Speakers Buying Guide Read More The black QSC E110 is a compact, two-way loudspeaker with a 10” die cast frame woofer with a 2.5” voice-coil, housed in a multi-purpose enclosure for stage monitor or main PA deployment. It incorporates QSC DMT (Directivity Matched Transition) design with an 85° wide coverage. When used as a stage monitor, the E110 loudspeaker is angled up at 55°, allowing it to be placed near the performer when used on a crowded stage.
An all metal, dual angle, 35mm socket allows the loudspeaker to be mounted vertically on a pole or angled down by 10° to improve audience coverage and reduce rear wall reflections. Multiple mounting options using E-Series Yoke or M8 eyebolts (sold separately) are supported. Input connections include dual NL4 as well as screw terminal receptacles.
Like all speakers in the E-Series Entertainment System, the E110 is compatible with GXD, PLD amplifiers and TouchMix digital mixers, which afford advanced signal processing options to help fine-tune the performance of your speakers. The QSC E110 features a redesigned yoke for better mounting in permanent installations. -
- 300W continuous, 1200W peak
- E-Series Entertainment System offers advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grille
- Constructed of rugged plywood and coated in black, textured paint
- Dual angle pole socket
UPC: 684284071811 In the Box QSC E110 10" Two-Way Passive Loudspeaker (Black) Limited 3-Year Warranty Spec sheet PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC E110 10" Two-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC E110 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 300 W RMS
1200 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x Compression Driver with 1" / 25 mm Throat | | HF Voice Coil | 1.8" / 45 mm | | LF Driver | 1 x 10" / 25.4 cm Woofer | | LF Voice Coil | 2.5" / 64 mm | | | | Frequency Range | 68 Hz to 20 kHz | | Maximum SPL | 126 dB | | Coverage Angle | 85° H x 85° V | | Speaker Sensitivity | 95 dB | | | | Audio I/O | 2 x speakON NL4
1 x Barrier Strip | | | | Crossover | 1.8 kHz Full-Range Only | | | | Mounting | 4 x M8
1 x 1.38" / 35 mm Pole Socket (Dual Angle) | | Handles | 1 x Top | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 13.0 x 22.0 x 13.0" / 330.0 x 558.8 x 330.2 mm | | Weight | 44 lb / 20 kg | | | | Package Weight | 46.85 lb | | Box Dimensions (LxWxH) | 26.2 x 17.0 x 16.8" |
