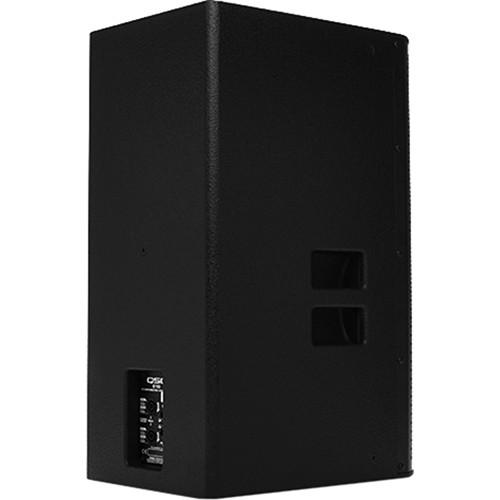

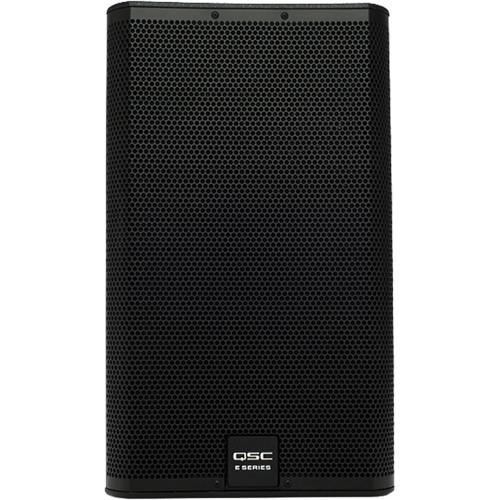

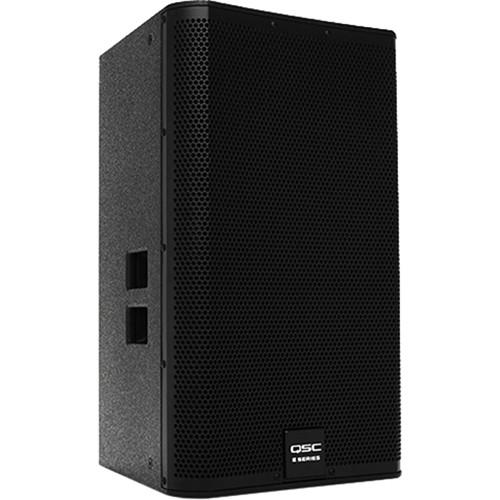

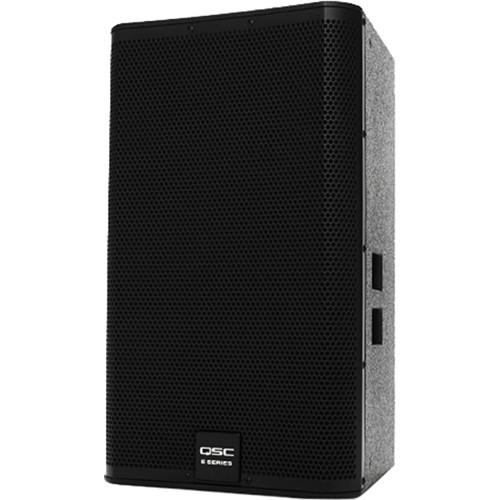

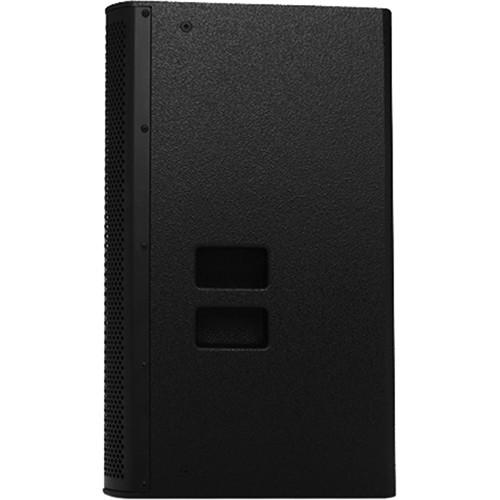

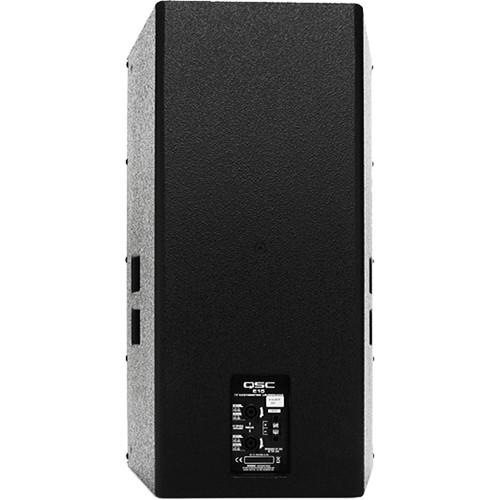

User Manual for QSC E115 15" Two-Way Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the QSC E115 15" Two-Way Passive Loudspeaker
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC E115 15" Two-Way Passive Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description The black QSC E115 is a trapezoidal, two-way loudspeaker, well suited for sound reinforcement applications including live performance, DJ and dance music, karaoke, and event production. The E115 requires an amplifier with a minimum of 500W continuous (2000W peak) to power the 15.0" woofer and 1.5" compression driver that combine to offer a frequency response of 55 Hz to 20 kHz (-6 dB) with a peak SPL 130 dB. QSC recommends the use of a speaker processor or a power amplifier with integrated DSP in order to set crossovers, limiting, and equalization to ensure the best performance. QSC's GXD or PLD amplifiers, as well as TouchMix digital mixers offer on-board DSP and factory-tuned presets, which provide settings for live sound reinforcement (with and without subwoofers), stage monitoring, dance music, and karaoke.
The 15mm, 11-ply enclosure provides a direct-match-transition (DMT) coverage angle of 75°, assuring that even distant listeners will be well covered. An all-metal, dual-angle, 35mm socket allows the loudspeaker to be mounted vertically on a pole or angled down by 10° to improve audience coverage, and reduce rear wall reflections. Multiple mounting options using E Series Yoke or M8 eyebolts (sold separately) are supported. Input connections include dual NL4 as well as screw terminal receptacles. -
- High-output, professional-quality sound with 500W continuous (2000W peak) power handling
- E-Series Entertainment System: advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- E-Series Entertainment System DSP tunings are now available for PLD and GXD processing amplifiers.
- Rugged tour-grade textured paint
- Foam-lined perforated steel grille
- Dual-angle pole socket
- Optional accessories include:
- Transport covers
- M10 eyebolt kit
UPC: 684284076618 In the Box QSC E115 15" Two-Way Passive Loudspeaker (Black) Limited 3-Year Warranty Quick start Guide PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC E115 15" Two-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC E115 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 500 W RMS
2000 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x Compression Driver with 1.5" / 38 mm Throat | | HF Voice Coil | 2.8" / 71.1 mm | | LF Driver | 1 x 15" / 38.1 cm Woofer | | LF Voice Coil | 3.5" / 88.9 mm | | | | Frequency Range | 43 Hz to 20 kHz -10 dB | | Frequency Response | 55 Hz to 20 kHz -6 dB | | Maximum SPL | 130 dB | | Coverage Angle | 75° H x 75° V | | Speaker Sensitivity | 97 dB | | | | Audio I/O | 2 x speakON NL4
1 x Barrier Strip | | | | Crossover | 1.6 kHz Full-Range Only | | | | Mounting | 1 x 1.4" / 35 mm Pole Socket (Dual Angle) | | Handles | 2 x Side | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 16.5 x 28.2 x 17.5" / 419.1 x 716.3 x 444.5 mm | | Weight | 68 lb / 30.8 kg | | | | Package Weight | 76.0 lb | | Box Dimensions (LxWxH) | 32.0 x 20.5 x 10.5" |
