User Manual for QSC E118SW E-Series 18" Passive Subwoofer Click to enlarge the picture
Contents of the user manual for the QSC E118SW E-Series 18" Passive Subwoofer
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC E118SW E-Series 18" Passive Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

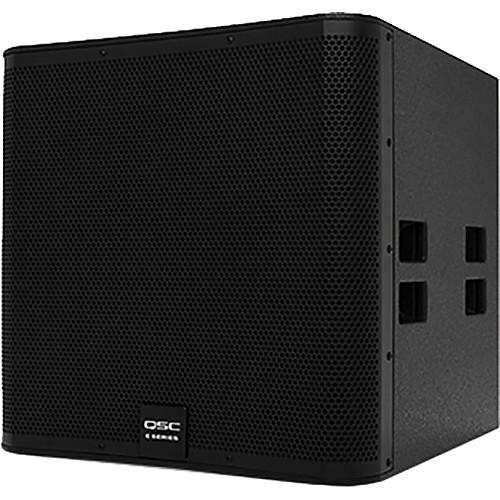

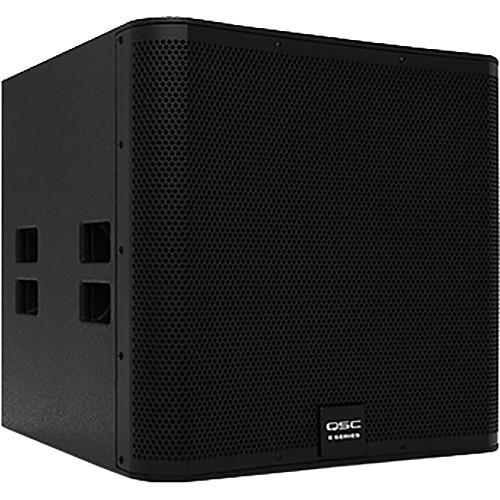

Product description The black QSC E118SW Passive Subwoofer is a high-performance direct radiation subwoofer, well suited for sound reinforcement applications including live performance, DJ and dance music, karaoke, and event production. The E118SW requires an amplifier with a minimum of 800W continuous (3200W peak) to power the 18" woofer, which offers a frequency response of 37 to 230 Hz (-6 dB) with a peak SPL 133 dB.
QSC recommends the use of a speaker processor or a power amplifier with integrated DSP in order to set crossovers, limiting, and equalization to ensure the best performance. QSC's GXD or PLD amplifiers, as well as TouchMix digital mixers offer on-board DSP and factory-tuned presets, which provide settings for live sound reinforcement, stage monitoring, dance music, and karaoke.

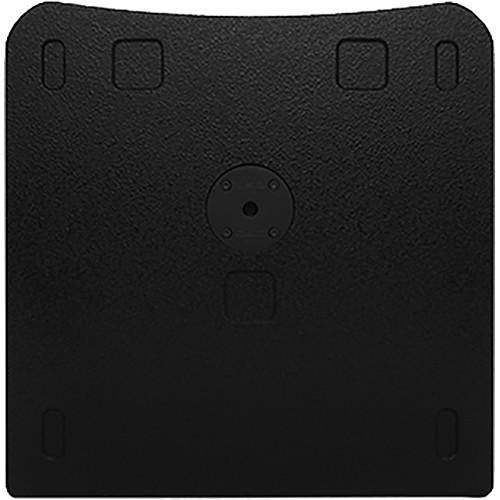

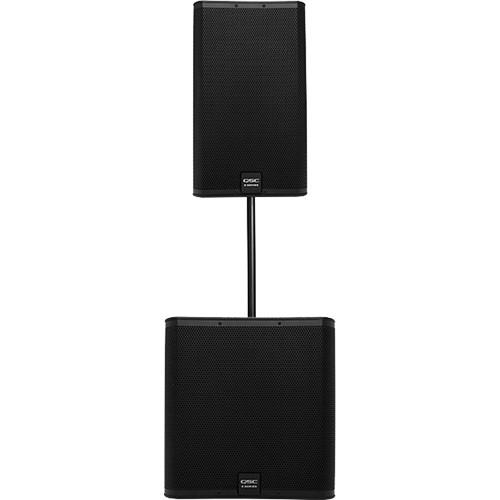

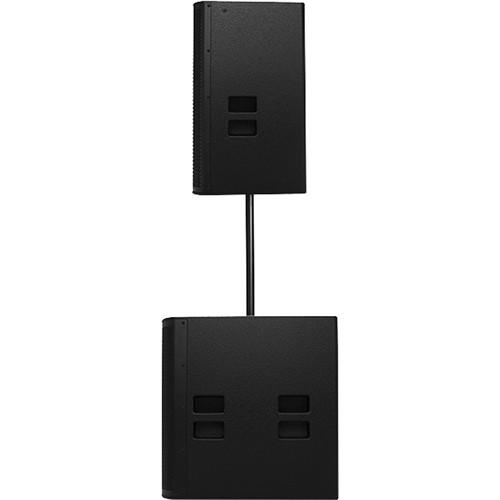

The rugged plywood enclosure is coated in black textured paint and features a heavy-duty grille lined with foam for protection. A threaded, M20 pole socket and speaker pole are provided for sub/satellite use with any of the E-Series two-way full-range loudspeakers. For portable applications, the E118SW includes attachment points for four optional casters. - 800W continuous, 3200W peak
- E-Series Entertainment System offers advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- Foam-lined perforated steel grille
- Constructed of rugged plywood and coated in black, textured paint
UPC: 684284076625 In the Box QSC E118SW E-Series 18" Passive Subwoofer (Black) Speaker Pole Limited 3-Year Warranty Quick start Guide PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC E118SW E-Series 18" Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC E118 Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 800 W RMS
3200 W Peak | | System Impedance | 4 Ohms (Nominal) | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | LF Voice Coil | 4" / 10 cm | | | | Frequency Range | 32 Hz to 230 Hz -10 dB | | Frequency Response | 37 Hz to 230 Hz -6 dB | | Maximum SPL | 133 dB | | Speaker Sensitivity | 98 dB | | | | Audio I/O | 2 x speakON NL4

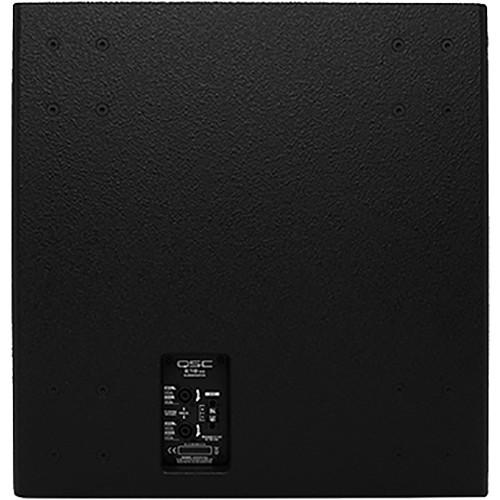

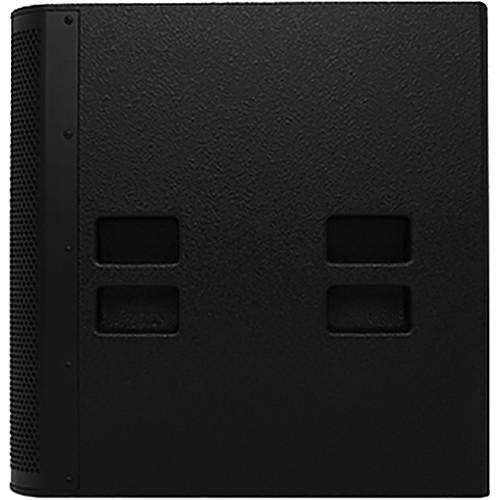

1 x Barrier Strip | | | | Mounting | 1 x M20 (Top) | | Handles | 4 x Side | | Construction Material | Metal Grille, Plywood | | Dimensions | 23.0 x 24.0 x 24.0" / 59.0 x 62.0 x 61.0 cm | | Weight | 94 lb / 43 kg | | | | Package Weight | 106.2 lb | | Box Dimensions (LxWxH) | 28.3 x 28.0 x 27.0" |
