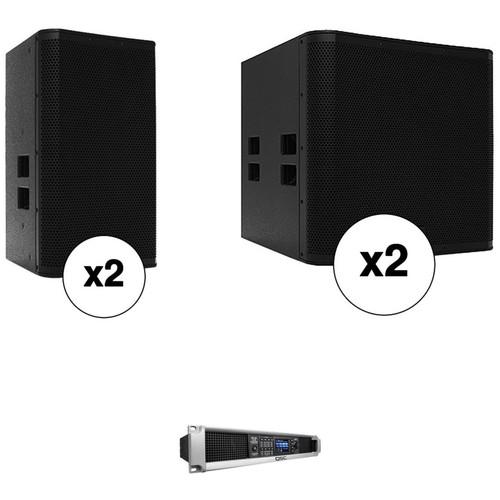

Product description The QSC E12 / E18SW System combines two E112 12" two-way loudspeakers with two E118SW 18" subwoofers and a PLD4.3 processing amplifier to create a turnkey sound reinforcement solution for clubs, bars, houses of worship, touring bands, and mobile DJs. - 2 x QSC E112 12" Two-Way Passive Loudspeaker (Black) The black QSC E112 is a trapezoidal, two-way loudspeaker, well suited for sound reinforcement applications including live performance, DJ and dance music, karaoke, and event production. The E112 requires an amplifier with a minimum of 400W continuous (1600W peak) to power the 12" woofer and 1" compression driver that combine to offer a frequency response of 64 Hz to 20 kHz (-6 dB) with a peak SPL of 128 dB. QSC recommends the use of a DSP speaker processor or a power amplifier with integrated DSP in order to set crossovers, limiting, and equalization to ensure the best performance. QSC's GXD or PLD amplifiers, as well as TouchMix digital mixers offer on-board DSP and factory-tuned presets, which provide settings for live sound reinforcement (with and without subwoofers), stage monitoring, dance music, and karaoke.
The 15mm, 11-ply enclosure provides a direct-match-transition (DMT) coverage angle of 85°, which is suitable for most medium and medium-to-long-throw applications. An all-metal, dual-angle, 35mm socket allows the loudspeaker to be mounted vertically on a pole or angled down by 10° to improve audience coverage and reduce rear wall reflections. Multiple mounting options using E Series Yoke or M8 eyebolts (sold separately) are supported. Input connections include dual NL4 as well as screw terminal receptacles. -
- High-output, professional-quality sound with 400W continuous (1600W peak) power handling
- E-Series Entertainment System: advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- E-Series Entertainment System DSP tunings are available for PLD and GXD processing amplifiers.
- Rugged tour-grade textured paint
- Foam-lined perforated steel grille
- Dual-angle pole socket
- Optional accessories include:
- Transport covers
- M10 eyebolt kit
UPC: 684284076601 - 2 x QSC E118SW E-Series 18" Passive Subwoofer (Black) The black QSC E118SW Passive Subwoofer is a high-performance direct radiation subwoofer, well suited for sound reinforcement applications including live performance, DJ and dance music, karaoke, and event production. The E118SW requires an amplifier with a minimum of 800W continuous (3200W peak) to power the 18" woofer, which offers a frequency response of 37 to 230 Hz (-6 dB) with a peak SPL 133 dB.
QSC recommends the use of a speaker processor or a power amplifier with integrated DSP in order to set crossovers, limiting, and equalization to ensure the best performance. QSC's GXD or PLD amplifiers, as well as TouchMix digital mixers offer on-board DSP and factory-tuned presets, which provide settings for live sound reinforcement, stage monitoring, dance music, and karaoke.
The rugged plywood enclosure is coated in black textured paint and features a heavy-duty grille lined with foam for protection. A threaded, M20 pole socket and speaker pole are provided for sub/satellite use with any of the E-Series two-way full-range loudspeakers. For portable applications, the E118SW includes attachment points for four optional casters. - 800W continuous, 3200W peak
- E-Series Entertainment System offers advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- Foam-lined perforated steel grille
- Constructed of rugged plywood and coated in black, textured paint
UPC: 684284076625 - QSC PLD4.3 Processing Amplifier The QSC PLD4.3 Processing Amplifier from PLD Series is designed specifically for the needs of portable and production sound system users. It provides efficient, robust, and high-fidelity power to drive multiple channels and configurations of loudspeakers while simultaneously deploying sophisticated digital processing with minimal operator complexity. This powerful and lightweight 4-channel amplifier with onboard, advanced DSP has the capability to configure and combine channels in various ways to drive a wide range of loudspeaker systems.The PLD4.3 Processing Amplifier features Flexible Amplifier Summing Technology (FAST) that actively distributes the total amplifier power in various combinations across 1, 2, 3, or all 4 outputs. This flexibility allows PLD Series amplifiers to drive (for example) 4 full-range loudspeakers or subwoofers; a high-power subwoofer and a bi-amplified speaker; a single high-power full-range loudspeaker and subwoofer combo; or multiple power-hungry subwoofers from a single, very high output mono-block.This amplifier uses QSC fourth generation class-D power amp design in combination with a custom power stage utilizing a purpose-built output device. This MOSFET device provides high voltage operation without needing a full bridge output and offers good audio quality due to co-location of the semiconductors. Additionally, it benefits from the PowerLight power supply, further enhanced with PFC (Power Factor Correction) that aligns the current waveform with the AC mains voltage waveform. PFC enables this amplifier to draw current from the wall in an efficient and controlled manner resulting in power from a single standard AC breaker. Additionally, it offers multi-stage sleep modes, saving energy when possible without ever sacrificing performance. The result is a powerful and flexible platform that offers low weight and efficiency.The PLD4.3 Processing Amplifier also doubles as a loudspeaker processor. The close integration of processing and amplification allows the DSP to monitor and respond to amplifier behavior, making dynamics processing accurate and effective. This synergistic approach employs both RMS and Peak Limiters that allow the combination of amplifier and loudspeaker to produce more output without being pushed to distortion or destruction.In addition to the dynamics processing, the onboard DSP offers 4 channels of crossover filters, parametric EQ, and alignment delay - everything needed to optimize a loudspeaker system. The amplifier also offers Intrinsic Correction, a combination of IIR and FIR Filtering and loudspeaker processing methodology. Intrinsic Correction compensates for the non-linearities in loudspeaker array and horn design and results in good performance from your QSC loudspeakers (sold separately).The on-board processing is managed and stored as presets, with 20 factory presets for the most common loudspeaker applications. For great customization, the built-in Preset Wizard streamlines amplifier setup and provides loudspeaker selection of passive loudspeakers (sold separately).With 4 channels of amplification plus drive rack signal processing in just 2RU, this amplifier replaces equipment taking up as much as 3 times the rack space.With a dedicated front panel UI complete with LED meters and indicators, a 400 x 240 TFT color display, a rotary encoder and ergonomic navigation buttons, this amplifier provides an intuitive interface for the user to control the system. The complete system can be set up in mere minutes.
- FAST (Flexible Amplifier Summing Technology) drives most any loudspeaker system or configuration by distributing total amplifier power across 1, 2, 3, or all 4 channels
- 4 channels of full function onboard loudspeaker DSP with crossover and parametric EQ filters, limiting and alignment delay eliminate the need for outboard loudspeaker processors
- Powerful Intrinsic Correction processing maximizes the sonic performance of QSC loudspeakers
- 20 factory preset configurations that can be modified and stored in the 50 user presets
- PowerLight universal switch mode power supply with PFC for efficiency, good audio performance, and low weight
- 4 input XLR connectors, and 6 NL-4 output connectors
- Integrated front panel with channel select and mute buttons, input and output LED metering, 400 x 240 LCD, intuitive navigation buttons, LED power button and indicator, and cast aluminum handles
- Preset Wizard simplifies amplifier configuration providing loudspeaker selection from a list of passive speakers
UPC: 684284060563 In the Box - 2 x E112 12" Two-Way Passive Loudspeaker (Black) yzbzfwae
- Limited 3-Year Warranty
- 2 x E118SW E-Series 18" Passive Subwoofer (Black)
- PLD4.3 Processing Amplifier yzbzfwae
Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC E12 E18SW System Stereo Tops and Subs with 4-Channel Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x QSC E112 12" Two-Way Passive Loudspeaker (Black)
| | | Configuration | Passive 2-Way | | Total Power Capacity | 400 W RMS
1600 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x Compression Driver with 1" / 25.4 mm Throat | | HF Voice Coil | 1.8" / 44.5 mm | | LF Driver | 1 x 12" / 30.5 cm Woofer | | LF Voice Coil | 3" / 76.2 mm | | | | Frequency Range | 46 Hz to 20 kHz -10 dB | | Frequency Response | 64 Hz to 20 kHz -6 dB | | Maximum SPL | 128 dB | | Coverage Angle | 85° H x 85° V | | Speaker Sensitivity | 96 dB | | | | Audio I/O | 2 x speakON NL4
1 x Barrier Strip | | | | Crossover | 1.8 kHz Full-Range Only | | | | Mounting | 1 x 1.4" / 35 mm Pole Socket (Dual Angle) | | Handles | 2 x Side | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 14.2 x 24.2 x 14.6" / 360.7 x 614.7 x 370.8 mm | | Weight | 51 lb / 23.1 kg | | | | Box Dimensions (LxWxH) | 28.5 x 18.5 x 18.2" | - 2 x QSC E118SW E-Series 18" Passive Subwoofer (Black)
| | | Configuration | Passive Subwoofer | | Total Power Capacity | 800 W RMS
3200 W Peak | | System Impedance | 4 Ohms (Nominal) | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | LF Voice Coil | 4" / 10 cm | | | | Frequency Range | 32 Hz to 230 Hz -10 dB | | Frequency Response | 37 Hz to 230 Hz -6 dB | | Maximum SPL | 133 dB | | Speaker Sensitivity | 98 dB | | | | Audio I/O | 2 x speakON NL4
1 x Barrier Strip | | | | Mounting | 1 x M20 (Top) | | Handles | 4 x Side | | Construction Material | Metal Grille, Plywood | | Dimensions | 23.0 x 24.0 x 24.0" / 59.0 x 62.0 x 61.0 cm | | Weight | 94 lb / 43 kg | | | | Box Dimensions (LxWxH) | 28.3 x 28.0 x 27.0" | - QSC PLD4.3 Processing Amplifier
| Channels | 4 Channels Continuous:8 Ω: 625 W4 Ω: 625 W2 Ω: 625 W2 Channels Continuous:8 Ω: 1250 W4 Ω: 1200 W2 Ω: 1200 W1 Channel Continuous:8 Ω: 2500 W4 Ω: 2500 W2 Ω: 2500 W1 Ω: 2500 W 1-1.0 kHz sine wave, 1% THD, 1 channel driven | | Distortion | Typical Distortion:8 Ω: 0.01 to 0.03%4 Ω: 0.03 to 0.06%Maximum Distortion:4 to 8 Ω: 1.0%20 Hz to 15 kHz +/- 0.2 dB | | Frequency Response | 20 Hz to 20 kHz + 0.2 dB-0.7 dB (8 Ω) | | | | Output | Unweighted Output Unmuted: -101 dBWeighted Output Muted: -109 dB | | Gain | 38.4 dB (1.2 V setting) | | Damping Factor | > 150 | | Input Impedance | > 10 k, balanced or unbalanced | | Maximum Input Level | 3.9 V Setting: 12.28 V (+24 dBu)1.2 V Setting: 3.88 V (+14 dBu) | | Controls and Indicators | Front:PowerChannel mute buttonsChannel select buttonsChannel input signal and clip LED indicatorsChannel output and limit LED metersHome, enter, exit, gain navigation buttonsControl knobRear:AC power disconnect | | Input Connectors | Female XLR | | Output Connectors | NL4 | | Amplifier | Amplifier and load protection: Short circuit, open circuit, thermal, RF protection. On / Off muting, DC fault shutdown, active inrush limiting, input current limiting | | AC Power | Input: Universal power supply 100 to 240 VAC, 50 to 60 Hz | | Agency Approval | UL, CE, RoHS / WEEE compliant, FCC Class A (conducted and radiated emissions) | | Dimensions (H x W x D) | 3.50 x 19.00 x 16.00" (8.89 x 48.26 x 40.64 cm) | | Weight | 21.00 lb (9.53 kg) | | | | Box Dimensions (LxWxH) | 23.2 x 20.2 x 6.5" |
