User Manual for QSC E15 15" Two-Way Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the QSC E15 15" Two-Way Passive Loudspeaker
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC E15 15" Two-Way Passive Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

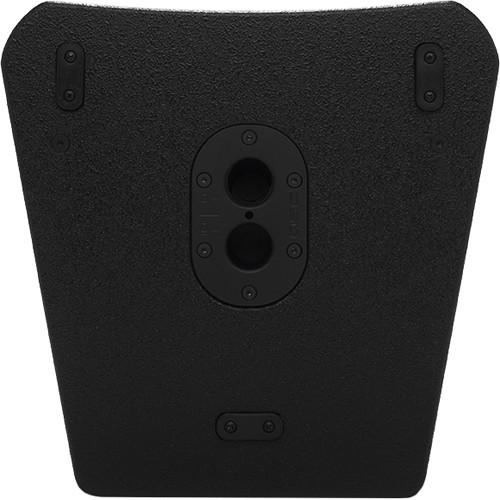

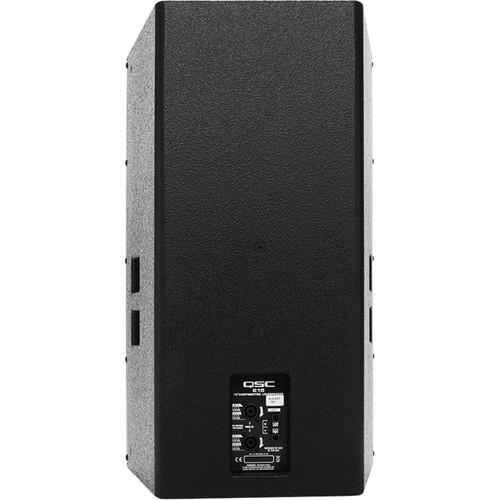

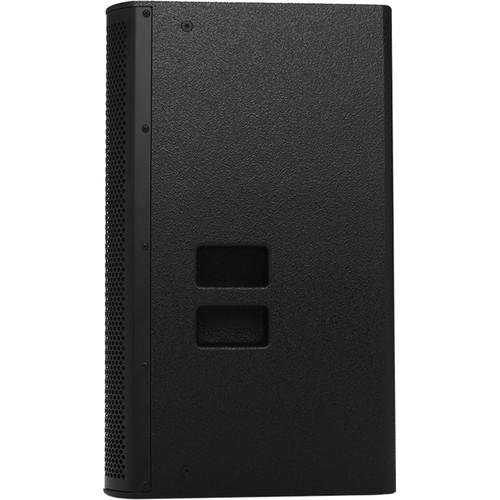

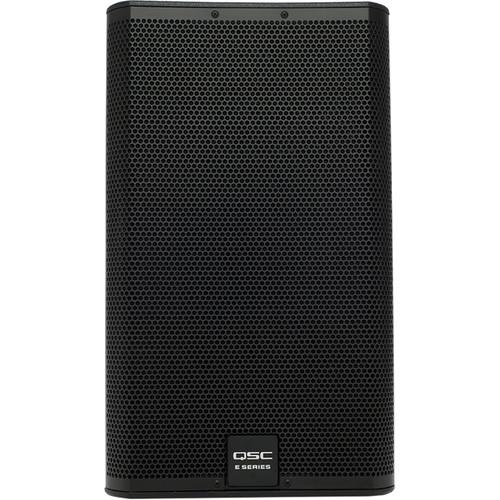

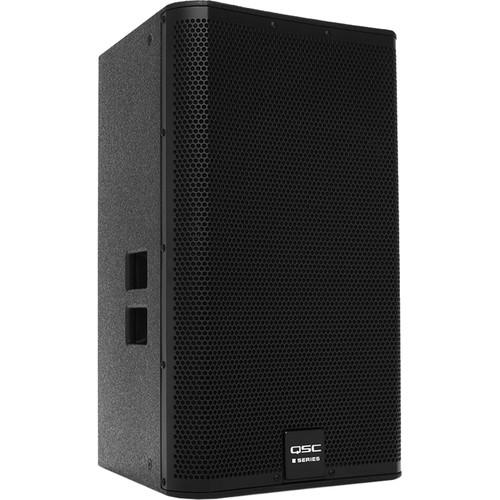

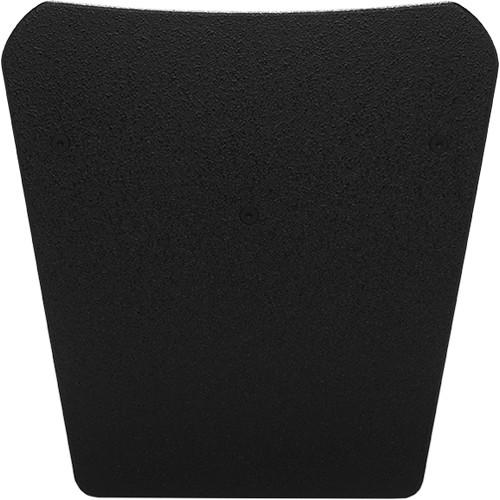

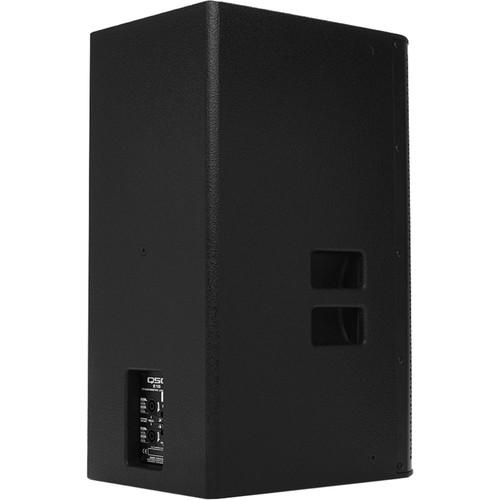

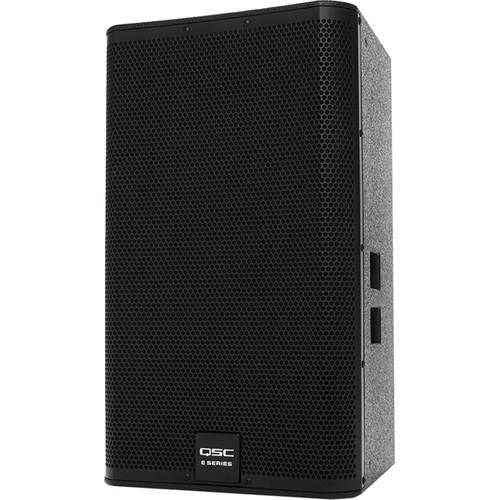

Product description QSC PA Speakers Buying Guide Read More The black E15 15” Two-Way Passive Loudspeaker from QSC is a trapezoidal, two-way loudspeaker using a 15”, 500W, die cast aluminum frame woofer with a 3.5” voice coil. It is designed for use when high-power and powerfull low-end are needed from a full-range loudspeaker. A 2.8” compression driver attached to the 75° DMT waveguide assures that even distant listeners will be well covered.An all metal, dual-angle, 35mm socket allows the loudspeaker to be mounted vertically on a pole or angled down by 10° to improve audience coverage, and reduce rear wall reflections. Multiple mounting options using E Series Yoke or M8 eyebolts (sold separately) are supported. Input connections include dual NL4 as well as screw terminal receptacles. - 500W continuous, 2000W peak
- E Series Entertainment System offers advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Constructed of rugged plywood and coated in black, textured paint
UPC: 684284067500 In the Box QSC E15 15" Two-Way Passive Loudspeaker (Black) Limited 3-Year Warranty Spec sheet PDF 744.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC E15 15" Two-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC E15 Specs | Configuration | 1 x 15" (38 cm), 2-way, non-powered | | Frequency Range | 55 Hz to 20 kHz (-6 dB) | | Power Capacity | 500 W (continuous) / 2000 W (peak) | | Sensitivity | 97 dB, 1 W @ 3.2' (1.0 m) | | Coverage Angle | 75° conical | | Output | 130 dB | | Drivers | LF: 15" (38 cm) driver with 3.5" (89 mm) voice coil
HF: 1.5" (38 mm) exit, 2.8" (71 mm) voice coil, compression driver | | Nominal Impedance | 8 Ohms | | Crossover | Full-range only, 1.55 kHz | | Input Connectors | 2 x NL4
1 x barrier strip | | Enclosure | Trapezoidal plywood. Two side mounted handles. Perforated, powder-coated steel grille with foam lining. | | Suspension | 6 x M8 suspension points, dual angle, 35 mm pole-socket | | Dimensions | 16.5 x 28.2 x 17.5" (42 x 71.6 x 44.5 cm) | | Weight | 68 lb (31 kg) | | | | Package Weight | 76.5 lb | | Box Dimensions (LxWxH) | 32.7 x 20.5 x 20.0" |
