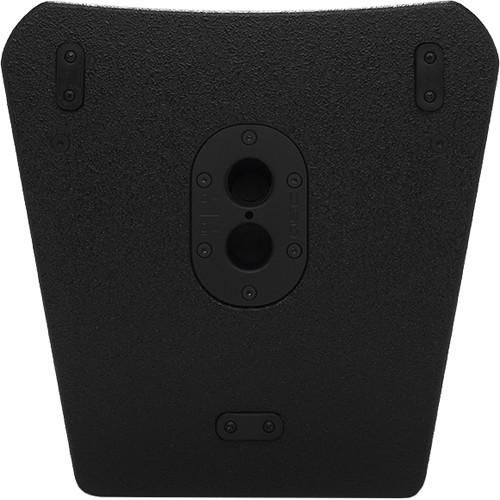

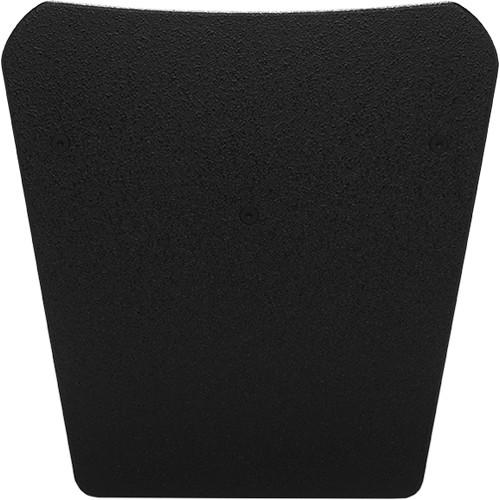

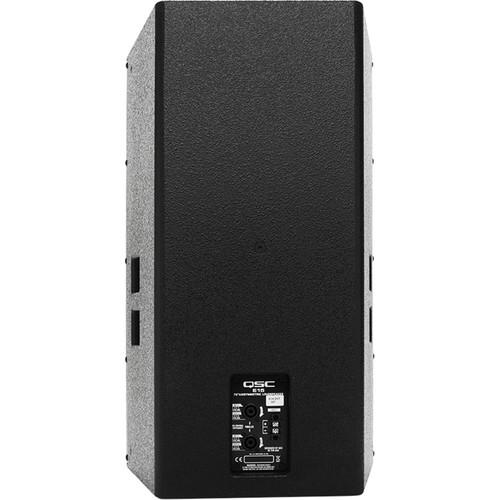

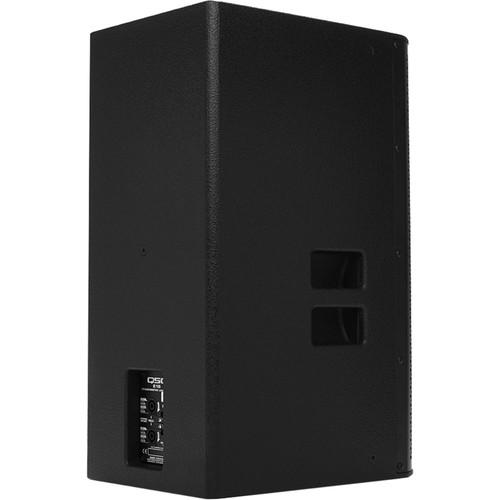

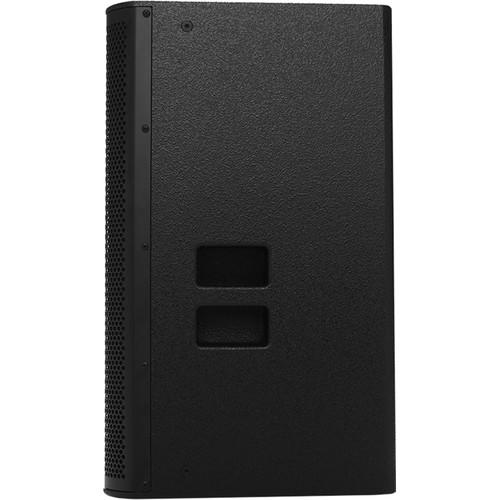

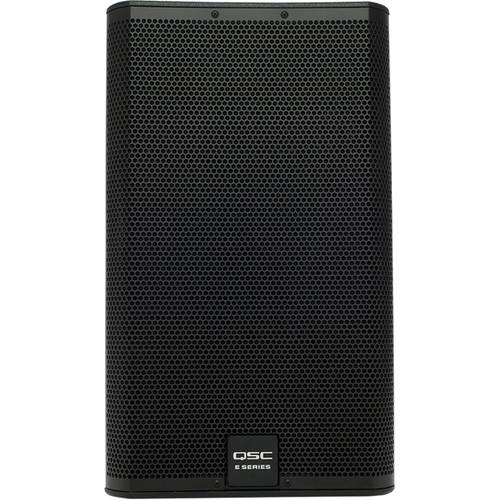

Product description QSC PA Speakers Buying Guide Read More This B&H Kit combines a pair of black QSC E15 - 15" Two-Way Passive Loudspeakers and a professional 4500W power amplifier with DSP to create the primary components of a PA system, well suited for live sound reinforcement, stage monitoring, dance music, and karaoke applications. - 2 x QSC E15 15" Two-Way Passive Loudspeaker (Black) The black E15 15” Two-Way Passive Loudspeaker from QSC is a trapezoidal, two-way loudspeaker using a 15”, 500W, die cast aluminum frame woofer with a 3.5” voice coil. It is designed for use when high-power and powerfull low-end are needed from a full-range loudspeaker. A 2.8” compression driver attached to the 75° DMT waveguide assures that even distant listeners will be well covered.An all metal, dual-angle, 35mm socket allows the loudspeaker to be mounted vertically on a pole or angled down by 10° to improve audience coverage, and reduce rear wall reflections. Multiple mounting options using E Series Yoke or M8 eyebolts (sold separately) are supported. Input connections include dual NL4 as well as screw terminal receptacles.
- 500W continuous, 2000W peak
- E Series Entertainment System offers advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Constructed of rugged plywood and coated in black, textured paint

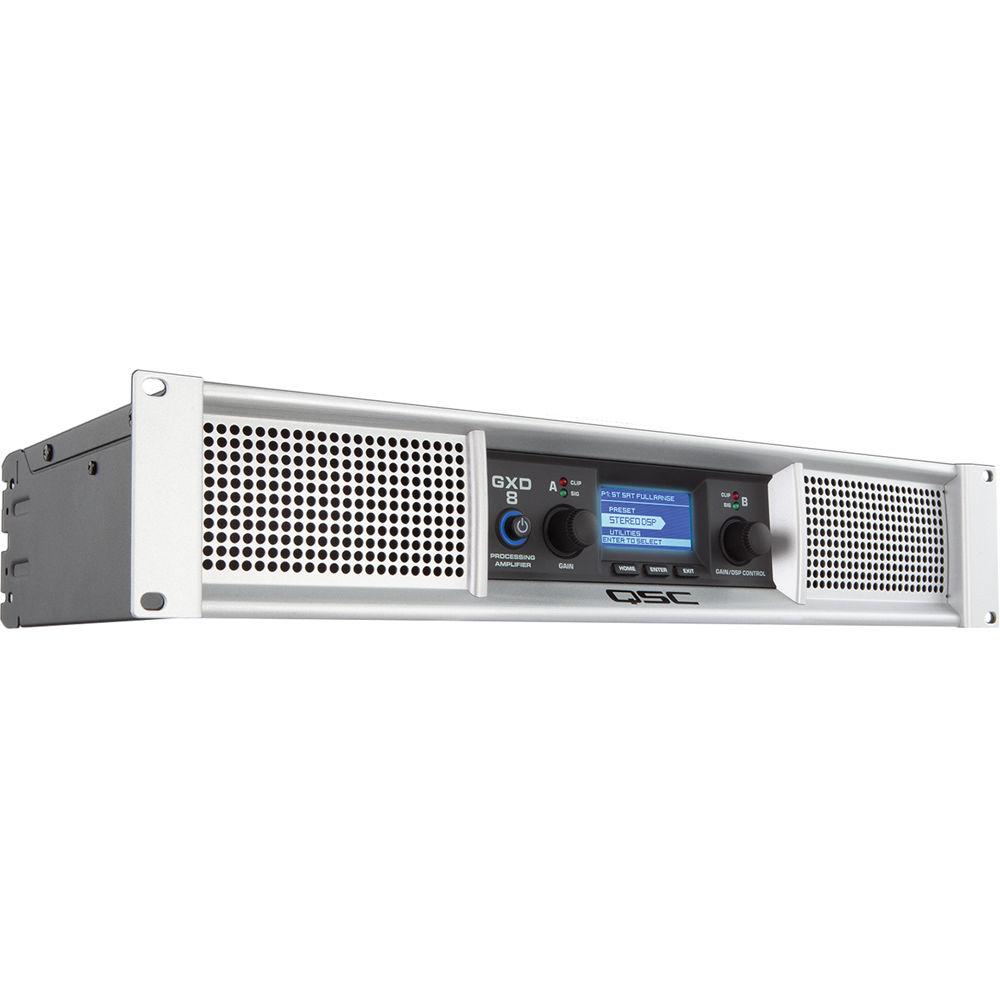

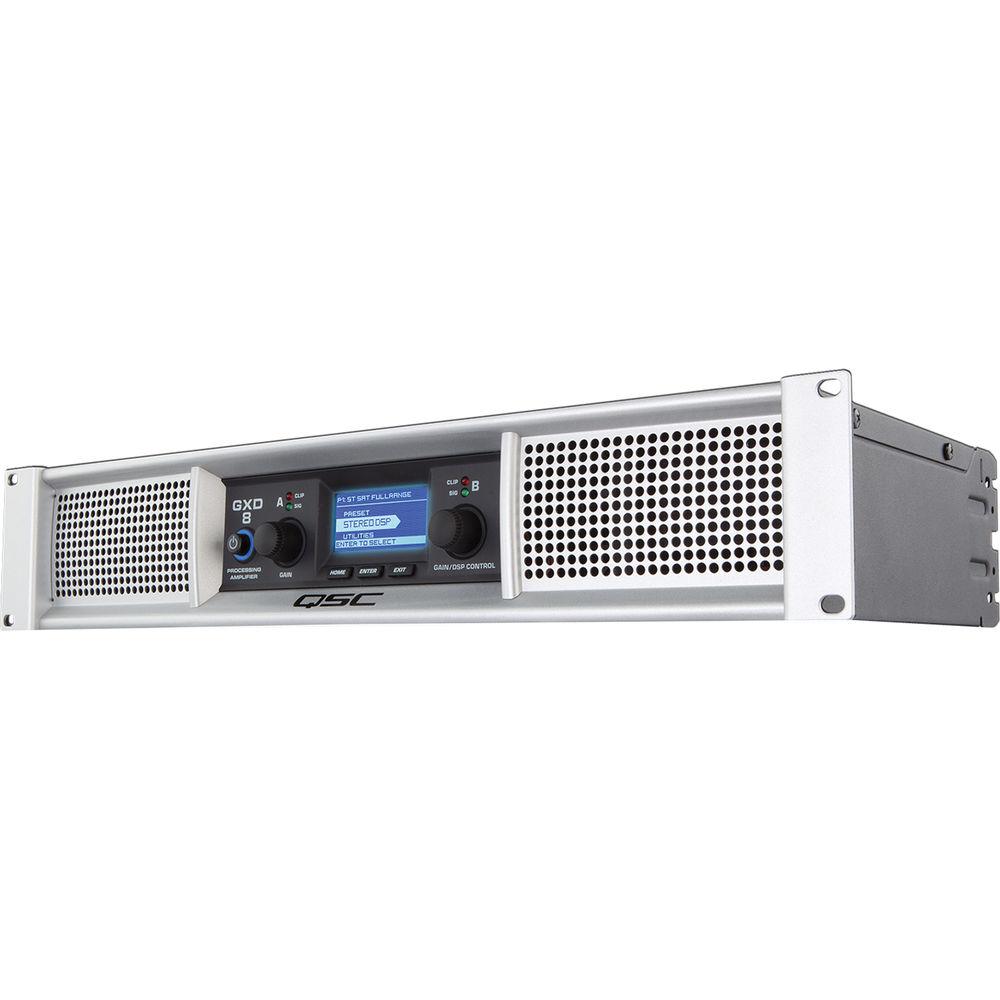

UPC: 684284067500 - QSC GXD 8 Professional 4500W Power Amplifier with DSP The GDX 8 from QSC is a professional power amplifier designed for professional PA systems utilizing speakers with 4 and 8 ohm loads and a maximum output of 4500W. The GDX 8 employs a class D output stage with a universal power supply for high performance and efficiency, while keeping the unit lightweight at 13.2 lbs. The integrated DSP section includes High and Low-Pass filters (24 dB LR), 4-band parametric equalizer, signal alignment delay, and RMS/Peak speaker protection limiting. The parallel XLR and 1/4" TRS input connectors offer broad compatibility with convenient loop-through capabilities, while the professional binding posts and NL4 connector provide mono and bi-amped speaker connections. In addition to the limiting offers on the inputs and outputs, the GDX employs smart speaker protection by providing settings for the loudspeaker's continuous output and impedance (4 ohm or 8 ohm). The GDX 8 ships with a standard IEC power cord.
-
- High peak output power with up to 4500W
- Power levels matched to popular loudspeakers and optimized for maximum headroom into 4-ohm and 8-ohm speaker systems
- Class-D output stage with a universal power supply for high performance and efficiency
- Extensive built-in loudspeaker processing, includes high & low-pass filters, 4-band PEQ, limiting, and delay
- Large LCD display simplifies amplifier setup and indicates amp status
- Inputs: Parallel XLR and 1/4” TRS connectors for compatibility with any source while providing convenient loop-thru capability
- Precision rotary encoders for gain and DSP parameter control
- Outputs: Professional binding post and NL4 connectors (compatible with NL2) provide for mono and bi-amp speaker connections
- Digital Limiting automatically protects the amplifier from damage due to temperature rise or overdrive
- Adjustable speaker protection to match your loudspeaker’s power and impedance
- Front panel LEDs indicate signal presence, input overload, and amplifier clipping

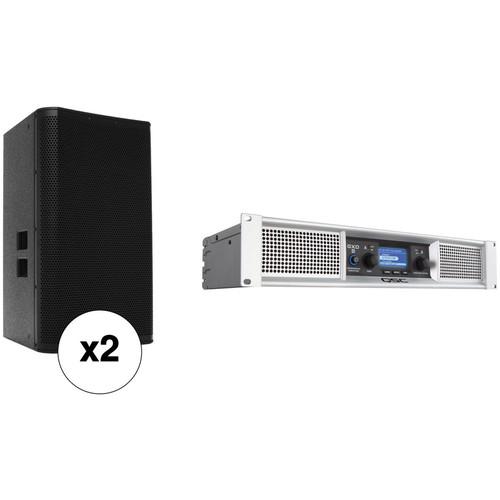

UPC: 684284064967 In the Box - 2 x E15 15" Two-Way Passive Loudspeaker (Black) eafxfdqcaycuaxszzqvacuvxf
- Limited 3-Year Warranty
- GXD 8 Professional 4500W Power Amplifier with DSP
Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC E15 Kit with Pair of 15" Passive Loudspeakers and Power Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x QSC E15 15" Two-Way Passive Loudspeaker (Black)
| Configuration | 1 x 15" (38 cm), 2-way, non-powered | | Frequency Range | 55 Hz to 20 kHz (-6 dB) | | Power Capacity | 500 W (continuous) / 2000 W (peak) | | Sensitivity | 97 dB, 1 W @ 3.2' (1.0 m) | | Coverage Angle | 75° conical | | Output | 130 dB | | Drivers | LF: 15" (38 cm) driver with 3.5" (89 mm) voice coil
HF: 1.5" (38 mm) exit, 2.8" (71 mm) voice coil, compression driver | | Nominal Impedance | 8 Ohms | | Crossover | Full-range only, 1.55 kHz | | Input Connectors | 2 x NL4
1 x barrier strip | | Enclosure | Trapezoidal plywood. Two side mounted handles. Perforated, powder-coated steel grille with foam lining. | | Suspension | 6 x M8 suspension points, dual angle, 35 mm pole-socket | | Dimensions | 16.5 x 28.2 x 17.5" (42 x 71.6 x 44.5 cm) | | Weight | 68 lb (31 kg) | | | | Box Dimensions (LxWxH) | 32.7 x 20.5 x 20.0" | - QSC GXD 8 Professional 4500W Power Amplifier with DSP
| Watts Per Channel | 8 Ohm Dynamic (Both Channels Driven): 1500 W
4 Ohm Dynamic (Both Channels Driven): 2250 W
8 Ohm Continuous (Both Channels Driven): 800 W
4 Ohm Continuous (Both Channels Driven): 1200 W | | Total Harmonic Distortion (THD) | Distortion: < 1% (typical), 1 kHz at full rated power | | Signal to Noise Ratio | Signal to Noise: 100 dB, (A-weighted, 20 Hz to 20 kHz) | | Input Sensitivity | 1.2 Vrms
3.9 Vrms | | Voltage Gain | 36.5 dB | | Output Circuit | Class D | | Power Requirements | Power Requirements: 1/8 power at 4 ohms
100 VAC: 6.2 A
120 VAC: 5.6 A
230 VAC: 3.2 A | | Frequency Response | 20 Hz to 20 kHz (+0.7 dB, -0.8 dB) | | Headroom | Dynamic Headroom: 2.73 (4 ohms) | | Damping Factor | 100 | | Input Impedance | 20 kOhms (balanced)
10 kOhms (unbalanced) | | Maximum Input Level | +23.5 dBu | | Input Connectors | 3-pin XLR/F
1/4" TRS, balanced | | Output Connectors | NL4 (Channel 1 - 1+/-, Channel 2 - 2+/-), binding posts | | Amplifier Protection | Short circuit
Open circuit
Thermal
RF protection
Load protected against DC faults | | Front Panel Controls and Indicators | 2 x rotary encoders
3 x operational buttons (HOME, ENTER, EXIT)
2 x green signal LEDs, indicate signal presence
2 x red A/D clip LEDs, indicate input over-drive and/or amplifier current clipping
Blue power LED ring, AC on
256 x 128 Pixel LCD: 2.1 x 1.0" / 5.4 x 2.5 cm | | Digital Signal Processing (DSP) | High Pass Filter: 4th order LR, adjustable frequency 20 Hz to 4 kHz
Low Pass Filter: 4th order LR, adjustable frequency 60 Hz to 4 kHz
4-Band PEQ: Variable frequency, gain, and bandwidth
Peak Limiter: Power, aggressiveness, and impedance selection
Delay: 50 ms maximum | | Approvals | UL, CE, RoHS/WEEE compliant | | Dimensions (H x W x D) | 3.5 x 19.0 x 10.2" / 8.9 x 48.3 x 25.9 cm | | Weight | 13.2 lb / 6.0 kg | | | | Box Dimensions (LxWxH) | 23.386 x 14.409 x 5.984" |
