Product description

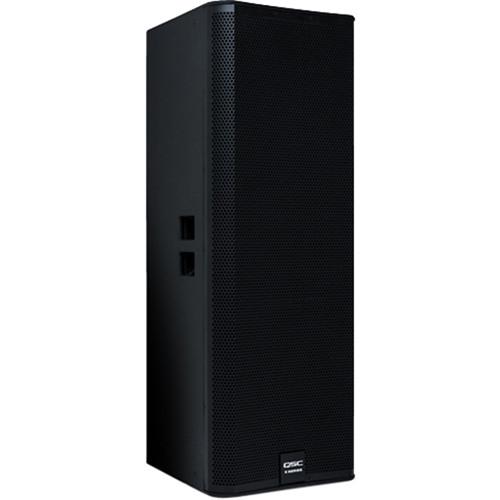

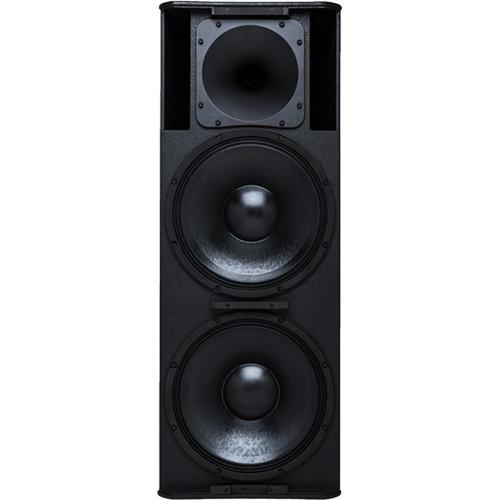

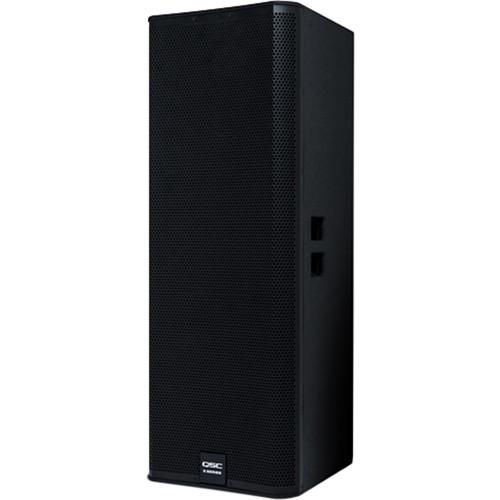

QSC PA Speakers Buying Guide Read More The E215 from QSC is a high-output 2-way loudspeaker featuring dual 15" woofers and a 1.5" high-frequency driver that combine to offer a frequency range of 39 Hz to 20 kHz with an SPL of 134 dB. Each 15" woofer is made with a die-cast aluminum frame and 3.5" voice coil, while the high-frequency compression driver utilizes a titanium diaphragm with a 2.8" voice coil and a 1.5" exit. The speaker offers a power handling capability of 1000W continuous and 4000W peak with a 75° conical dispersion.

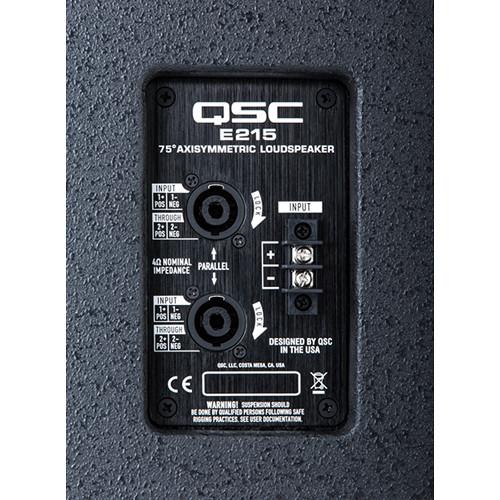

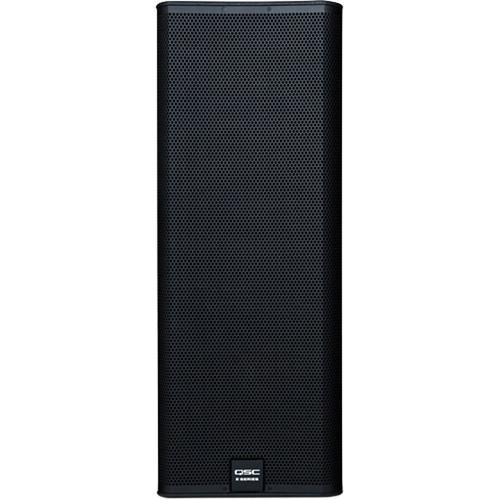

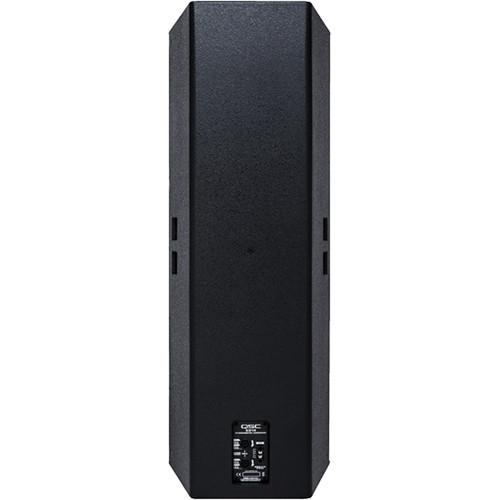

The enclosure is made from 11-ply plywood with a black textured paint finish and a perforated, powder-coated steel grille with foam lining. For connections, the rear panel offers two NL4 and one barrier strip connectors. The optional custom-fit padded cover offers protection during transportation, while the optional M10 rigging kit provides hanging options for permanent installations.
    • High output, professional quality sound with 1000W continuous power (4000W peak)
    • E Series Entertainment System: Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
    • E Series Entertainment System DSP: Tunings are now available for PLD, CXD and GXD processing amplifiers
    • Titanium diaphragm for high fidelity and long life
    • Rugged tour-grade textured paint
    • Foam-lined perforated steel grille
    • Optional padded cover for protection during transportation

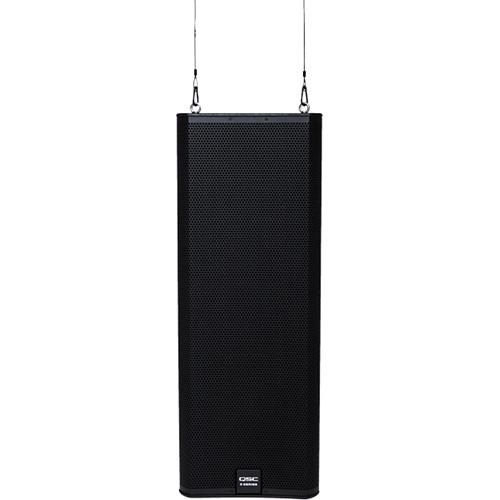

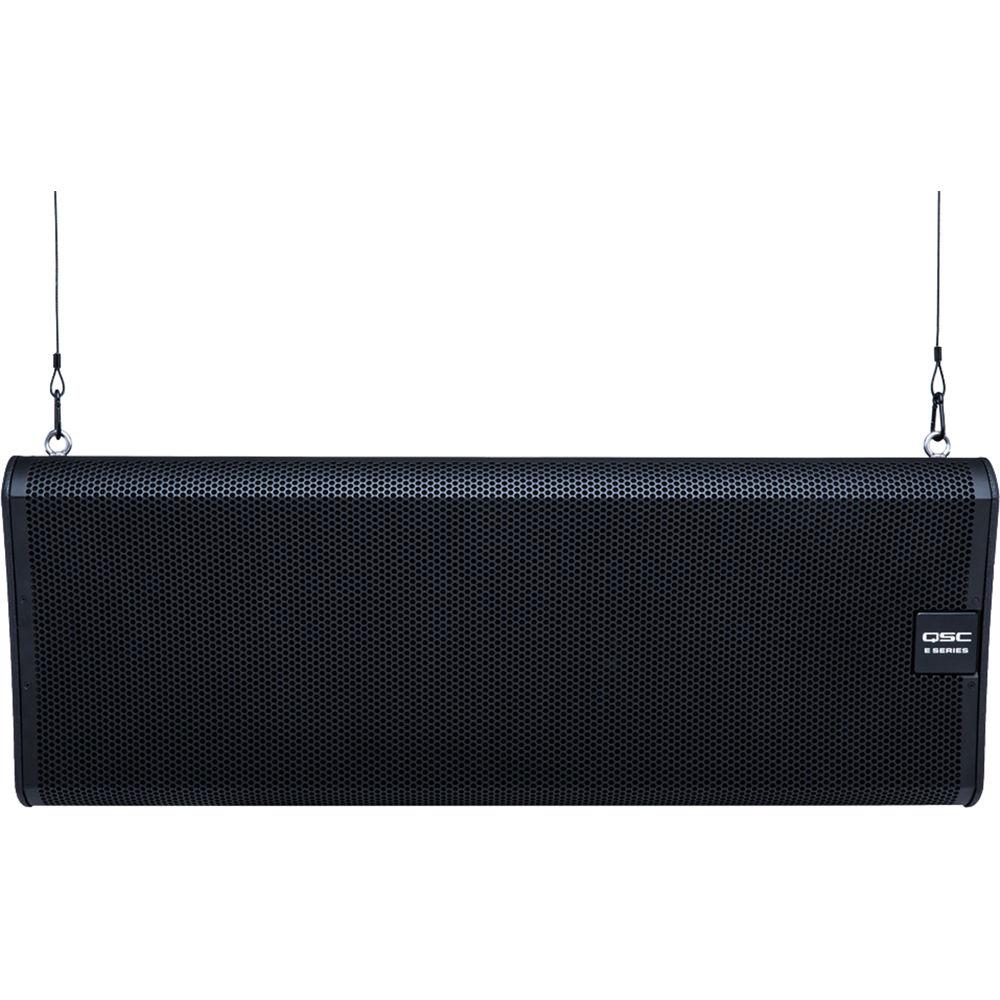

    • Optional M10 rigging kit available for permanent installation
UPC: 684284070937 In the Box QSC E215 - Dual 15" Two-Way Passive Loudspeaker (Black)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the QSC E215 - Dual 15" Two-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    QSC E215 Specs

    Configuration Passive 2-Way
    Total Power Capacity 1000 W RMS
    4000 W Peak
    System Impedance 4 Ohms (Nominal)
    HF Driver 1 x Compression Driver with 1.5" / 38 mm Throat
    HF Voice Coil 2.8" / 71 mm
    LF Driver 2 x 15" / 38 cm Woofer
    LF Voice Coil 3.5" / 89 mm
    Frequency Range 39 Hz to 20 kHz -10 dB
    Maximum SPL 134 dB
    Coverage Angle 75° H x 75° V
    Speaker Sensitivity 98 dB
    Audio I/O 2 x speakON NL4
    1 x Barrier Strip
    Crossover 1.6 kHz Full-Range Only

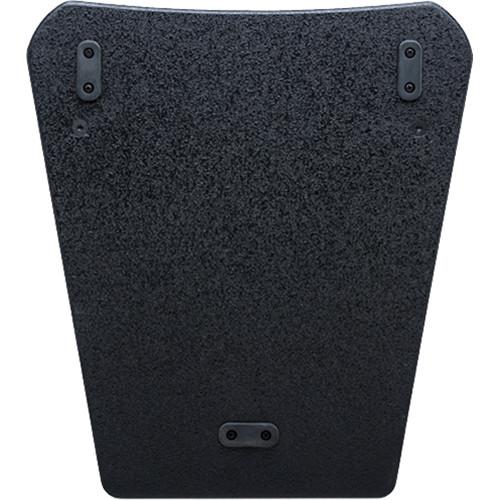

    Mounting 6 x M8
    1 x 1.38" / 35 mm Pole Socket (Dual Angle)
    Construction Material Perforated Metal Grille, Plywood
    Dimensions 16.5 x 44.3 x 18.3" / 420.0 x 1.0 x 464.0 mm
    Weight 200 lb / 90.7 kg
    Package Weight 118.35 lb
    Box Dimensions (LxWxH) 48.0 x 22.0 x 20.0"
