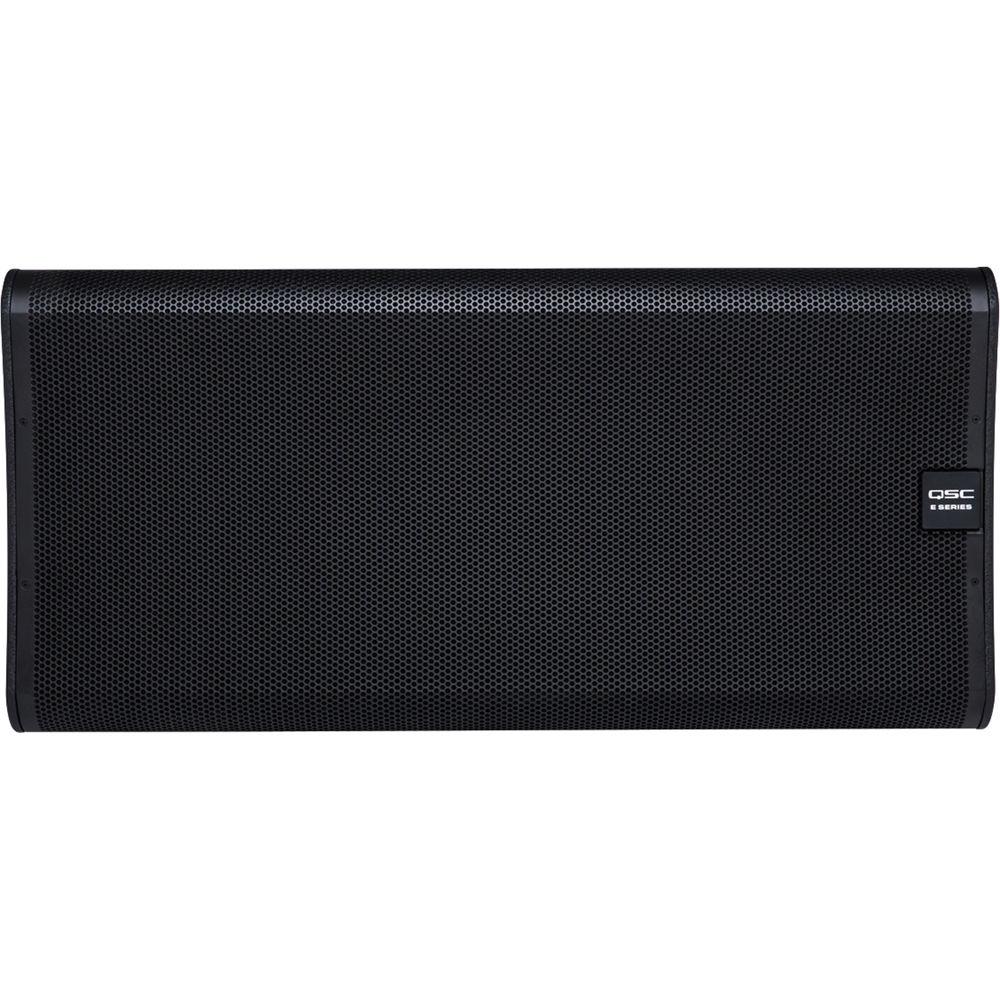

User Manual for QSC E218SW - E-Series Dual 18" Passive Subwoofer Click to enlarge the picture
Contents of the user manual for the QSC E218SW - E-Series Dual 18"
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC E218SW - E-Series Dual 18" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

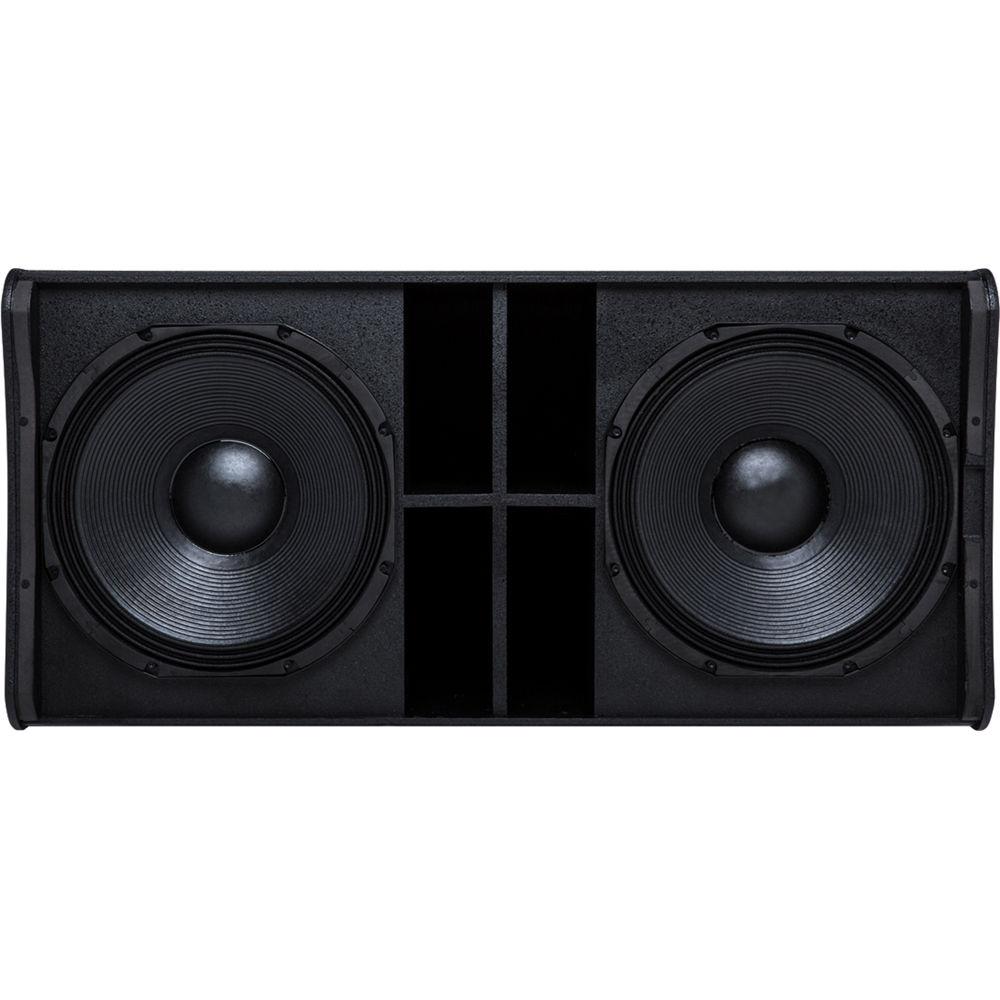

Product description QSC PA Speakers Buying Guide Read More The E218SW from QSC is a direct radiating subwoofer featuring dual 18" woofers that offer a frequency range of 32 to 230 Hz with an SPL of 136 dB. Each 18" woofer is made with a die-cast aluminum frame and 4" voice coil that when combined, offer a power handling capability of 1200W continuous and 4800W peak.

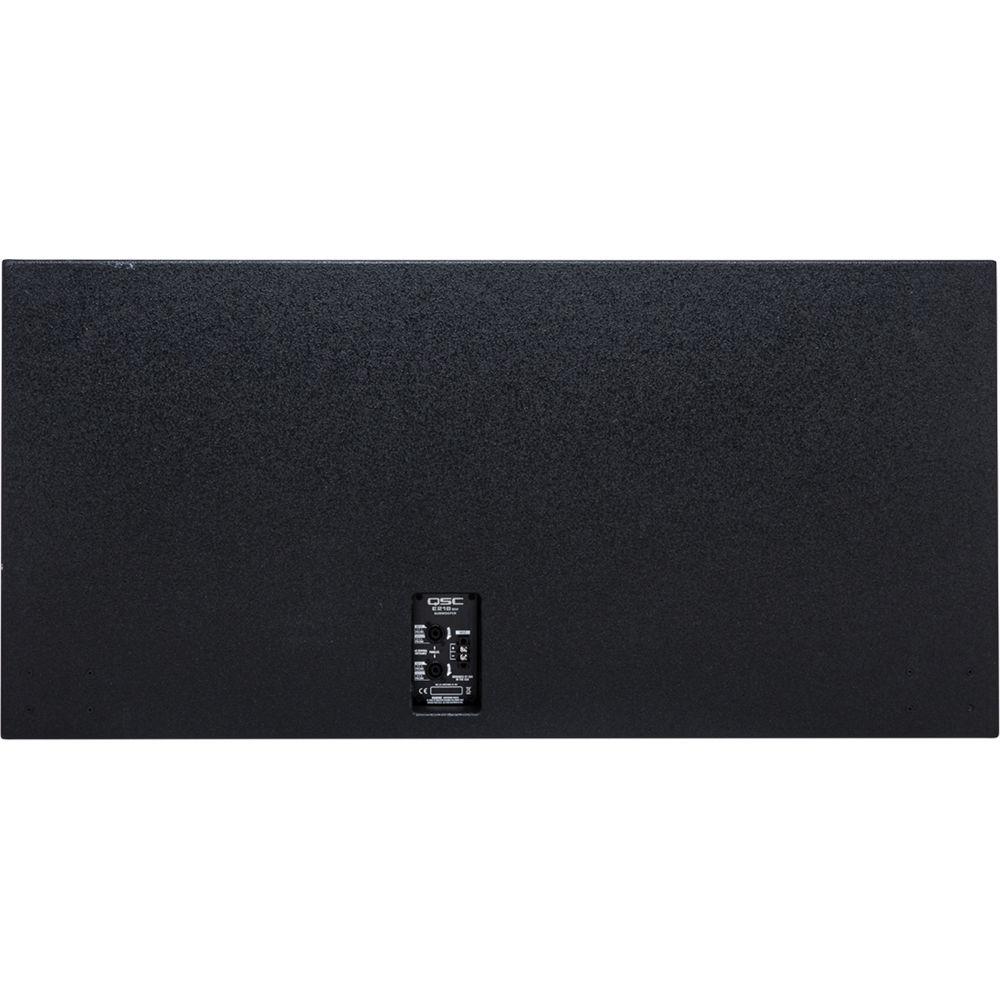

The enclosure is made from 11-ply plywood with a black textured paint finish and a perforated, powder-coated steel grille with foam lining. For connections, the rear panel offers two NL4 and one barrier strip connectors. The optional custom-fit padded cover offers protection during transportation and an optional caster kit provides greater portability. -
- High output, professional quality sound with 4800W peak power
- E-Series Entertainment System: Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
- E-Series Entertainment System DSP: Tunings are now available for PLD, CXD and GXD processing amplifiers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grille
- Optional padded cover for protection during transportation
- Optional caster kit for greater portability
In the Box QSC E218SW - E-Series Dual 18" Passive Subwoofer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC E218SW - E-Series Dual 18" Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC E218SW Specs | | | Configuration | Passive Dual Subwoofer | | Total Power Capacity | 1200 W RMS
4800 W Peak | | System Impedance | 4 Ohms (Nominal) | | | | LF Driver | 2 x 18" / 46 cm Woofer | | LF Voice Coil | 4" / 10 cm | | | | Frequency Range | 32 Hz to 230 Hz -10 dB | | Maximum SPL | 136 dB | | Speaker Sensitivity | 101 dB | | | | Audio I/O | 2 x speakON NL4
1 x Barrier Strip | | | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 46.5 x 24.3 x 25.2" / 118.0 x 61.7 x 64.0 cm | | Weight | 183 lb / 83.2 kg |
