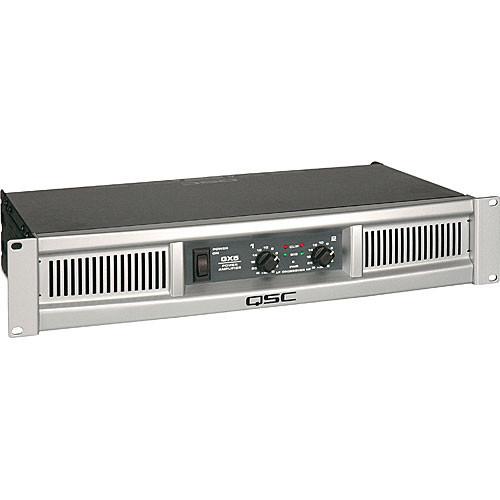

User Manual for QSC GX5 500 Watt 8-Ohm Power Amplifier Click to enlarge the picture
Contents of the user manual for the QSC GX5 500 Watt 8-Ohm Power
- Product category: Power Amplifiers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Power Amplifiers
 |
User manual for the QSC GX5 500 Watt 8-Ohm Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

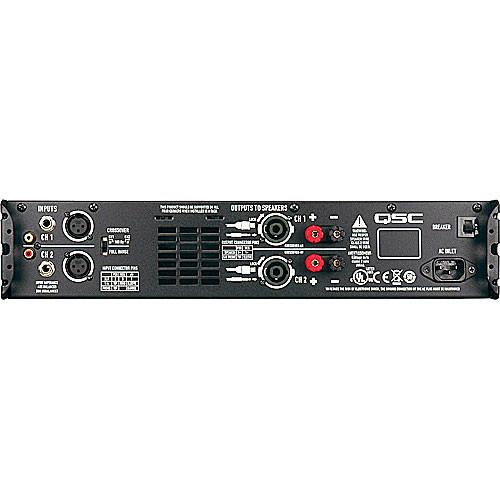

Product description The QSC GSX GX5 Power Amplifier is designed to provide power, portability and professional sound quality at an affordable price. The GX5 features 500 watts of power at 8 Ohms (both channels driven) in a design that's easy to install and delivers flexible features. The rear panel features balanced XLR and 1/4" phone inputs, as well as unbalanced RCA phono inputs for complete compatibility with professional and consumer audio gear.The outputs feature speaker binding posts and speakON connections. Detented gain controls provide precise level settings. QSC's GuardRail protection delivers full peak power while preventing detrimental overloads due to excessive clipping or overheating. In addition, a built-in 180 Hz crossover splits low and mid frequency signal between the left and right channel. This is ideal for driving subwoofers. The GX5 is a feature packed, lightweight amplifier that's suitable for midsize venue installation, musicians, mobile DJs, etc. - XLR, 1/4" Phone, and RCA Inputs
- The rear panel features balanced XLR and 1/4" phone inputs, as well as unbalanced RCA phono inputs for complete compatibility with professional and consumer audio gear.
- Flexible Outputs
- The outputs feature speaker binding posts and speakON® connections. Detented gain controls provide precise level settings.
- QSC GuardRail Protection
- QSC's GuardRail protection delivers full peak power while preventing detrimental overloads due to excessive clipping or overheating.
- Built-In Crossover
- A built-in 180 Hz crossover splits low- and mid-frequency signal between the left and right channel.
UPC: 684284055361 In the Box QSC GX5 500 Watt 8-Ohm Power Amplifier 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC GX5 500 Watt 8-Ohm Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC GX5 Specs | Power Rating | 8 Ohms / 1 kHz (both channels driven): 500W
8 Ohms / 1 kHz (single channels driven): 600W
4 Ohms / 1 kHz (both channels driven): 700W
4 Ohms / 1 kHz (single channels driven): 850W | | Damping Factor | Not Specified By Manufacturer | | Input Sensitivity | 1.2 Vrms | | Input Impedance | Greater than 20k (balanced) | | Gain | 34.4 dB | | Frequency Response | 20 Hz - 20 kHz, +0, -1 dB | | Signal-to-Noise Ratio | 100 dB | | Total Harmonic Distortion (THD) | 8 Ohms: less than 0.05%
4 Ohms: less than 0.1% | | Input Connections | 3-pin XLR and 1/4" TRS, balanced, parallel

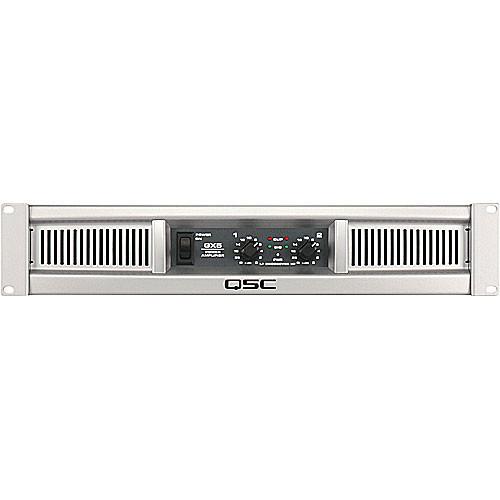

Phono, unbalanced | | Output Connectors | Speakon, 1/4", Binding Posts | | Controls Front Panel | Gain controls, 21 detents
Red Clip LEDs, proportional, 0.1% THD threshold
Green Signal LEDs, threshold -35 dB
Blue Power LED, AC on | | Controls (Rear) | Full Range / Crossover switch
100 Hz, 3rd order LP (sub), 2nd order HP (top) | | Indicators | Red Clip LEDs, proportional, 0.1% THD threshold
Green Signal LEDs, threshold -35 dB
Blue Power LED, AC on | | Cooling | Not Specified By Manufacturer | | Power Consumption | 0.3 AC Amps, 60 per hour idle
UL, CE, RoHS/WEEE Compliant | | Power Requirements | 1/8 power, pink noise at 4 Ohms, 120 V, 6.3 A | | Dimensions (WxHxD) | 19 x 3.5 10.1" (483 x 89 x 257 mm) | | Weight | 26 lbs (12 kg) | | Specialties | Subwoofer/satellite crossover built-in | | | | Package Weight | 32.8 lb | | Box Dimensions (LxWxH) | 24.0 x 14.0 x 6.0" |
