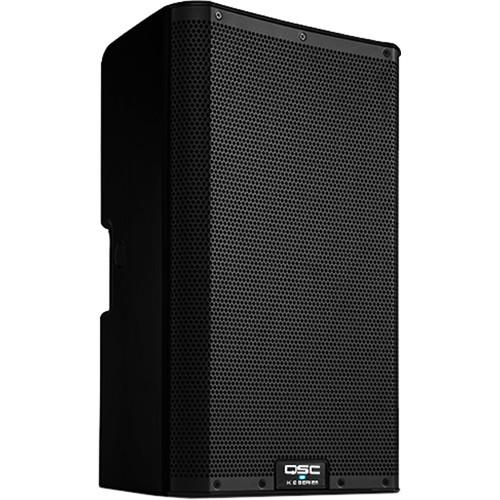

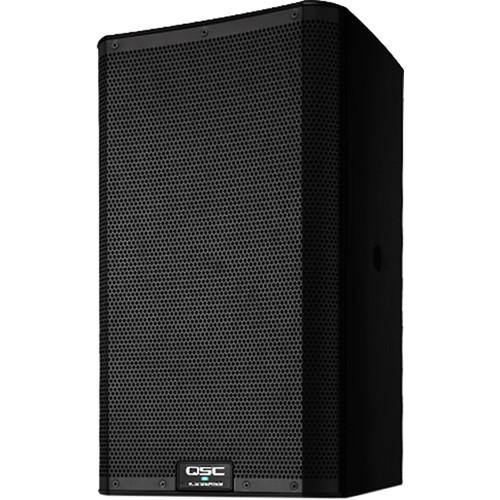

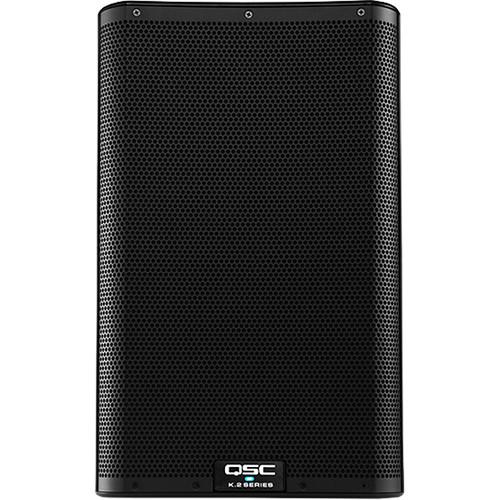

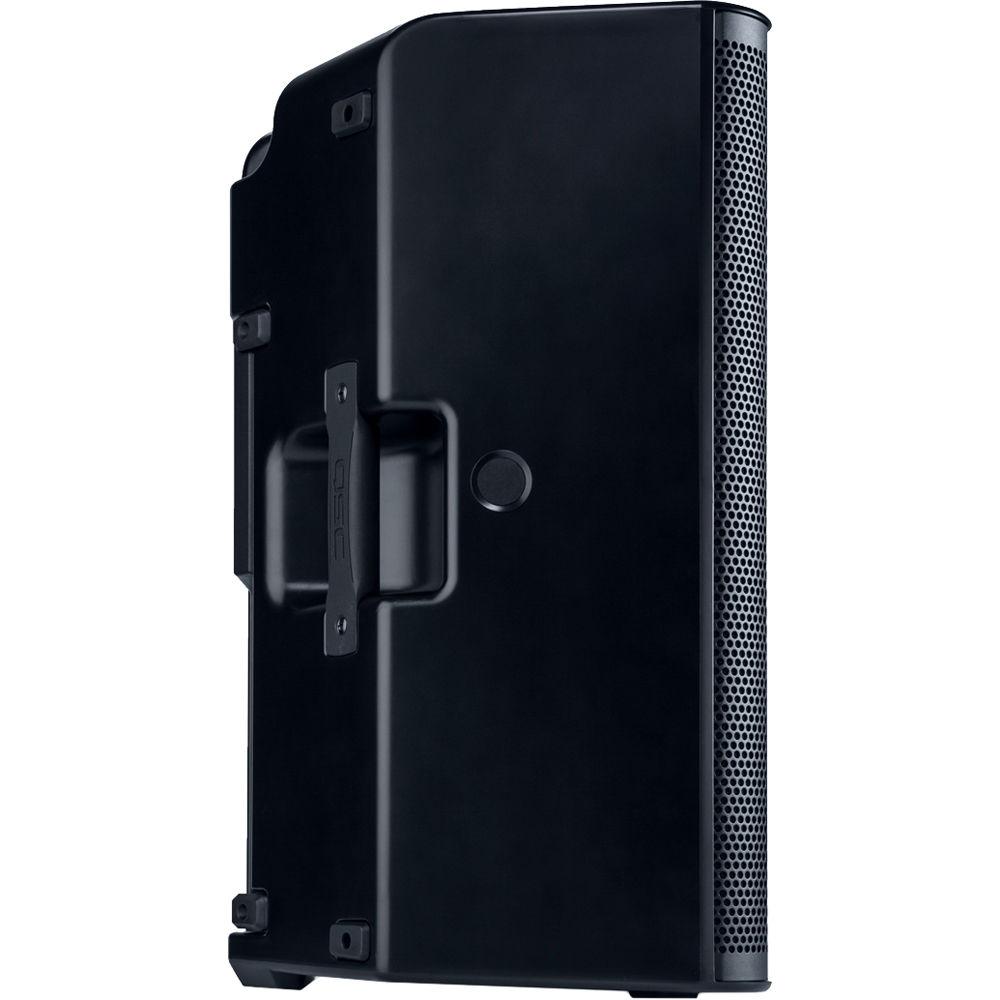

User Manual for QSC K10.2 K.2 Series 10" 2-Way 2000 Watt Powered Speaker Click to enlarge the picture
Contents of the user manual for the QSC K10.2 K.2 Series 10" 2-Way
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC K10.2 K.2 Series 10" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description QSC PA Speakers Buying Guide Read More - K.2 Series Powered Loudspeakers from QSC
The K.2 Series K10.2 Two-Way 2000 Watt Powered Speaker from QSC features "next generation" upgrades to the popular K-Series powered speakers and is well suited for live bands, public speaking, DJ and Club applications, as well as schools, houses of worship, and event production companies. The K.2 Series features a Class-D power amplifier supplying 1800W to the 10" woofer and 225W to the 1.4" titanium compression driver, which combine to deliver a frequency response of 56 Hz to 20 kHz with a peak SPL output of 130 dB.Notable upgrades include over twice the power of the original K-Series, which provides better performance with less distortion, as well as a more powerful DSP section with user-adjustable crossover, delay, and EQ. A high-quality LCD display provides advanced functionality and control, allowing the user to select a factory voice for specific applications, or save user presets with custom selected parameters. Additionally, the K.2 now includes Hi-Z (high impedance) inputs for passive instruments, such as electric bass guitars and acoustic/electric instruments. Other features include a dual pole-cup for improved center-of-gravity, a cloth-lined grille for a more elegant look, a 1/8" mini-jack input, three independent gain controls for each input, and a shallower monitor angle of 55°.There are several optional accessories available for the K10.2 including the K10 Tote, K10 Outdoor Cover,
M10 Kit-C, K.2-LOC Lock Out Cover, and K10.2 Yoke. The K10.2 ships with a locking IEC power cord. -
- Professional performance
- 2000 Watt Class-D amplifier module
- Factory Presets and savable/recallable scenes for commonly-used applications
- Multi-function digital display for control and selection of loudspeaker functions including crossover, EQ, delay and frequency contour
- Intrinsic Correction tuning and loudspeaker management
- Directivity Matched Transition (DMT) design provides excellent power response and consistent performance across the listening area
- Refined, professional appearance looks great in any application
- Rugged ABS enclosure for long life and lasting durability

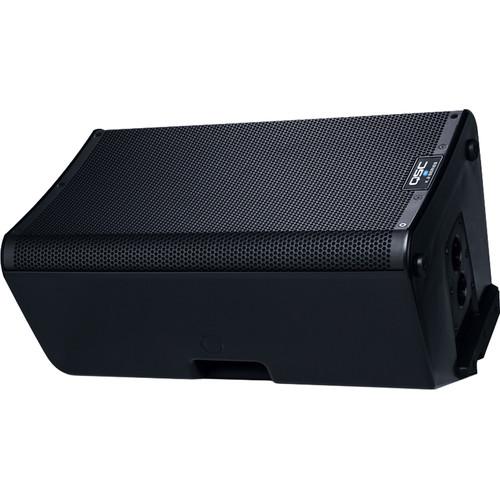

- Deployment in either main PA or floor monitor position
- Dual pole cup mounts (standard and 7.5 degree down-tilt)
- M10 fittings for flown applications
- Optional security panel prevents unauthorized tampering of controls
- Complete EASE and CAD information available online
- Limited 6-year warranty
UPC: 684284065537 In the Box QSC K10.2 K.2 Series 10" 2-Way 2000 Watt Powered Speaker Locking AC Power Cord Limited 3-Year Warranty Additional Limited 3-Year Warranty with Registration QSC Introduces Its New K.2 Series Line of Powered Loudspeakers Eric Calvi 04/19/2017 Spec sheet PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC K10.2 K.2 Series 10" 2-Way 2000 Watt Powered Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC K10.2 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 2000 W | | Amplifier Power Rating | LF:
1800 W Peak
HF:
225 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium Compression Driver | | LF Driver | 1 x 10" / 25.4 cm Woofer | | | | Frequency Range | 50 Hz to 20 kHz -10 dB | | Frequency Response | 56 Hz to 20 kHz -6 dB | | Maximum SPL | 130 dB (Peak)
124 dB (Continuous) | | Coverage Angle | 90° H x 90° V | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x 1/8" / 3.5 mm TRS Input
2 x XLR Male Thru/Output
1 x XLR Male Mix Output | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC (Locking) | | Current Consumption | 100 VAC:
2.1 A (1/8 Power)
240 VAC:
1.1 A (1/8 Power) | | | | Mounting | 2 x M10 | | Cooling | Fan (Variable Speed) | | Construction Material | ABS, Metal Grille | | Certifications | CE, FCC, RoHS, UL, WEEE, as per Manufacturer | | Dimensions | 20.4 x 12.6 x 11.8" / 518.2 x 320.0 x 299.7 mm | | Weight | 32 lb / 14.5 kg | | | | Package Weight | 38.8 lb | | Box Dimensions (LxWxH) | 22.0 x 17.5 x 16.5" |
