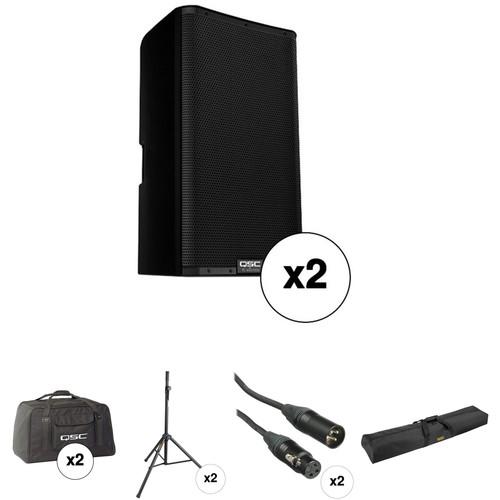

User Manual for QSC K12.2 K.2 Series 12" 2000W Powered Speaker Pair with Essential Accessories Kit Click to enlarge the picture
Contents of the user manual for the QSC K12.2 K.2 Series 12" 2000W
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
|
User manual for the QSC K12.2 K.2 Series 12" 2000W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description QSC PA Speakers Buying Guide Read More The QSC K12.2 K.2 Series 12" 2000W Powered Speaker Pair with Essential Accessories Kit from includes two K12.2 K.2 series powered speakers, two Musicians Value C3 Series CS-TS3 speaker stands, two K12 TOTE soft tote bags, one Auray SB-52SSB speaker stand bag, and two XLR cables. The kit offers all the essential accessories needed to easily transport, set up, and connect your K12.2 speaker system for public address, live sound reinforcement, DJ, or karaoke applications in clubs, schools, houses of worship, event spaces, and more.
The K12.2 K.2 Series is a 2-way, active speaker equipped with a 12" woofer, a 1.4" compression driver, and a 2000W Class-D amplifier module. Onboard advanced DSP functions are used to protect the drivers from damage and the performance from distortion. The speaker features a rugged ABS enclosure with an elegant design, which adds a professional look to your setup. The CS-TS3 lightweight aluminum stand features a telescoping center column with height adjustments ranging from 54.25 to 79.25". The tripod legs quickly fold for easy transport. The durable K12 TOTE soft tote bags and Auray speaker stand bag are designed to hold and protect your speakers and stands while in transit or in storage. - 2 x QSC K12.2 K.2 Series 12" 2-Way 2000 Watt Powered Speaker
- K.2 Series Powered Loudspeakers from QSC
The K.2 Series K12.2 Two-Way 2000 Watt Powered Speaker from QSC features "next generation" upgrades to the popular K-Series powered speakers and is well suited for live bands, public speaking, DJ and Club applications, as well as schools, houses of worship, and event production companies. The K.2 Series features a Class-D power amplifier supplying 1800W to the 12" woofer and 225W to the 1.4" titanium compression driver, which combine to deliver a frequency response of 50 Hz to 20 kHz with a peak SPL output of 130 dB.Notable upgrades include over twice the power of the original K-Series, which provides better performance with less distortion, as well as a more powerful DSP section with user-adjustable crossover, delay, and EQ. A high-quality LCD display provides advanced functionality and control, allowing the user to select a factory voice for specific applications, or save user presets with custom selected parameters. Additionally, the K.2 now includes Hi-Z (high impedance) inputs for passive instruments, such as electric bass guitars and acoustic/electric instruments. Other features include a dual pole-cup for improved center-of-gravity, a cloth-lined grille for a more elegant look, an 1/8" mini-jack input, three independent gain controls for each input, and a shallower monitor angle of 55°.There are several optional accessories available for the K12.2 including the K12 Tote, K12 Outdoor Cover,
M10 Kit-C, K.2-LOC Lock Out Cover, and K12.2 Yoke. The K12.2 ships with a locking IEC power cord. -
- Professional performance
- 2000 Watt Class-D amplifier module
- Factory Presets and savable/recallable scenes for commonly-used applications
- Multi-function digital display for control and selection of loudspeaker functions including crossover, EQ, delay and frequency contour
- Intrinsic Correction tuning and loudspeaker management
- Directivity Matched Transition (DMT) design provides excellent power response and consistent performance across the listening area
- Refined, professional appearance looks great in any application
- Rugged ABS enclosure for long life and lasting durability
- Deployment in either main PA or floor monitor position
- Dual pole cup mounts (standard and 7.5 degree down-tilt)
- M10 fittings for flown applications
- Optional security panel prevents unauthorized tampering of controls
- Complete EASE and CAD information available online
- Limited 6-year warranty
UPC: 684284065520 - 2 x QSC K12 TOTE Soft Tote Bag
- K.2 Series Powered Loudspeakers from QSC
The QSC K12 TOTE Soft Tote Bag (Black) is a weather-resistant, heavy-duty Cordura nylon bag designed to carry and protect a K12 active loudspeaker. It has a pocket in front for wires and cables. The tote is carried by 2 strap handles with an overlapping grip. - Construction
-
- Weather-resistant, heavy-duty Cordura nylon
- Padded interior
- Zipper closure
- Dual strap handles with overlapping grip
- Compatible with QSC K12 Multipurpose 2-way active loudspeaker
UPC: 684284056078 - 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand
- K.2 Series Powered Loudspeakers from QSC
The SS-4320 Lightweight Aluminum Speaker Stand from Auray is built to be lightweight, yet stable and durable; a single stand is capable of supporting speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 47 to 78". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages. - Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
- Locking pin fits into any of five predrilled holes to secure desired height setting
- Center brace connects tripod legs for increased stability
UPC: 847628015845 - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
- K.2 Series Powered Loudspeakers from QSC
The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 - Auray Speaker Stand Bag 51" Interior (Black)
- K.2 Series Powered Loudspeakers from QSC
The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification. - Durable Protection
- The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
- Reliable and Stylish
- Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
- Easy Transport
- Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
UPC: 847628002432 In the Box - 2 x K12.2 K.2 Series 12" 2-Way 2000 Watt Powered Speaker rutuuybztubuezde
- Locking AC Power Cord
- Limited 3-Year Warranty
- Additional Limited 3-Year Warranty with Registration
- 2 x K12 TOTE Soft Tote Bag
- 2 x Auray - SS-4320 Lightweight Aluminum Speaker Stand
- 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
- Auray - Speaker Stand Bag 51" Interior (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC K12.2 K.2 Series 12" 2000W Powered Speaker Pair with Essential Accessories Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x QSC K12.2 K.2 Series 12" 2-Way 2000 Watt Powered Speaker
| | | Configuration | Active 2-Way | | Total Power Capacity | 2000 W | | Amplifier Power Rating | LF:
1800 W Peak
HF:
225 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium Compression Driver | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Range | 45 Hz to 20 kHz -10 dB | | Frequency Response | 50 Hz to 20 kHz -6 dB | | Maximum SPL | 132 dB (Peak)
126 dB (Continuous) | | Coverage Angle | 75° H x 75° V | | | | Audio I/O | 1 x Combo XLR / 1/4" Line/Mic Input
1 x Combo XLR / 1/4" Line Input
1 x 1/8" / 3.5 mm TRS Input
2 x XLR Male Thru/Output
1 x XLR Male Mix Output | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC (Locking) | | Current Consumption | 100 VAC:
2.1 A (1/8 Power)
120 VAC:
1.9 A (1/8 Power)
240 VAC:
1.1 A (1/8 Power) | | | | Mounting | 2 x M10 | | Cooling | Fan (Variable Speed) | | Construction Material | ABS, Metal Grille | | Certifications | CE, FCC, RoHS, UL, WEEE, as per Manufacturer | | Dimensions | 23.7 x 14.0 x 13.8" / 602.0 x 355.6 x 350.5 mm | | Weight | 39 lb / 17.7 kg | | | | Box Dimensions (LxWxH) | 25.7 x 18.5 x 18.3" | - 2 x QSC K12 TOTE Soft Tote Bag
| Type | Bag | | Interior Dimensions | 14 x 23.7 x 14" / 35.6 x 60.3 x 35.6 cm | | Carrying/Transport Options | Connecting Handles | | Type of Closure | Zipper | | Material of Construction | Nylon | | Weight | 6 lb / 2.7 kg | | | | Box Dimensions (LxWxH) | 27.8 x 16.6 x 4.4" | - 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand
| Type | Speaker Stand | | Load Capacity | 100 lb / 45.4 kg | | Mount Size | 1-3/8"
1-1/2" | | Height Adjustment Range | 47 to 78" / 120 to 198 cm | | Material of Construction | Aluminum | | Weight | 5 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 42.0 x 5.3 x 5.0" | - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" | - Auray Speaker Stand Bag 51" Interior (Black)
| Material | Nylon | | Type of Closure | Zipper | | Exterior Dimensions (H × W × D) | 52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm | | Carrying/Transport Options | Dual carry handles with padded touch-fastener wrap | | Weight | 1.2 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 16.6 x 10.8 x 2.2" |
