Product description QSC PA Speakers Buying Guide Read More - K.2 Series Powered Loudspeakers from QSC

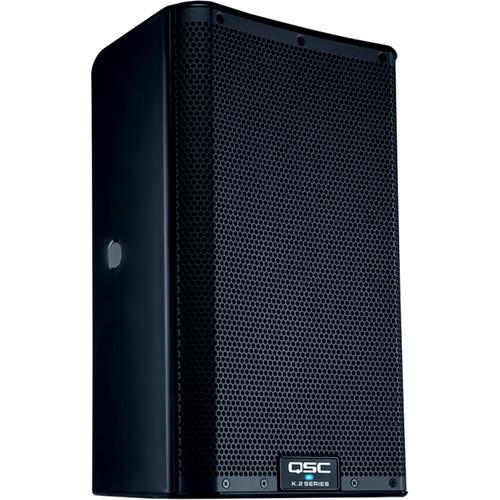

The K.2 Series K8.2 Two-Way 2000-Watt Powered Speaker from QSC features next generation upgrades to the popular K-Series powered speakers and is well suited for live bands, public speaking, DJ and Club applications, as well as schools, houses of worship, and event production companies. The K.2 Series features a Class-D power amplifier supplying 1800W to the 8" woofer and 225W to the 1.4" titanium compression driver, which combine to deliver a frequency response of 59 Hz to 20 kHz with a peak SPL output of 128 dB.Notable upgrades include over twice the power of the original K-Series, which provides better performance with less distortion, as well as a more powerful DSP section with user-adjustable crossover, delay, and EQ. A high-quality LCD display provides advanced functionality and control, allowing the user to select a factory voice for specific applications, or save user presets with custom selected parameters. Additionally, the K.2 now includes Hi-Z (high impedance) inputs for passive instruments, such as electric bass guitars and acoustic/electric instruments. Other features include a dual pole-cup for improved center-of-gravity, a cloth-lined grille for a more elegant look, an 1/8" mini-jack input, three independent gain controls for each input, and a shallower monitor angle of 55°.There are several optional accessories available for the K8.2 including the K8 Tote, K8 Outdoor Cover,
M10 Kit-C, K.2-LOC Lock Out Cover, and K8.2 Yoke. The K8.2 ships with a locking IEC power cord. -
- Professional performance
- 2000-Watt Class-D amplifier module
- Factory Presets and savable/recallable scenes for commonly-used applications
- Multifunction digital display for control and selection of loudspeaker functions including crossover, EQ, delay and frequency contour
- Intrinsic Correction tuning and loudspeaker management
- Directivity Matched Transition (DMT) design provides excellent power response and consistent performance across the listening area
- Refined, professional appearance looks great in any application
- Rugged ABS enclosure for long life and lasting durability
- Deployment in either main PA or floor monitor position

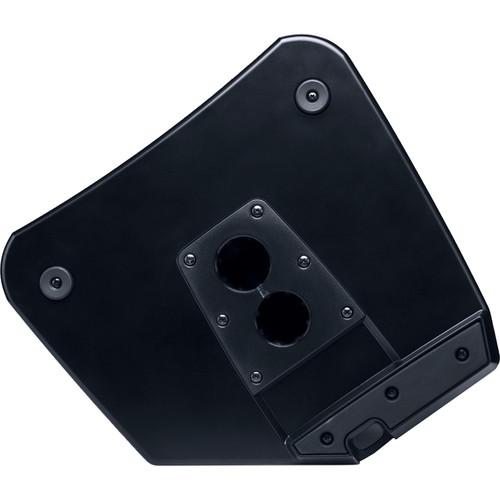

- Dual pole cup mounts (standard and 7.5 degree down-tilt)
- M10 fittings for flown applications
- Optional security panel prevents unauthorized tampering of controls
- Complete EASE and CAD information available online
- Limited 6-year warranty
UPC: 684284066305 In the Box QSC K8.2 K.2 Series 8" 2-Way 2000-Watt Powered Speaker Locking AC Power Cord Limited 3-Year Warranty Additional Limited 3-Year Warranty with Registration QSC Introduces Its New K.2 Series Line of Powered Loudspeakers Eric Calvi 04/19/2017 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC K8.2 K.2 Series 8" 2-Way 2000-Watt Powered Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC K8.2 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 2000 W | | Amplifier Power Rating | LF:
1800 W Peak
HF:
225 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium Compression Driver | | LF Driver | 1 x 8" / 203 mm Woofer | | | | Frequency Range | 55 Hz to 20 kHz -10 dB | | Frequency Response | 59 Hz to 20 kHz -6 dB | | Maximum SPL | 128 dB (Peak)

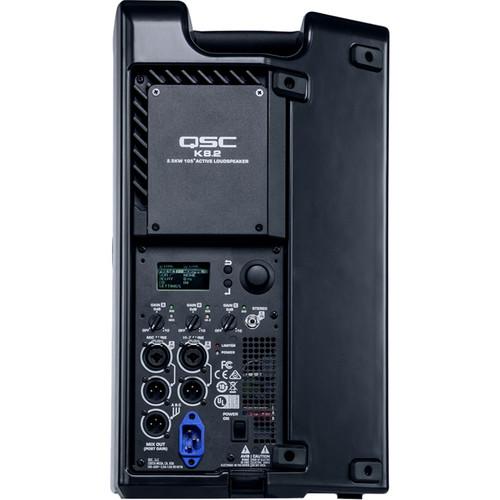

122 dB (Continuous) | | Coverage Angle | 105° H x 105° V | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x 1/8" / 3.5 mm TRS Input
2 x XLR Male Thru/Output
1 x XLR Male Mix Output | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC (Locking) | | Current Consumption | 100 VAC:
2.1 A (1/8 Power)
240 VAC:
1.1 A (1/8 Power) | | | | Mounting | 2 x M10 | | Cooling | Fan (Variable Speed) | | Construction Material | ABS, Metal Grille | | Certifications | CE, FCC, RoHS, UL, WEEE, as per Manufacturer | | Dimensions | 17.7 x 11.0 x 10.6" / 449.6 x 279.4 x 269.2 mm | | Weight | 27 lb / 12.2 kg | | | | Package Weight | 31.8 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 14.0" |
