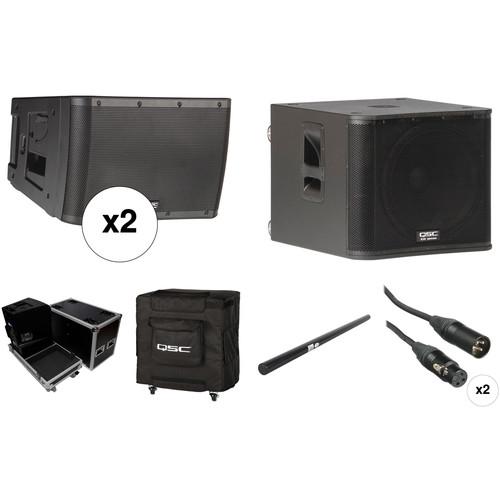

User Manual for QSC KLA12 Dual Line Array Kit with KW181 Subwoofer, Flight Case, Cover, Speaker Pole & Cables

• Product category: PA Speakers QSC
• Brand: QSC
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for QSC PA Speakers

Product description

• 2 x QSC KLA12 12" 2-Way Line Array Loudspeaker (Black)
  • KLA Introduction
  The KLA12 12" 2-Way Line Array Loudspeaker (Black) is a compact speaker designed to be used as part of a speaker array system. The speaker features a rugged ABS plastic enclosure that provides lasting durability in a lightweight package. The speaker has a 12" woofer and a 1.75" compression tweeter to provide crisp, detailed sound reproduction with a wide frequency response. An efficient 500W x 500W power amp module provides clear, strong audio. The efficient design allows up to 5 KLA models to be driven from a single 120VAC 15 amp electrical circuit.

  The speaker has QSC's DEEP DSP algorithm, which provides extended bass by actively managing low-frequency transients. GuardRail protection circuitry prevents the amplifier module from unnatural and destructive clipping. An auto-standby mode will auto-engage after 5 minutes of inactivity to save energy. XLR and PowerCon input and thru connectors provide connection versatility, while a Phoenix connector allows daisy-chaining.

  The speaker is expressly designed for use in fixed arcuate line arrays, and has a 12:1 design factor with a 90 x 18° coverage pattern, allowing up to 5 units to be configured for 90 x 90° coverage. Most other systems require 6 units for the same coverage pattern. The KLA12's SOLO (Single-Operator Logistics) Rigging System allows you to easily assemble and disassemble the line array in a short amount of time without special tools or external hardware.

  Ar-Q (Arcuate Equalization) processing enables you to quickly tune the array, making appropriate adjustments based on the number of boxes in your array. By simply using a dial, you can choose the total number of boxes for a balanced and accurate tonal curve. Proprietary Intrinsic Correction technology adjusts the time, frequency, and amplitude response for a flat bandpass target.

  Up to 2 loudspeakers can be mounted on a stand or over a sub for a ground stack, thanks to a threaded Tilt-Direct 35mm pole socket. The socket also allows you to aim the speaker 9° downward for the best audience coverage. M10 fittings in the top of the enclosure allow up to 5 units to be flown in a suspended rig. An optional array frame is also available separately for additional mounting options.
  ABS Enclosure
  • The rugged ABS plastic enclosure provides lasting durability in a lightweight package
  High-Quality Drivers
  • The 12" woofer and 1.75" compression tweeter provide crisp, detailed sound reproduction with a wide frequency response
  Internal Power Module
  • The efficient 500W x 500W power amp module provides clear, strong audio. The efficient design allows up to 5 KLA models to be driven from a single 120VAC 15 amp electrical circuit
  DEEP DSP
  • QSC's DEEP DSP algorithm provides extended bass by actively managing low-frequency transients
  Protection
  • GuardRail protection circuitry prevents the amplifier module from unnatural and destructive clipping
  Energy Saving
  • An auto-standby mode will auto-engage after 5 minutes of inactivity to save energy. When the audio signal resumes, the power module will awaken instantly
  Connectivity
  • XLR and PowerCon input and thru connectors provide connection versatility, while a Phoenix connector allows daisy-chaining
  Wide Coverage
  • The speaker is expressly designed for use in fixed arcuate line arrays, and has a 12:1 design factor with a 90 x 18° coverage pattern, allowing up to 5 units to be configured for 90 x 90° coverage. Most other systems require 6 units for the same coverage pattern
  Easy Rigging
  • The SOLO (Single-Operator Logistics) Rigging System allows you to easily assemble and disassemble the line array in a short amount of time without special tools or external hardware
  Ar-Q Processing
  • Ar-Q (Arcuate Equalization) processing enables you to quickly tune the array, making appropriate adjustments based on the number of boxes in your array. By simply using a dial, you can choose the total number of boxes for a balanced and accurate tonal curve. Proprietary Intrinsic Correction technology adjusts the time, frequency, and amplitude response for a flat bandpass target
  Mounting Options
  • Up to 2 loudspeakers can be mounted on a stand or over a sub for a ground stack, thanks to a threaded Tilt-Direct 35mm pole socket. The socket also allows you to aim the speaker 9° downward for the best audience coverage. M10 fittings in the top of the enclosure allow up to 5 units to be flown in a suspended rig. An optional array frame is also available separately for additional mounting options
  UPC: 684284058041
• QSC KW181 1000W 18" Active Subwoofer
  • KLA Introduction
  The KW181 from QSC is a professional-quality active 3-way PA loudspeaker. Ideal for low frequency reinforcement of KW-series loudspeakers, the lightweight and rugged birch cabinet houses an 18" woofer to deliver deep, thumping bass with frequencies as low as 35Hz. An efficient Class-D amplifier provides an output power of 1000W for strong audio with low distortion.

  The sub offers excellent connectivity, with XLR/TRS combo inputs that accept mic or line signals. Direct XLR line outputs are provided for each channel. Extensive internal DSP includes Intrinsic Correction, DEEP, and GuardRail technologies to provide terrific sonic clarity and component protection for reliable operation.

  Onboard control options allow you to adjust EQ to perfectly match your surroundings and applications. You can also use the rear-panel Phoenix connector to connect an external potentiometer (not included) for remote gain control. The sub has a standard 35mm pole socket and a threaded pole for securely mounting a loudspeaker on top of the subwoofer. It also has ergonomic cast-aluminum handles and low-noise casters for easy transport.
  • Ideal for low frequency reinforcement of KW-series loudspeakers
  • Lightweight and durable texture-painted birch cabinet with road-worthy 16-gauge steel grille
  • An 18" woofer delivers deep, thumping bass with frequencies as low as 35Hz
  • An efficient Class-D amplifier provides an output power of 1000W for strong audio with low distortion
  • XLR/TRS combo inputs accept mic and line level signals. Direct XLR line outputs are provided for each channel
  • Intrinsic Correction maps 65-75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target, for excellent performance across the entire sound field
  • DEEP technology and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies
  • GuardRail protection technology protects both the amplifier module and your performance from unnatural and destructive clipping
  • Multiple EQ modes let you optimize the sub's output for specific applications with the flip of a switch
  • The onboard LED indicator can be set to illuminate when power is on, to only illuminate when the clip limiter circuit is engaged, or to always be off
  • The rear-panel Phoenix connector allows you to connect an external potentiometer (not included) for remote gain control. You can even control multiple daisy-chained units from a single control pot
  • The sub has a standard 35mm pole socket and a threaded pole for securely mounting a loudspeaker on top of the subwoofer
  • Ergonomic cast-aluminum handles and low-noise casters for easy transport
  • A locking power cable prevents accidental disconnection, while an automatic standby mode conserves energy and extends the life of the subwoofer
  UPC: 684284057839
• ProX X-QSC-KLA12 Flight Case for Two QSC KLA12 Speakers
  • KLA Introduction
  The ProX X-QSC-KLA12 is an ATA-300-style flight case designed to safely house two QSC KLA12 speakers for sound engineers and technicians in theaters, clubs, and live stage applications. It features laminated 3/8” plywood construction and hard rubber interior to protect your speakers from damage. The plywood's laminated surface incorporates hexagonal honeycomb-style grids to increase resistance to scratches.The case is reinforced with dual anchor rivets and heavy-duty steel ball corners, which safeguard the case joints. Recessed, lockable butterfly twist-lock latches provide secure closure. Four pre-installed casters and recessed, padded, spring-action carry handles simplify transport between gigs. Wheel locks can be engaged to prevent unintended rolling. Stacking cases is easy due to the caster dishes on the top cover.
  • • ATA-300-style case holds two QSC KLA12 speakers
    • Laminated 3/8" plywood
    • Hard rubber interior
    • Butterfly twist-lock latches are recessed and can be locked
    • Heavy-duty steel ball corners protect case edges
    • Four pre-installed casters
    • Top-mounted caster dishes allow easy stacking
    • Recessed spring-loaded carry handles for simple transport
  UPC: 019372408185
• QSC KW181 Soft Speaker Cover with Grille Guard
  • KLA Introduction
  The QSC KW181 Soft Cover (Black) is a heavy-duty Cordura nylon cover with grille guard ,designed to fit over a QSC KW1851 speaker.
  Speaker Cover Basics
  • • Fits KW181 speaker
    • Soft heavy-duty Cordura nylon cover with grille guard
  UPC: 684284057938
• QSC SP-36 Speaker Pole for KLA181 Subwoofer (36")
  • KLA Introduction
  The SP-36 from QSC is a speaker pole designed to support two KLA line-array enclosures over a single KLA181 subwoofer. The pole is 35mm in diameter, 36" long, and features a M20 threaded end, which fits into the KLA181. UPC: 659814603244
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
  • KLA Introduction
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• 2 x KLA12 12" 2-Way Line Array Loudspeaker (Black) axqzcwbvwvzxtrceayedzwtwyrevf
• 3-Year Limited Warranty

• KW181 1000W 18" Active Subwoofer

• ProX - X-QSC-KLA12 Flight Case for Two QSC KLA12 Speakers axqzcwbvwvzxtrceayedzwtwyrevf

• KW181 Soft Speaker Cover with Grille Guard

• SP-36 Speaker Pole for KLA181 Subwoofer (36")

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x QSC KLA12 12" 2-Way Line Array Loudspeaker (Black)

  Configuration	Active 2-Way
  Total Power Capacity	1000 W
  Amplifier Power Rating	LF: 500 W HF: 500 W
  Amplifier Class	Class-D

  HF Driver	1 x 1.75" / 44 mm Compression Driver
  LF Driver	1 x 12" / 305 mm Woofer

  Frequency Range	44 Hz to 20 kHz -10 dB
  Frequency Response	49 Hz to 18 kHz -6 dB
  Maximum SPL	128 dB (Peak)
  Coverage Angle	90° H x 18° V
  I/O Impedance	XLRInput: 40 kOhms (Balanced) 20 kOhms (Unbalanced)
  Protections	Excursion, Overcurrent, Thermal

  Audio I/O	1 x XLR Line Input 1 x XLR Line Output 1 x Euroblock Euroblock is Remote Gain Connector

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  AC Power Connector	1 x powerCON Input 1 x powerCON Output
  Current Consumption	100 VAC: 2.3 A (1/8 Power) 120 VAC: 2.01 A (1/8 Power) 230 VAC: 1.13 A (1/8 Power)

  Cooling	Fan (Variable Speed)
  Construction Material	ABS, Metal Grille
  Dimensions	15.0 x 23.4 x 16.6" / 382.0 x 594.0 x 422.0 mm
  Weight	54 lb / 25 kg

  Box Dimensions (LxWxH)	26.0 x 21.0 x 18.0"

• QSC KW181 1000W 18" Active Subwoofer

  Configuration	Active Subwoofer
  Total Power Capacity	1000 W RMS 2000 W Peak
  Amplifier Class	Class-D

  LF Driver	1 x 18" / 457.2 mm Woofer

  Frequency Response	40 Hz to 112 Hz -6 dB 35 Hz to 129 Hz -10 dB
  Maximum SPL	135 dB (Peak)
  I/O Impedance	Input: 38 kOhms (Balanced) 19 kOhms (Unbalanced)
  Protections	Excursion, Overcurrent, Thermal

  Audio I/O	2 x Combo XLR / 1/4" TRS Line/Mic Input 2 x XLR Line Output 1 x Euroblock Remote Input

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  AC Power Connector	1 x IEC (Locking)
  Current Consumption	100 VAC: 2.3 A 120 VAC: 2.01 A 230 VAC: 1.13 A

  Cooling	Fan (Variable Speed)
  Construction Material	Metal Grille, Plywood
  Dimensions	20.1 x 23.4 x 29.9" / 510.0 x 595.0 x 761.0 mm (with Casters)
  Weight	88 lb / 40 kg

  Box Dimensions (LxWxH)	35.0 x 23.0 x 23.0"

• ProX X-QSC-KLA12 Flight Case for Two QSC KLA12 Speakers

  Type	Case
  Interior Dimensions	16.5 x 24.5 x 15" / 419.1 x 622.3 x 381 mm
  Carrying/Transport Options	Recessed Handle
  Type of Closure	Latch
  Number of Casters	4
  Material of Construction	Plywood, Rubber
  Exterior Dimensions (W x H x D)	18 x 33 x 33" / 457.2 x 838.2 x 838.2 mm
  Weight	71 lb / 32.2 kg

  Box Dimensions (LxWxH)	34.0 x 29.0 x 19.0"

• QSC KW181 Soft Speaker Cover with Grille Guard

  Type	Cover
  Interior Dimensions	20.1 x 23.4 x 29.9" / 51 x 59.5 x 76.1 cm
  Material of Construction	Cordura, Nylon

  Box Dimensions (LxWxH)	27.0 x 23.18 x 4.41"

• QSC SP-36 Speaker Pole for KLA181 Subwoofer (36")

  Type	Subwoofer Pole
  Mount Size	1-3/8"
  Shaft Length	36" / 914.4 mm

  Box Dimensions (LxWxH)	36.0 x 2.0 x 2.0"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
