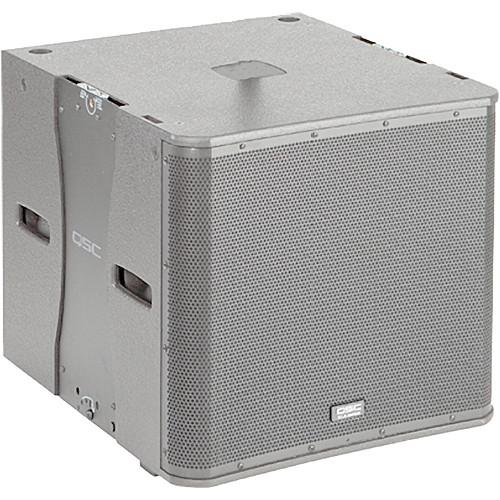

User Manual for QSC KLA181 Line Array Subwoofer Click to enlarge the picture
Contents of the user manual for the QSC KLA181 Line Array Subwoofer
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
|
User manual for the QSC KLA181 Line Array Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description QSC PA Speakers Buying Guide Read More fetqwtuuxzvbtvawy - KLA Introduction
- KLA deployment
- The Active System Solution
The QSC KLA181 Line Array Subwoofer is an 18" active subwoofer and is designed to compliment QSC's KLA12 2-Way Line Array Loud Speaker. The KLA 181 features an energy efficient 1000 watt power module. A polarity switch controls low frequency directivity and its pole receptacle is capable of mounting up to 2 KLA12 2-Way Line Array Loud Speakers.QSC's DEEP DSP algorithm provides extended bass by actively managing low-frequency transients. GuardRail protection circuitry prevents the amplifier module from unnatural and destructive clipping. An auto-standby mode will auto-engage after 5 minutes of inactivity to save energy. XLR and PowerCon input and thru connectors provide connection versatility, while a Phoenix connector allows daisy-chaining. - High acoustic output (135dB SPL peak)
- Frequency range down to 33Hz (-10dB)
- Extensive DSP further enhances and protects performance
- PowerCon input and thru connections
- Threaded pole-cup receptacle for free-standing applications
- Suspension made possible via M10 fittings or KLA12AF Array Frame
- Integrated threaded pole mount supports up to two KLA12 enclosures
UPC: 684284058782 In the Box QSC KLA181 Line Array Subwoofer (White) Quick-Start Guide Warning Information Sheet KLA181 Subwoofer Assembly AC PowerCon Power Cord (CEE 7/7), 3.6 Meter AC PowerCon Power Cord (NEMA 5-15 - USA style), 12 Foot XLR Audio Loop-thru Cable, 3 Foot PowerCon Loop-thru Power Cord, 3 Foot Hex Key, 6mm Euro-style Connector Plug, 3-pin 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC KLA181 Line Array Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC KLA181 Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | | | Frequency Response | 38 Hz -6 dB
33 Hz -10 dB | | Maximum SPL | 135 dB (Peak) | | I/O Impedance | XLRInput:
40 kOhms (Balanced)
20 kOhms (Unbalanced) | | Protections | Excursion, Overcurrent, Thermal | | | | Audio I/O | 1 x XLR Line Input
1 x XLR Line Output
1 x Euroblock Euroblock is Remote Gain Connector | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | Current Consumption | 100 VAC:
2.3 A
120 VAC:
2.01 A
230 VAC:
1.13 A | | | | Cooling | Fan (Variable Speed) | | Construction Material | Metal Grille, Plywood | | Dimensions | 21.6 x 23.1 x 25.7" / 547.0 x 586.0 x 633.0 mm | | Weight | 100 lb / 45.3 kg | | | | Package Weight | 118.4 lb | | Box Dimensions (LxWxH) | 33.0 x 28.0 x 27.0" |
