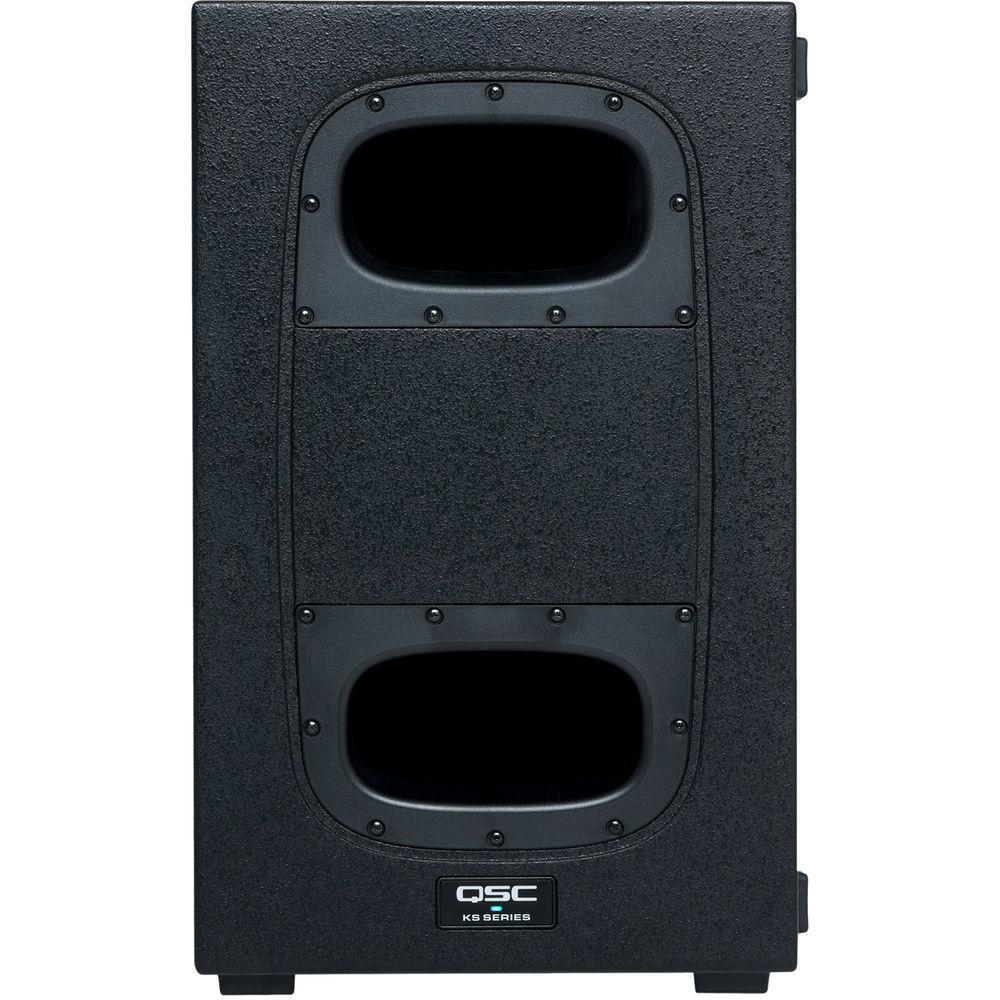

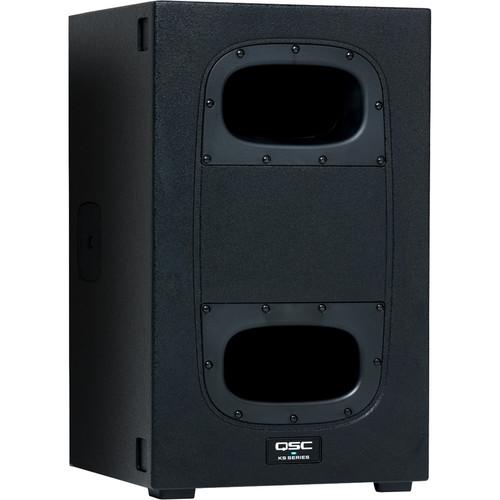

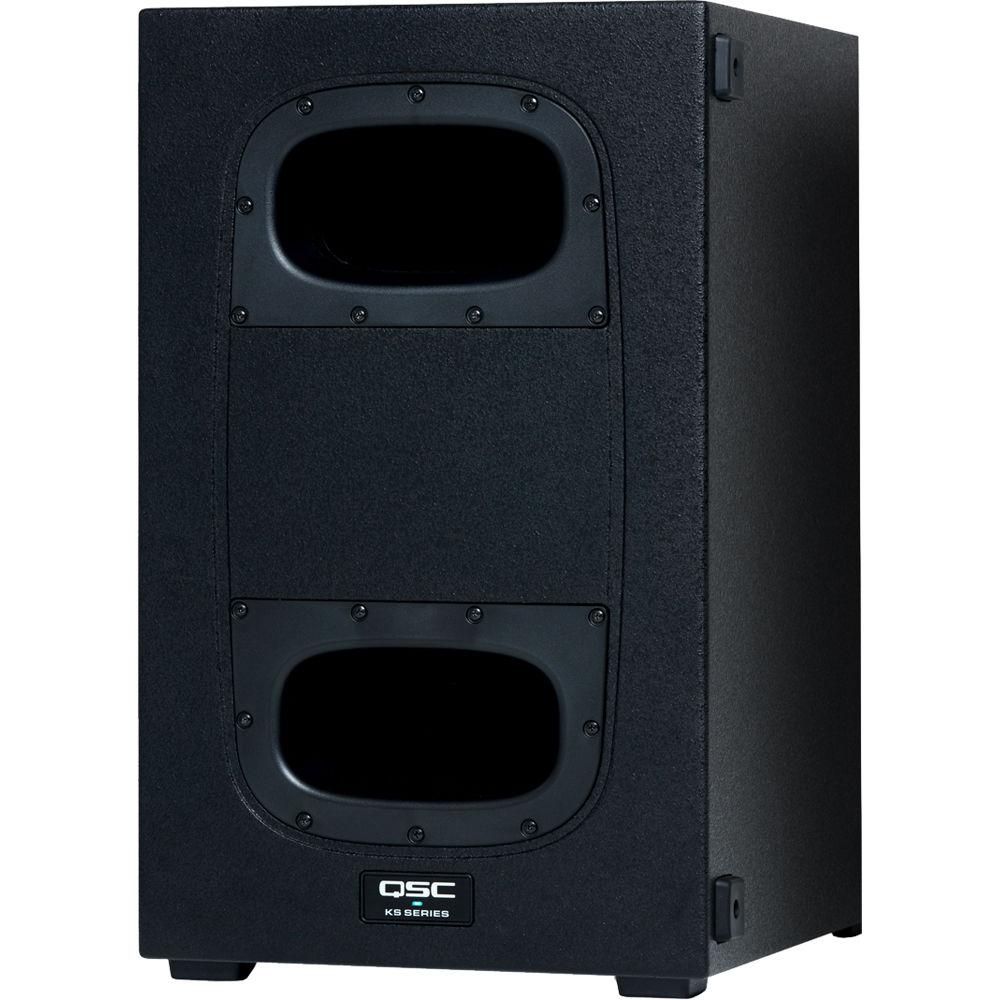

Product description QSC PA Speakers Buying Guide Read More The QSC KS112 is a compact, powered subwoofer for mobile entertainers, AV production and rental professionals, as well as modestly-sized performance venues. The subwoofer features a 2000W Class-D amplifier that powers the 12", long-excursion woofer in a 6th order band-pass design with a frequency response of 41 to 108 Hz (-6 dB) and a peak SPL of 128 dB (@ 3.3').

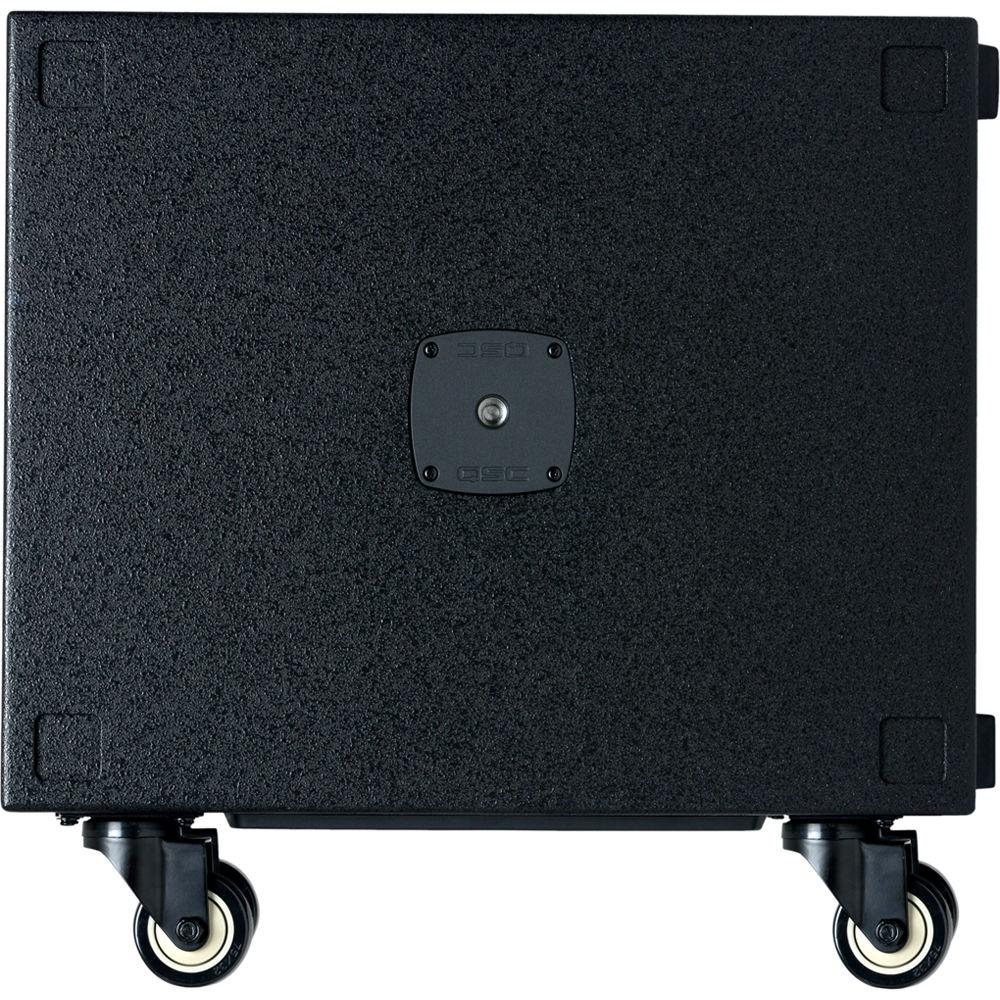

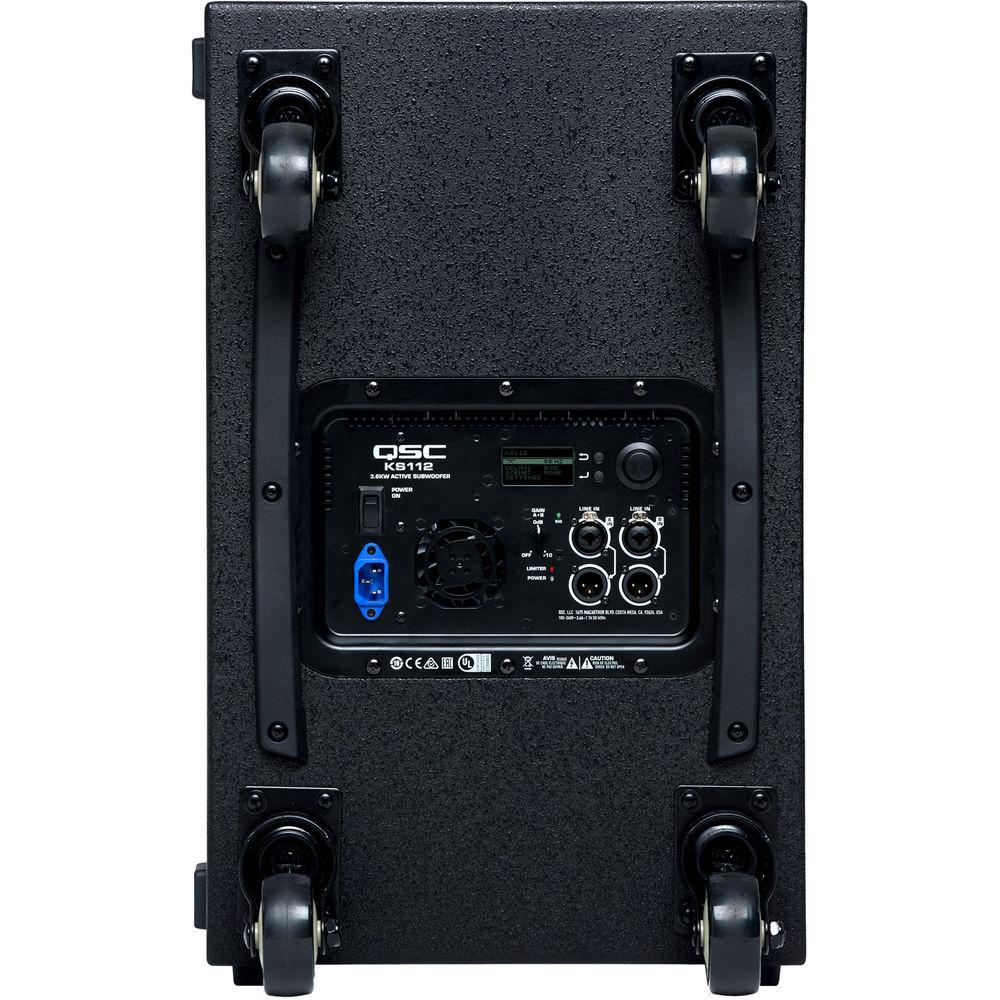

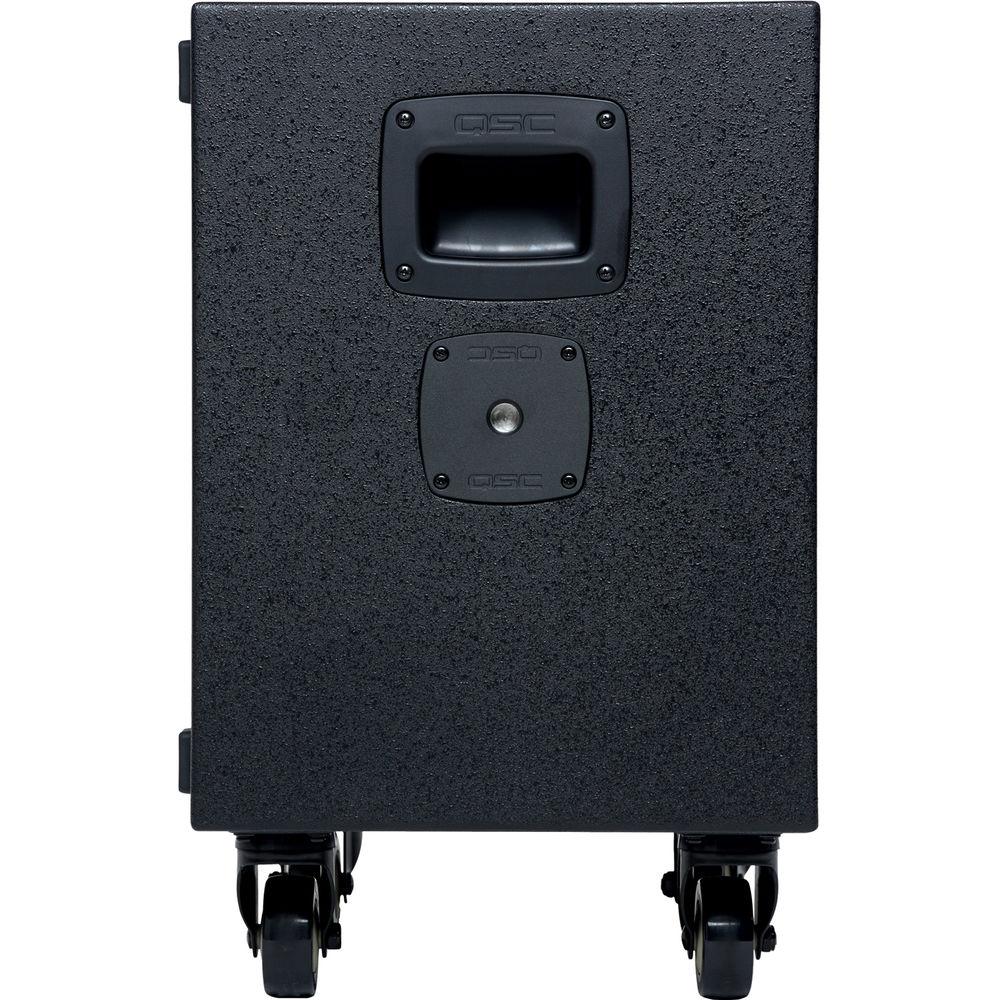

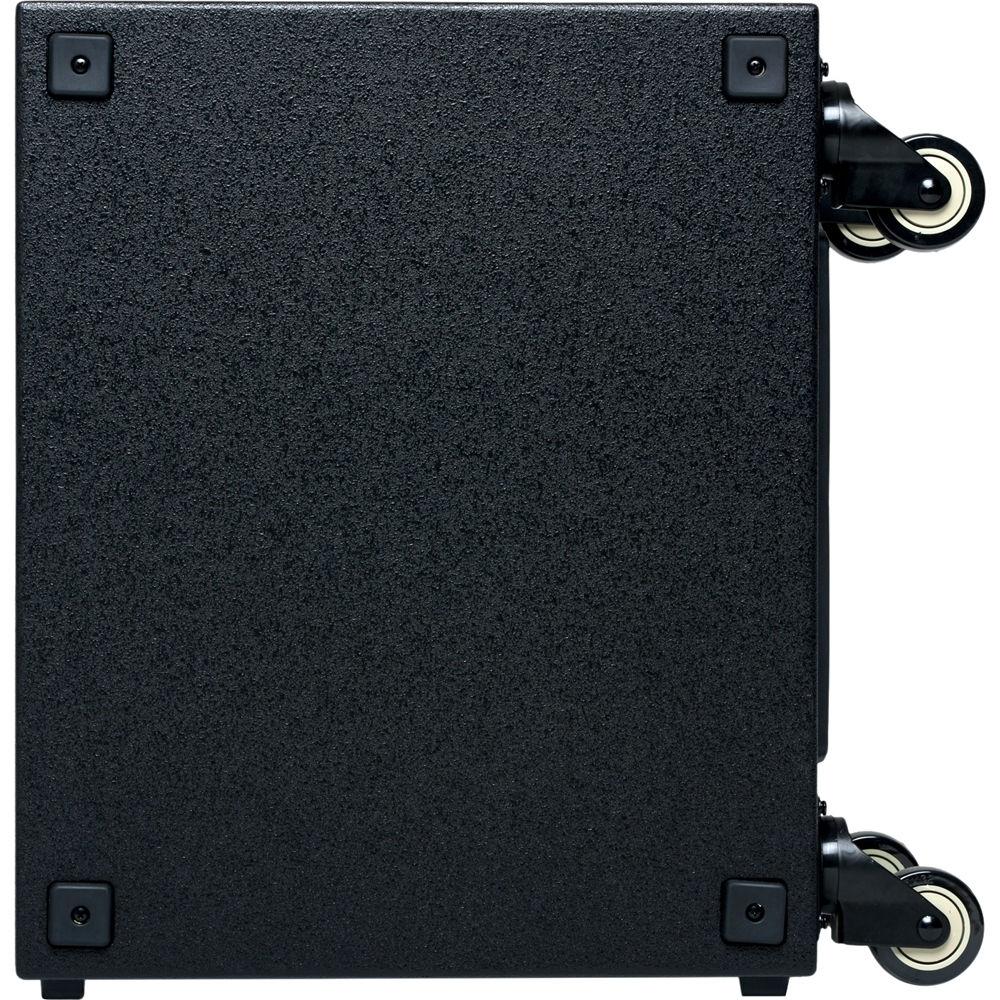

The subwoofer can be deployed in a vertical or horizontal position and features M20 speaker pole fittings in either position, while the 15mm Baltic birch enclosure features a rugged paint designed for long-life and lasting durability. The rear panel offers an LCD control module with variable crossover and savable and recallable scenes, as well as Intrinsic Correction tuning and loudspeaker management. There are two combo XLR-1/4" inputs and two XLR "Pass-Thru" outputs. The KS112 ships with a locking IEC power cord and four low-noise, heavy-duty casters. -
- High-output in an ultra-compact form factor
- 2000W Class-D amplifier module
- 12", long-excursion driver; 6th order bandpass design
- Variable crossover and savable/recallable scenes for commonly-used applications
- Intrinsic Correction tuning and loudspeaker management
- Refined, professional appearance looks great in any application
- Rugged painted wood enclosure for long life and lasting durability

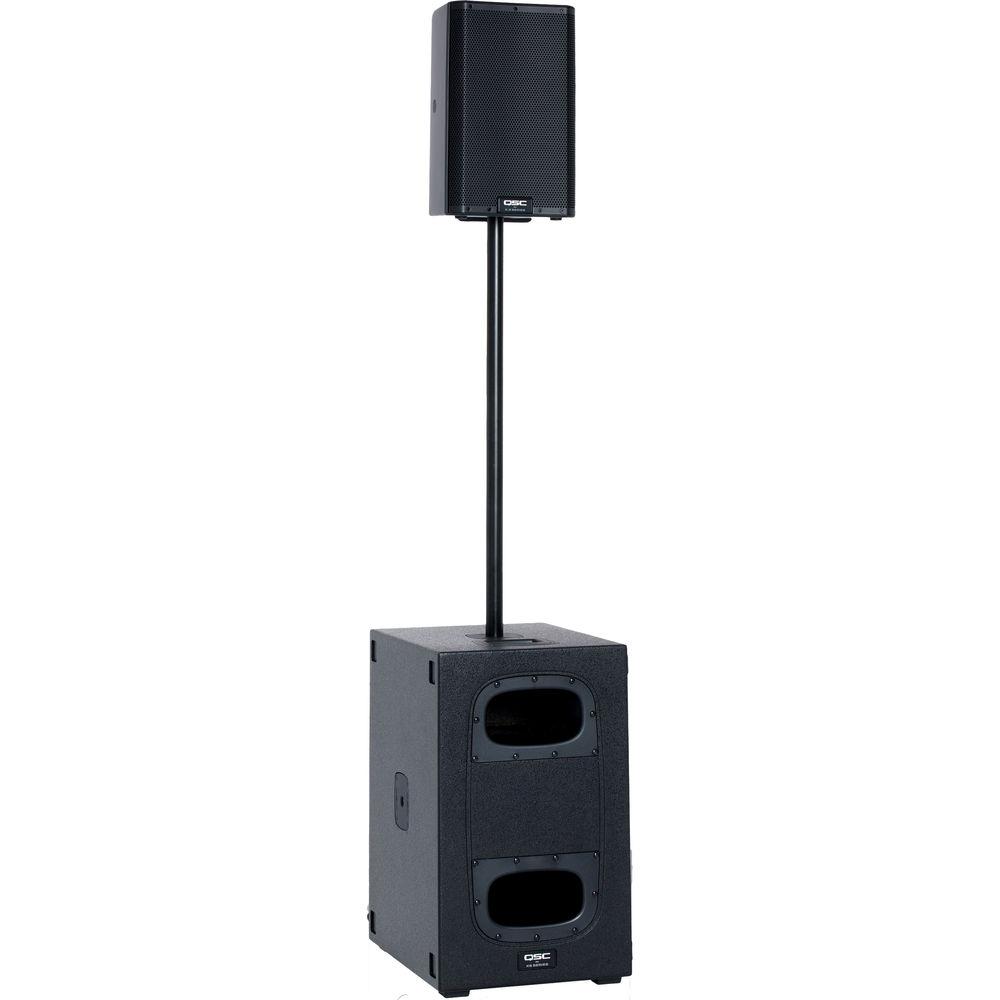

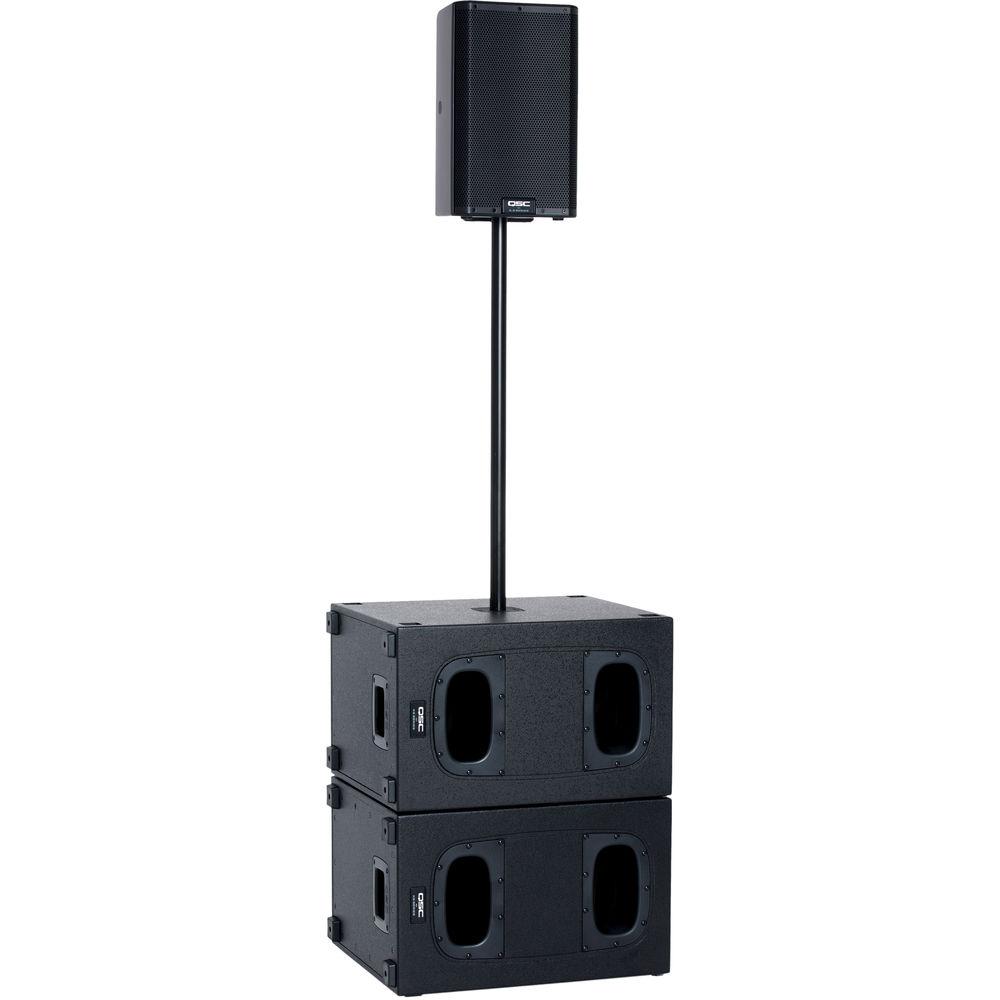

- Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
- Optional KS-LOC security cover prevents unauthorized tampering of controls (sold separately)
- Complete EASE & CAD information available

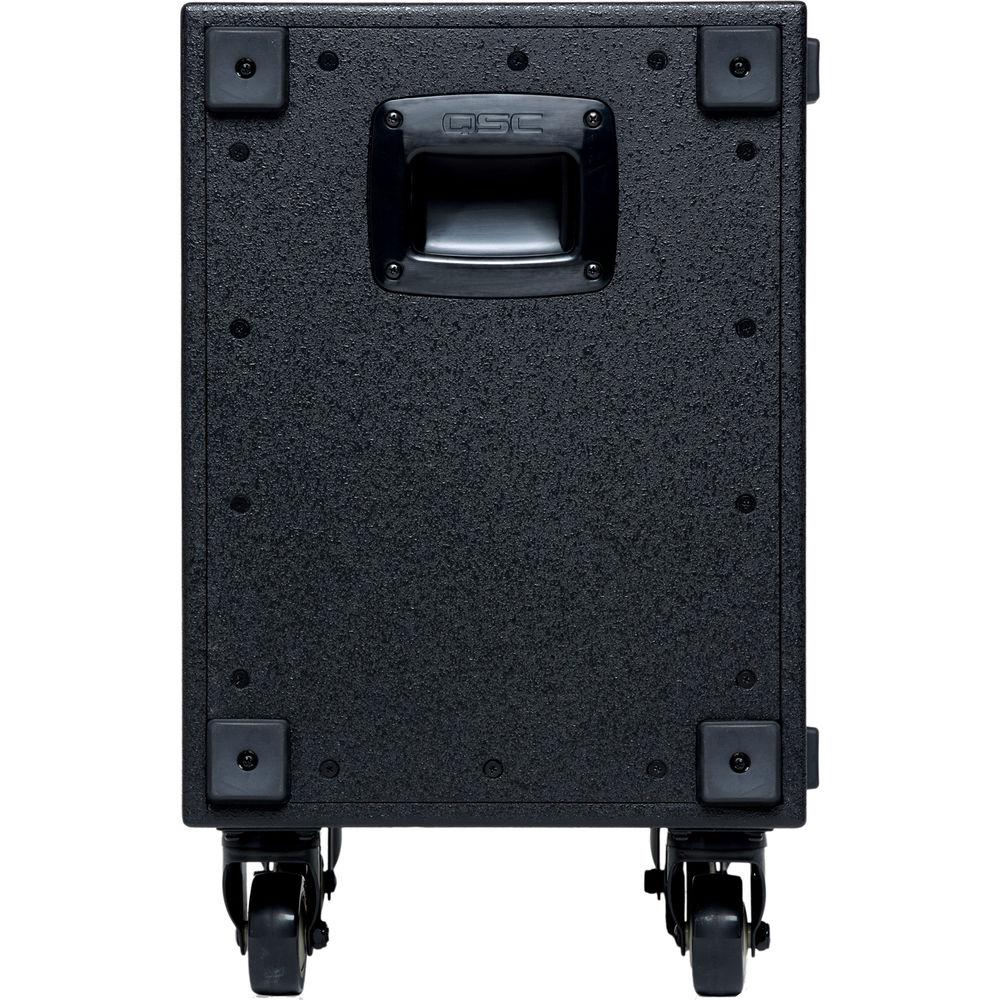

UPC: 684284071163 In the Box QSC KS112 - 2000W 12" Compact Powered Subwoofer Locking IEC Power Cord 4 x Heavy-Duty Casters (Low-Noise) Limited 3-Year Warranty, Extended to 6 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC KS112 - 2000W 12" Compact Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC KS112 Specs | | | Configuration | Active Subwoofer | | Enclosure Type | Bandpass Subwoofer 6th Order Bandpass | | Total Power Capacity | 2000 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Range | 38 Hz to 121 Hz -10 dB | | Frequency Response | 41 Hz to 108 Hz -6 dB | | Maximum SPL | 128 dB (Peak) | | | | Audio I/O | 2 x Combo XLR / 1/4"
2 x XLR Male Thru/Output | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC (Locking) | | Current Consumption | 100 VAC:
2.4 A
120 VAC:
2 A
240 VAC:
1.3 A | | | | Cooling | Fan (Variable Speed) | | Construction Material | Plywood | | Certifications | CE, FCC, RoHS, UL, WEEE, as per Manufacturer | | Dimensions | 24.5 x 15.5 x 24.3" / 622.3 x 393.7 x 616.0 mm | | Weight | 62.6 lb / 28.4 kg | | | | Package Weight | 76.75 lb | | Box Dimensions (LxWxH) | 29.2 x 27.2 x 20.1" |
