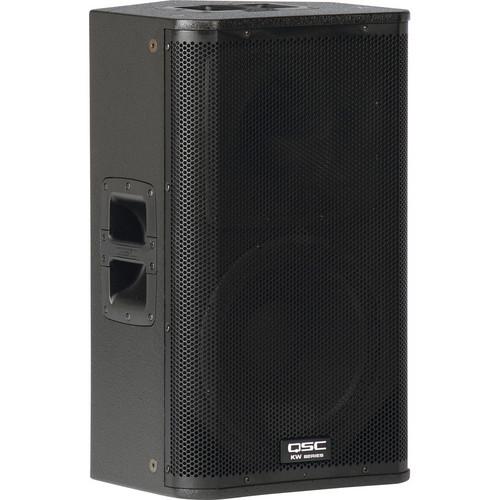

User Manual for QSC KW122 1000W 12" Active 2-Way Loudspeaker Stage Monitor Click to enlarge the picture
Contents of the user manual for the QSC KW122 1000W 12" Active 2-Way
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
|
User manual for the QSC KW122 1000W 12" Active 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description QSC PA Speakers Buying Guide Read More vuzxfrbcasczstr The KW122 from QSC is a professional-quality active 2-way PA loudspeaker that can also be used as a stage monitor speaker. Ideal for music and speech applications, the lightweight and rugged birch cabinet houses a 12" woofer and a 1.75" compression tweeter to deliver crisp, natural audio with a wide frequency response. A pair of efficient Class-D amplifiers provide a combined power of 1000W for strong audio with low distortion. Directivity Matched Transition technology provides matched low and high frequency coverage across your entire listening area to eliminate "dead" and "hot" zones.
The speaker offers excellent connectivity, with XLR/TRS combo inputs and line-level RCA inputs for accepting a variety of sound sources. Up to 3 audio sources can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining. Extensive internal DSP includes Intrinsic Correction, DEEP, and GuardRail technologies to provide terrific sonic clarity and component protection for reliable operation.
Onboard control options allow you to adjust EQ to perfectly match your surroundings and applications. You can also use the rear-panel Phoenix connector to connect an external potentiometer (not included) for remote gain control. The speaker has a standard 35mm pole socket with Tilt-Direct technology. This technology lets you simply turn a dial to give the speaker a 7.5° downward tilt to maintain maximum coverage from high mounting positions. The cabinet has integrated M10 suspension points for easy installation as well as ergonomic cast-aluminum handles for easy transport. - Can be used as a PA loudspeaker or as a stage monitor for performers
- Lightweight and durable texture-painted birch cabinet with road-worthy 16-gauge steel grille
- A 12" woofer and a 1.75" compression tweeter deliver crisp, natural audio with a wide frequency response
- Efficient Class-D amplifiers provide a combined power of 1000W for strong audio with low distortion
- Directivity Matched Transition technology provides matched low and high frequency coverage across your entire listening area to eliminate "dead" and "hot" zones
- A conical wave guide eliminates the phase distortions of typical asymmetric horns for more natural audio reproduction
- XLR/TRS combo inputs and line-level RCA inputs allow the speaker to accept up to 3 audio sources that can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining
- Intrinsic Correction maps 65-75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target, for excellent performance across the entire sound field
- DEEP technology and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies
- GuardRail protection technology protects both the amplifier module and your performance from unnatural and destructive clipping
- Multiple EQ modes let you optimize the speaker's output for specific applications with the flip of a switch
- The onboard LED indicator can be set to illuminate when power is on, to only illuminate when the clip limiter circuit is engaged, or to always be off
- The rear-panel Phoenix connector allows you to connect an external potentiometer (not included) for remote gain control. You can even control multiple daisy-chained speakers from a single control pot
- The standard 35mm pole socket with Tilt-Direct technology lets you simply turn a dial to give the speaker a 7.5° downward tilt to maintain maximum coverage and avoid reflections from high mounting positions
- Integrated M10 suspension points for easy installation
- Ergonomic cast-aluminum handles for easy transport
- A locking power cable prevents accidental disconnection, while an automatic standby mode conserves energy and extends the life of the loudspeaker
UPC: 684284057808 In the Box QSC KW122 1000W 12" Active 2-Way Loudspeaker/Stage Monitor Power Cord 3-Year Limited Warranty (Extends to 6 Years with Product Registration) User Manual PDF 4.9mbvuzxfrbcasczstr Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC KW122 1000W 12" Active 2-Way Loudspeaker Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC KW122 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W RMS
2000 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.75" / 44 mm Compression Driver | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Response | 53 Hz to 18 kHz -6 dB
50 Hz to 20 kHz -10 dB | | Maximum SPL | 131 dB (Peak) | | Coverage Angle | 75° H x 75° V | | Gain Range | 36 dB | | I/O Impedance | Mic Input:
38 kOhms (Balanced)
19 kOhms (Unbalanced, Unity Gain)
RCAInput:
10 kOhms | | Protections | Excursion, Overcurrent, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Line/Mic Input
1 x Stereo RCA Line Input
2 x XLR Line Output
1 x XLR Mix Output
1 x Euroblock Remote Input | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC (Locking) | | Current Consumption | 100 VAC:
2.3 A
120 VAC:
2.01 A
230 VAC:
1.13 A | | | | Cooling | Fan (Variable Speed) | | Construction Material | Metal Grille, Plywood | | Dimensions | 26.0 x 15.0 x 15.4" / 660.0 x 381.0 x 391.0 mm | | Weight | 49 lb / 22.2 kg | | | | Package Weight | 64.8 lb | | Box Dimensions (LxWxH) | 28.0 x 21.0 x 20.5" |
