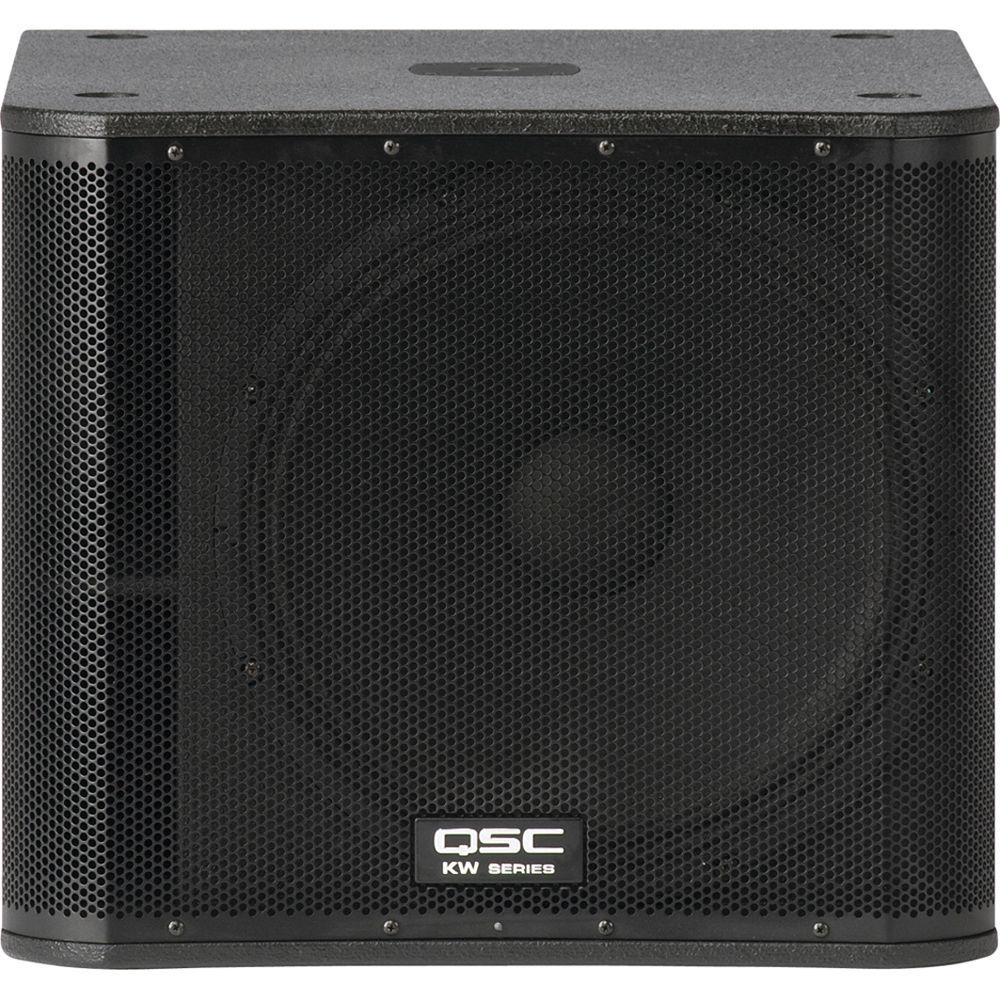

User Manual for QSC KW181 1000W 18" Active Subwoofer Click to enlarge the picture
Contents of the user manual for the QSC KW181 1000W 18" Active Subwoofer
- Product category: PA Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC PA Speakers
 |
User manual for the QSC KW181 1000W 18" Active Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description QSC PA Speakers Buying Guide Read More The KW181 from QSC is a professional-quality active 3-way PA loudspeaker. Ideal for low frequency reinforcement of KW-series loudspeakers, the lightweight and rugged birch cabinet houses an 18" woofer to deliver deep, thumping bass with frequencies as low as 35Hz. An efficient Class-D amplifier provides an output power of 1000W for strong audio with low distortion.
The sub offers excellent connectivity, with XLR/TRS combo inputs that accept mic or line signals. Direct XLR line outputs are provided for each channel. Extensive internal DSP includes Intrinsic Correction, DEEP, and GuardRail technologies to provide terrific sonic clarity and component protection for reliable operation.
Onboard control options allow you to adjust EQ to perfectly match your surroundings and applications. You can also use the rear-panel Phoenix connector to connect an external potentiometer (not included) for remote gain control. The sub has a standard 35mm pole socket and a threaded pole for securely mounting a loudspeaker on top of the subwoofer. It also has ergonomic cast-aluminum handles and low-noise casters for easy transport. - Ideal for low frequency reinforcement of KW-series loudspeakers
- Lightweight and durable texture-painted birch cabinet with road-worthy 16-gauge steel grille
- An 18" woofer delivers deep, thumping bass with frequencies as low as 35Hz
- An efficient Class-D amplifier provides an output power of 1000W for strong audio with low distortion
- XLR/TRS combo inputs accept mic and line level signals. Direct XLR line outputs are provided for each channel
- Intrinsic Correction maps 65-75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target, for excellent performance across the entire sound field
- DEEP technology and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies
- GuardRail protection technology protects both the amplifier module and your performance from unnatural and destructive clipping
- Multiple EQ modes let you optimize the sub's output for specific applications with the flip of a switch
- The onboard LED indicator can be set to illuminate when power is on, to only illuminate when the clip limiter circuit is engaged, or to always be off
- The rear-panel Phoenix connector allows you to connect an external potentiometer (not included) for remote gain control. You can even control multiple daisy-chained units from a single control pot
- The sub has a standard 35mm pole socket and a threaded pole for securely mounting a loudspeaker on top of the subwoofer
- Ergonomic cast-aluminum handles and low-noise casters for easy transport
- A locking power cable prevents accidental disconnection, while an automatic standby mode conserves energy and extends the life of the subwoofer
UPC: 684284057839 In the Box QSC KW181 1000W 18" Active Subwoofer Power Cord Threaded Pole 3-Year Limited Warranty (Extends to 6 Years with Product Registration) User Manual PDF 4.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC KW181 1000W 18" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC KW181 Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W RMS
2000 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 457.2 mm Woofer | | | | Frequency Response | 40 Hz to 112 Hz -6 dB
35 Hz to 129 Hz -10 dB | | Maximum SPL | 135 dB (Peak) | | I/O Impedance | Input:
38 kOhms (Balanced)
19 kOhms (Unbalanced) | | Protections | Excursion, Overcurrent, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Line/Mic Input
2 x XLR Line Output
1 x Euroblock Remote Input | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC (Locking) | | Current Consumption | 100 VAC:
2.3 A
120 VAC:
2.01 A
230 VAC:
1.13 A | | | | Cooling | Fan (Variable Speed) | | Construction Material | Metal Grille, Plywood | | Dimensions | 20.1 x 23.4 x 29.9" / 510.0 x 595.0 x 761.0 mm (with Casters) | | Weight | 88 lb / 40 kg | | | | Package Weight | 120.0 lb | | Box Dimensions (LxWxH) | 35.0 x 23.0 x 23.0" |
