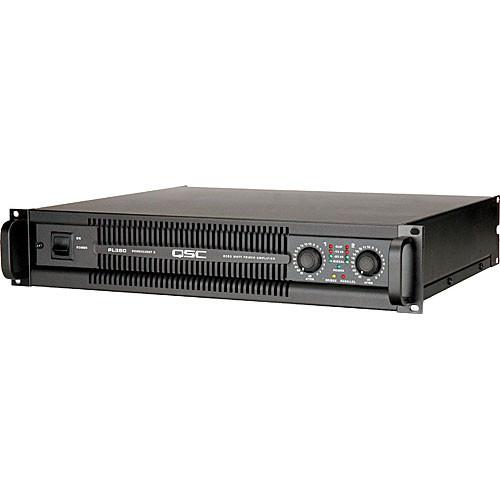

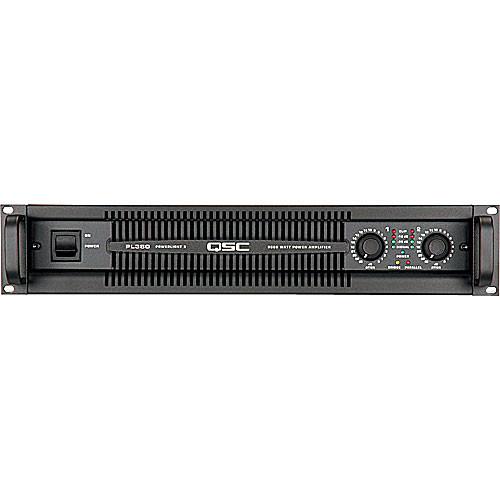

Product description The QSC PL380 Amplifier is part of their PowerLight 3 series. The PowerLight 3 amplifiers are designed to handle the most demanding applications and are ideal for live sound reinforcement, club installation, theater sound and more.The PL380 features 1500 watts of power at 8Ω and includes a host of professional features that include PowerLight switchmode power supply, flow-thru air path and solid aluminum heat sinks, Dataport support for remote control via computer or external DSP-4 modules.Of course the PowerLight 3 series delivers pristine sound quality and a wide 20Hz to 20kHz frequency response. Additional features include detented gain controls with 1dB steps, front and rear panel LEDs and defeatable clip limiters. - XLR Male and XLR Female Connections

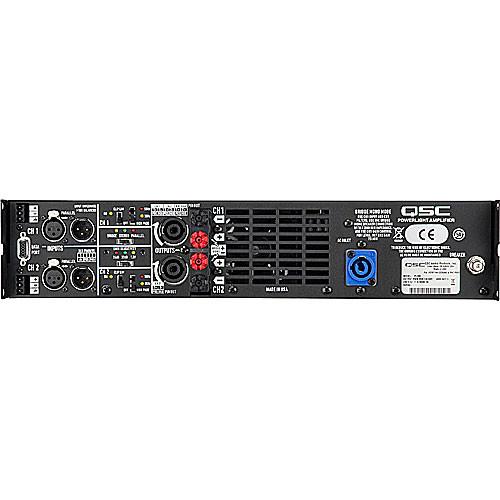

- The rear panel features balanced XLR male and female connections for loop-through connectivity.
- Flow-Thru Air Cooling
- A flow-thru, front-to-back air path and solid aluminum heat sinks provide maximum cooling.
- Three Input Gain Settings
- The PowerLight 3 series feature 26dB, 32dB, or 1.2V input gain settings.
UPC: 684284053923 In the Box QSC PL380 PowerLight 3 Series 1500 Watt Professional Power Amplifier 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC PL380 PowerLight 3 Series 1500 Watt Professional Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC PL380 Specs | Power Rating | Stereo Mode:
8Ω EIA 1 kHz 1% THD - 1500W4Ω EIA 1 kHz 1% THD - 2500W
2Ω EIA 1 kHz 1% THD - 4000WBridged Mono:
8Ω EIA 1 kHz 1% THD - 5000W4Ω EIA 1 kHz 1% THD - 8000W | | Damping Factor | Not Specified By Manufacturer | | Input Sensitivity | 26dB Setting - 5.27V
32dB Setting - 2.67V | | Input Impedance | > 10kΩ balanced, or unbalanced | | Gain | 39.1dB | | Frequency Response | 20Hz to 20kHz, +/- 0.2dB | | Signal-to-Noise Ratio | -104dB | | Total Harmonic Distortion (THD) | 0.1% @ 2Ω
0.03-0.06% @ 4Ω 0.01-0.03% @ 8Ω | | Input Connections | Input: XLR Male, XLR Female and 3-pin detachable terminal blocks (1 each per channel)
DataPort: HD-15, input signal in parallel with XLR input connectors | | Output Connectors | Output: Neutrik Speakon (ch 1 wired to both channels) and 5-way binding posts | | Controls Front Panel | AC Power Switch
Gain Controls, 21 detents, 1 dB steps (each channel) | | Controls (Rear) | Input Mode: Bridge (Yellow), Stereo (Green), or Parallel (Orange)
Gain / Sensitivity: 26dB (Orange), 32dB (Green), or 1.2V (Yellow)High Pass (each channel): 3Hz (Off), 30Hz (Yellow), or 50Hz (Orange)
Clip Limiter (each channel): Off, On (Yellow) | | Indicators | Clip Limiter (each channel): Off, On (Yellow) | | Cooling | Flow-thru air path and solid aluminum heat sinks | | Power Consumption | 120V 50/60Hz - 18A
230V 50Hz - 11A | | Power Requirements | Not Specified By Manufacturer | | Dimensions (WxHxD) | 19 x 3.5 x 15.63" (48.3 x 8.9 x 39.7cm) | | Weight | 33.5 lbs (15.2kg) | | Specialties | Parallel Dataport, XLR/M and XLR/F connectors for simple loop-through connectivity | | | | Package Weight | 33.55 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 7.0" |
