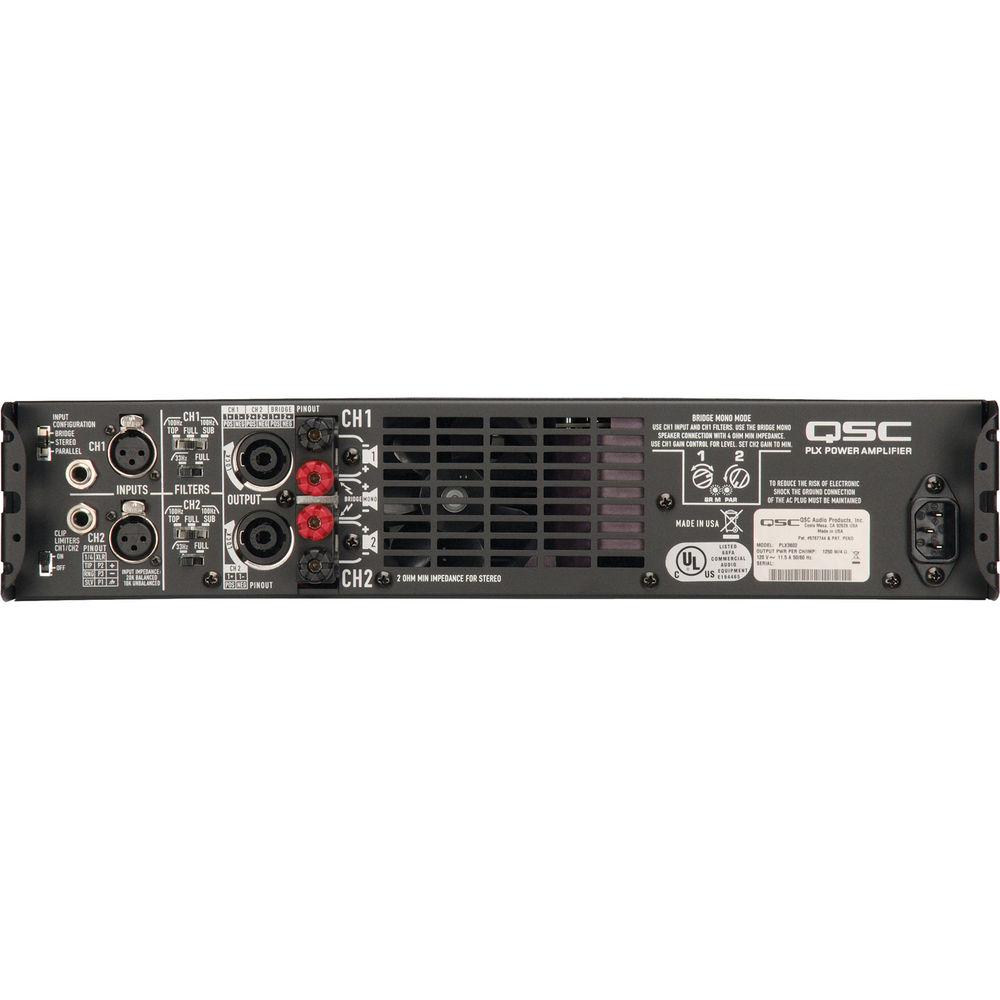

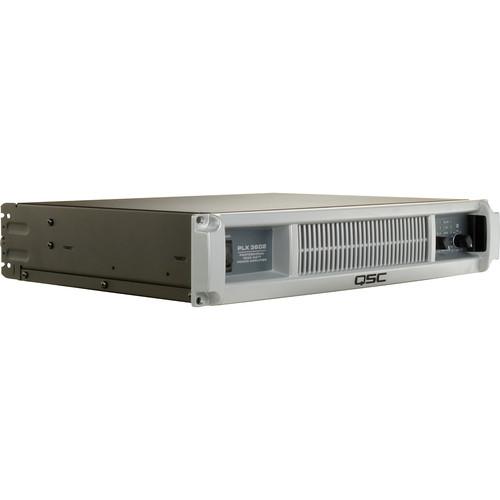

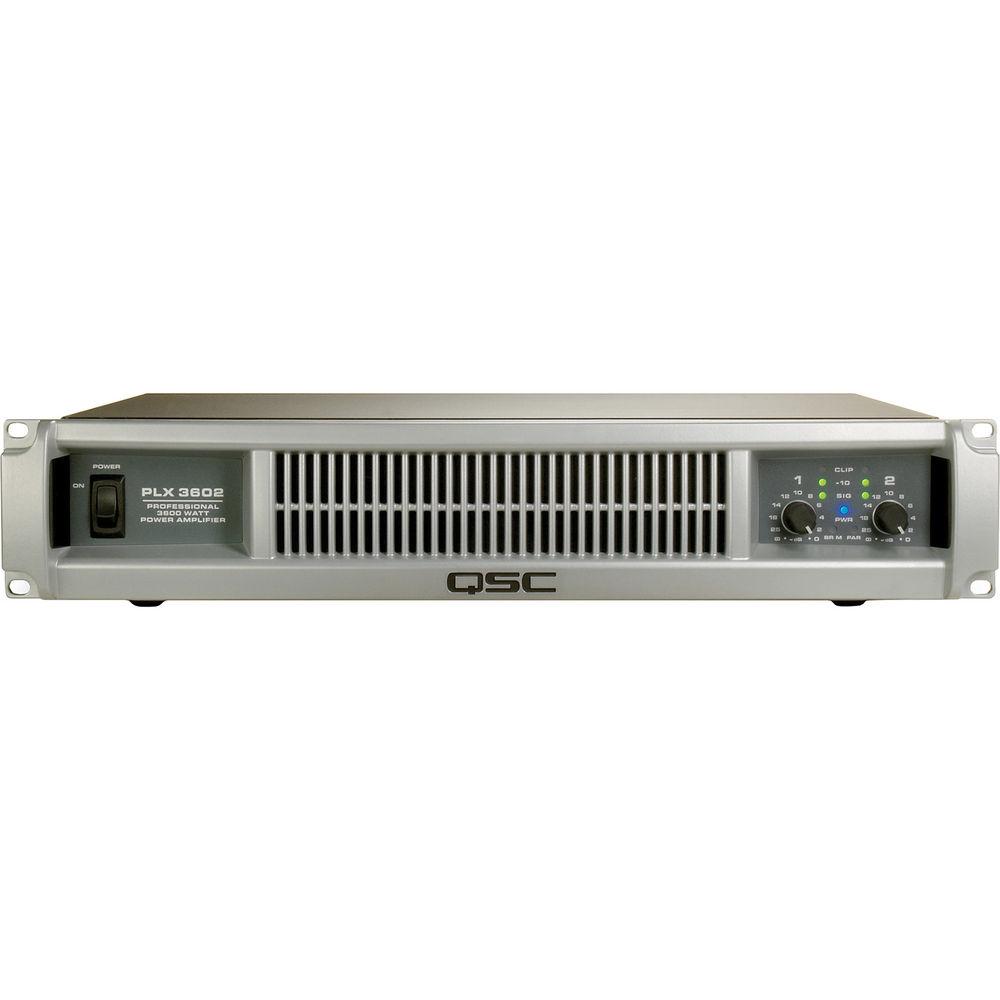

Product description The QSC PLX3602 is a lightweight rackmount stereo power amplifier, offering up 775 Watts per side at 8 Ohms, and weighing in at a mere 21 lbs. The unit is equipped with built-in subwoofer processing, filter switches, and front panel indication of bridge mono status. The PLX3602 is a worthy and versatile solution for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or who require extremely high power bridge mono operation for specific applications. - Lightweight, high-output stereo rackmount power amplifier
- 21-position front-panel gain controls for precise, repeatable amplifier adjustment
- Cooling design with front-exit hot air exhaust, Flow-through heat sinks require no filters, eliminating clogging
- Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection, stable into reactive or mismatched loads
- Fully selectable low frequency filtering with a choice of 30Hz or 50Hz roll-off
- Front panel LED power, clip, -10 dB, and signal present indicators for system monitoring and troubleshooting, bridge and parallel mode LED indicators
- 100 Hz high pass and low pass filters for bi-amping subwoofer and satellite systems without the need for an external crossover
- Switchable/defeatable 33 Hz infrasonic filters protect woofers from over-excursion damage, switchable/defeatable clip limiters
- Balanced XLR inputs with parallel TRS connectors and loop-through support
- Speakon(TM) NL-4 output connectors with positive-locking speaker connection; Ch. 1 output uses all 4 wires for single-cable connection to bi-amplified speakers
UPC: 684284050915 In the Box QSC PLX-3602 - PLX2 Series Stereo Power Amplifier - 775W per Channel into 8 Ohms Power Cable Limited 3-Year Warranty, Extendable to 6 with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC PLX-3602 - PLX2 Series Stereo Power Amplifier - 775W per Channel into 8 Ohms in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC PLX3602 Specs | Power Rating | Rating @ 1 kHz, THD=0.1%
1250W @ 4 Ohms Stereo (per channel)
775W @ 8 Ohms Stereo (per channel)
1800W @ 2 Ohms Stereo (per channel)
2600W @ 8 Ohms Bridged-Mono
3600W @ 4 Ohms Bridged-Mono
Rating @ 20 Hz - 20 kHz, THD=0.05%
1100W @ 4 Ohms Stereo (per channel)
725W @ 8 Ohms Stereo (per channel)
2500W @ 8 Ohms Bridged-Mono | | Damping Factor | >500 | | Input Sensitivity | 1.25 Vrms @8 Ohms | | Input Impedance | 20 kOhms, balanced
10 kOhms, unbalanced | | Gain | 36dB (@8 Ohms) | | Frequency Response | 20 Hz - 20 kHz, -0.5dB | | Signal-to-Noise Ratio | -107dB (20 Hz - 20 kHz) | | Total Harmonic Distortion (THD) | <0.02%, 20 Hz - 20 kHz | | Input Connections | 2 x XLR female, balanced
2 x 1/4" TRS phone, balanced | | Output Connectors | 2 x pair 5-way binding posts
2 x NL-4 Speakon | | Controls Front Panel | 2 x rotary Level Control knobs
1 x Power switch | | Controls (Rear) | 1 x Bridge/Stereo/Parallel Input Config. Switch
1 x Clip/Limiter
2 x Top 100 Hz HPF/Full/Sub 100 Hz LPF Filter switches
2 x 33 Hz HPF/Full (infrasonic) Filter switches | | Indicators | 2 x Ch.1,2 red Clip LEDs
2 x Ch.1,2 green -10dB LEDs
2 x Ch.1,2 green -35dB signal LEDs
1 x blue Power LED
1 x amber Parallel LED
1 x amber Bridge Mono LED | | Cooling | 1 x variable-speed fan (back-to-front airflow) | | Power Consumption | 1/8 Power (pink noise)
@8 Ohms: 7.7A/120V
@4 Ohms: 11.5A/120V
@2 Ohms: 18A/120V 1/3 Power (pink noise)
@8 Ohms: 13A/120V
@4 Ohms: 19.5A/120V
@2 Ohms: 31A/120V
Full Power
@8 Ohms: 25A/120V
@4 Ohms: 40A/120V
@2 Ohms: 63A/120V | | Power Requirements | 100, 120 or 220-240 VAC, 50- 60 Hz | | Dimensions | 19 x 3.5 x 14.9" (483 x 89 x 379mm); 2U | | Weight | 21 lbs (9.5 kg) | | Specialties | Detented Level Attenuators
Comprehensive Protection Circuitry
On/Off Muting, DC-fault Power Supply Shutdown | | | | Package Weight | 28.15 lb | | Box Dimensions (LxWxH) | 24.25 x 18.2 x 5.5" |
