Product description - Hands-On Review: QSC TouchMix-30 Pro

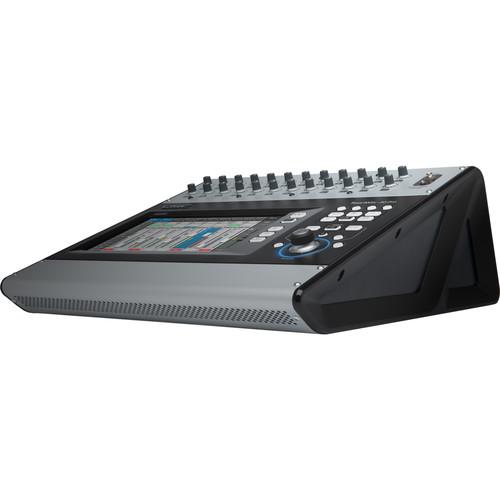

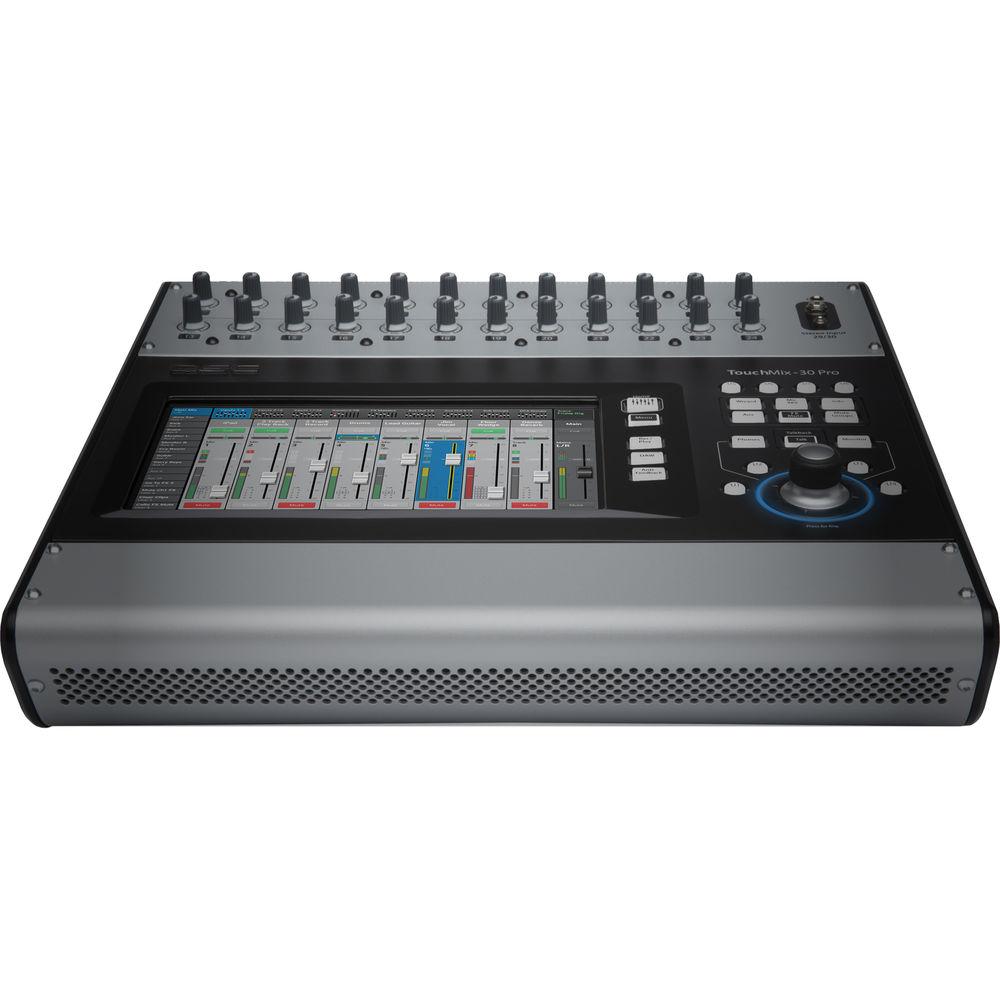

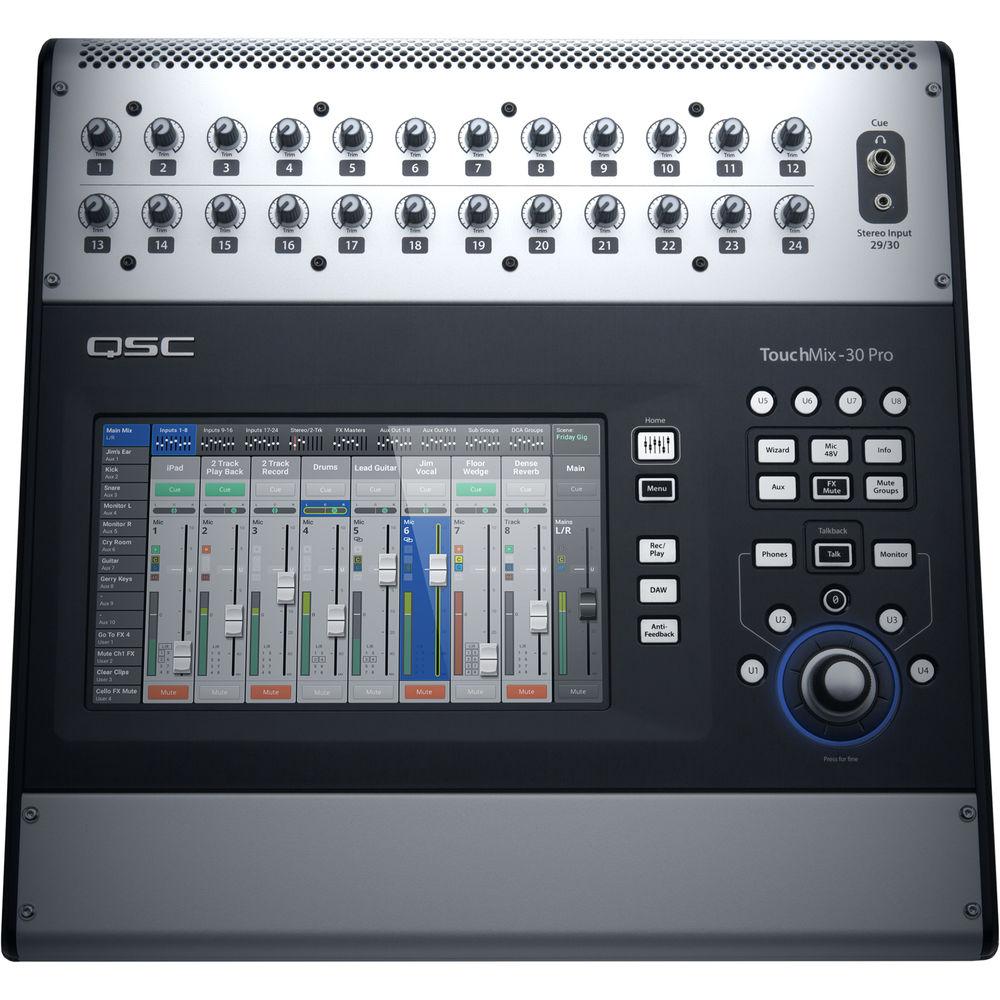

The TouchMix-30 Pro 32-Channel Compact Digital Mixer with Touchscreen from QSC is a 32-input digital mixer featuring 24 built-in mic/line preamplifiers, six stereo 1/4" inputs, a stereo 1/8" input, all of which can be controlled by its integrated touchscreen or wirelessly via an iOS or Android device connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-30's DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.
All of the outputs feature 1/3 octave graphic equalizers, 6-band parametric EQ, plus limiters, delay, and 12-band notch filters. Additionally, eight sub-groups are provided, each with 6-band full parametric EQ, variable high- and low-pass filters and limiters. Two full-featured Real Time Analyzers (RTA) help identify problem frequencies, while the integrated Wizards provide anti-feedback, room tuning, gain, and effects. The mixer is also capable of 32 channels of bidirectional multitrack recording with sampling frequencies up to 48 kHz to an optional external USB hard drive. -
- 32 inputs (24 mic/line, 6 line, 1 stereo USB playback)
- 24 Class-A microphone preamps deliver pristine, studio-quality audio
- 10" (diagonal) color, multi-touch capacitive touchscreen graphical user interface combined with hardware controls for fast and intuitive operation
- Intuitive Work Flow: Simple for the novice; fast for the professional
- Over 120 live instrument, microphone and other audio-source presets created in live environments provide mix-ready channel settings
- Anti-Feedback; Room Tuning; Gain and Effects wizards
- Comprehensive, on-board Info System guides and assists users
- 4-band full Parametric EQ, variable high- and low-pass filters on all input channels
- Gate, compressor and delay on all input channels
- All outputs feature 1/3-octave graphic equalization and 6-band parametric EQ plus limiters, delay and 12-band notch filters
- Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter. May be linked for stereo
- 8 DCA groups; 8 mute groups; 8 subgroups
- Two built-in Real Time Analyzers (RTA) provide instantaneous display of channel tonal balance and room response
- Six stereo effects processors plus pitch-correct offer studio-grade signal enhancements, without sacrificing Auxes or additional channels
- Touch-and-route Patch Matrix for easy “multing” of inputs to mixer channels
- Copy and paste function easily duplicates mixes, channels, EQ, dynamics and more
- Monitor Mixes: 14 mono mixes, may be paired for stereo. Two pairs of the Auxes can drive wired in-ear monitors (IEM) directly
- Records and plays back multitrack wave files (32 tracks) using external hard drive. Capable of recording all input channels plus a user-selected stereo output pair
- Interfaces with most DAW software running on Mac computers
- MP3 playback direct from USB
- Remote control via mobile devices over Wi-Fi
- Rackmountable with optional accessory kit
UPC: 684284067326 In the Box QSC TouchMix-30 Pro 32-Channel Compact Digital Mixer with Touchscreen IEC Power Cord Limited 1-Year Warranty, Extendable to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC TouchMix-30 Pro 32-Channel Compact Digital Mixer with Touchscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC TOUCHMIX-30 Specs | Display | 10" / 254 mm diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch sensing | | Input | 24 x Mic/Line, 20 XLR, 4 Combo XLR-1/4" / 6.35 mm
6 x Line, balanced, 1/4" / 6.35 mm TRS + 1 x Top panel 1/8" / 3.5 mm stereo
2 x Stereo USB / MP3 playback
Talkback: 1 x XLR (48 V available) | | Output | Main L/R: 2 x XLR line-level
Aux: 14 x XLR, line-level; (may be paired for stereo)
Stereo In-Ear Monitor: 2 x TRS, (16 Ohm minimum impedance) from Auxes 11/12 and 13/14
Stereo Headphone Cue: 1 x TRS, (line or headphone, 16 Ohm minimum impedance)
Monitor L/R: 2 x XLR, line-level | | Digital Connections | 2 x USB Type-A connector
1 x USB Type-B connector
1 x RJ-45 (connection for Wi-Fi router) | | Processing | Mic- and Line-Input Channel Processing
4-band Parametric EQ with Hi/Low Shelving Option
Variable 24 dB/octave HPF and LPF
Gate
Compressor
Delay (100 ms max)
Output Channel Processing
1/3 octave GEQ
6-band Parametric EQ
Variable High- and Low-Pass Filters
12-band Variable Notch Filters
Limiter
Delay
Sub Group Processing
6-band Parametric EQ with High- and Low-Pass Filters
Limiter | | Recording and Playback | 32 x 32 tracks direct to hard drive or DAW (Core Audio interface to Mac OS)
Stereo MP3 playback | | Groups | 8 x DCA Groups (with mutes)
8 x Mute Groups
8 x Sub Groups (may be linked in stereo pairs) | | Cue | Selectable
AFL
PFL
Solo in Place | | Effects | 6 simultaneous
Reverb
Echo
Delay
Chorus
Pitch Shift
Plus 1 Pitch Correct (assignable to any mono input channel) | | RTA | 2 x 1/3 Octave (1 assigned to the selected channel, 1 with user selectable source) | | Preset | User Scenes: 99
Factory Presets: 120
User Presets: 99 | | Control | External Control: TouchMix Control App for iPad and Android tablets controls all mixer functions via Wi-Fi. App runs on iOS and Android smartphones | | Wi-Fi | Requires user-supplied USB Wi-Fi dongle or external Ethernet Wi-Fi router (recommended) | | Sampling Frequency | 44.1/48 kHz | | THD | <0.005%, +4 dBu; 20 Hz to 20 kHz, unity gain, any input to any output | | Frequency Response | 20 Hz to 20 kHz, ±0.5 dB, any input to any output | | Dynamic Range | 105 dB | | EIN | -126 dBu | | Output Noise | Residual Output Noise: -86 dBu | | Crosstalk | -80 dB | | Signal to Noise Ratio | -94 dB | | Gain | Microphone Inputs: 75 dB (60 dB analog, 15 dB digital) | | Maximum Input Level | XLR Mic/Line: +16 dB
TRS Mic/Line: +26 dB
TRS Line Inputs: +24 dBu
Top Panel (1/8" Stereo Input): 0 dBv | | Maximum Output Level | +22 dBu (all line-level outputs) | | Phantom Power | 48 v, all mic and talkback inputs, individually switchable per input | | Regulatory Approvals | UL, CE, FCC (Class B), RoHS | | Line Voltage | 100 to 240 VAC, 50-60 Hz, 85 W | | Dimensions (HxWxD) | 7.5 x 16.9 x 18.1" / 19.1 x 42.9 x 46.0 cm | | Weight | 17.5 lb / 7.9 kg | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 23.3 x 19.0 x 11.3" |
