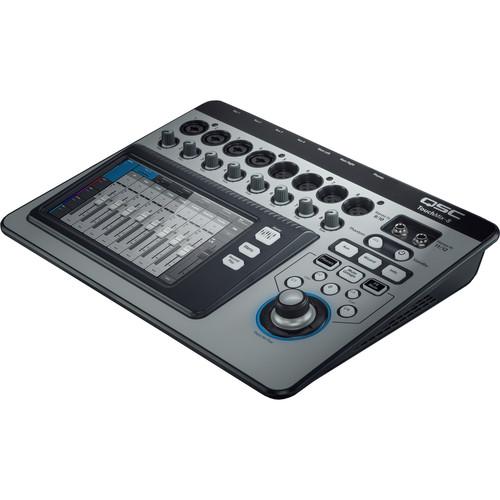

User Manual for QSC TouchMix-8 Compact Digital Mixer with Touchscreen Click to enlarge the picture
Contents of the user manual for the QSC TouchMix-8 Compact Digital Mixer with
- Product category: Digital Mixers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Digital Mixers
 |
User manual for the QSC TouchMix-8 Compact Digital Mixer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description The TouchMix-8 Compact Digital Mixer with Touchscreen from QSC is a 12-input digital mixer that features 8 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-8's DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.
The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included. - 12 Full Function Inputs: 4 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo line (TRS), USB 2-track
- Outputs: 4 Aux (XLR), 1 Stereo (TRS), Main R/L (XLR), Cue/Monitor (TRS)
- TRS Aux outs drive wired In Ear Monitors (IEM) directly
- 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
- Gate and compressor on all input channels
- 4 stereo DSP effects plus a pitch corrector
- 1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs
- Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation
- Wizards, info and preset libraries assist you with channel setup, effects selection, and more
- Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair
- Remote control via mobile devices. Wi-Fi interface included
UPC: 684284061539 In the Box QSC TouchMix-8 Compact Digital Mixer with Touchscreen USB Wi-Fi Adapter Soft Carrying Case Power Supply Limited 1-Year Warranty, Extendable to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC TouchMix-8 Compact Digital Mixer with Touchscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC TM-8 Specs | Display | 6.1 x 3.5" (156 x 90 mm) color TFT, touch sensing | | Input | 12x Total
4x Combo XLR/TRS
14x XLR
2x Stereo 1/4" (6.3 mm) TRS | | Output | 2x Main XLR, line level
4x Aux XLR, line level
1x Stereo monitor TRS (line or headphone, 16 Ω minimum impedance)
1x Stereo cue TRS (line or headphone, 16 Ω minimum impedance) | | Processing | Mic & Line Input Processing:
4-band parametric EQ with Hi/Low shelving option
Variable 24 dB/octave HPF & LPF
Gate
Compressor
2-Track (USB) & FX Return Processing:
2-band shelving EQ
Variable 24 db/octave HPF
Gate
Compressor
Output Channel Processing:
Main Output & Auxes 1 to 6: 1/3 octave graphic EQ, variable HPF & LPF, 4-band variable notch filter, limiter
Auxes 7/8, 9/10: 4-band parametric EQ, limiter | | Recording | 14 tracks, requires USB 3.0 Hard Drive, minimum 7200 RPM | | Groups | 8 DCA groups (with mutes)
8 Mute groups | | Cue | Input priority cue
AFL
PFL
Solo in place | | Effects | Reverb, echo, delay, chorus
1x Pitch Correct (assignable to any mono input channel)
50x factory presets
50x user presets | | Preset | Mixer Presets: Factory & user mixer presets including all mixer parameters may be stored internally or loaded to / from USB
Channel Preset: User channel presets may be stored internally or loaded to / from USB | | Control | External Control: iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions | | Wi-Fi | USB Wi-Fi adapter included | | Line Voltage | 100 V AC - 240 V AC, 50 - 60 Hz | | Sampling Frequency | 44.1/48 kHz | | Internal Processing | 32-bit floating point | | Frequency Response | 20 Hz to 20 kHz, +/-0.5 dB, any input to any output | | Dynamic Range | 105 dB | | EIN | -128 dBu | | Output Noise | Residual Output Noise: -86 dBu | | Crosstalk | -80 dB | | Signal to Noise Ratio | -94 dB | | Maximum Input Level | +16 dB (Mic inputs)
+22 dB (Line inputs) | | Phantom Power | 48 V, individually switchable per channel | | Dimensions (HxWxD) | 3.1 x 3.1 x 9.8" (79 x 333 x 250 mm) | | Weight | 4.3 lb (1.95 kg) | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 20.0 x 16.0 x 5.0" |
