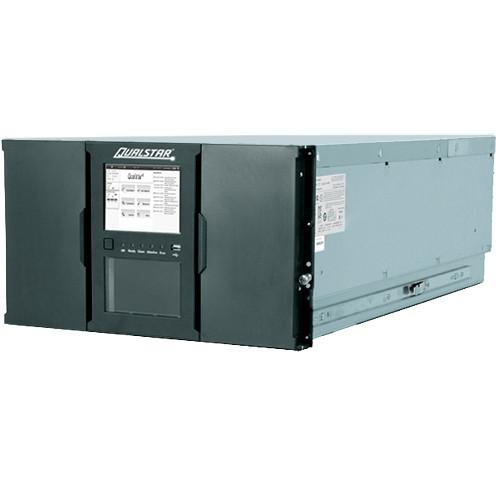

User Manual for Qualstar Q80 Library with 1 LTO 6 SAS Drive Click to enlarge the picture
Contents of the user manual for the Qualstar Q80 Library with 1 LTO
- Product category: Archiving Drives Qualstar
- Brand: Qualstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Qualstar Archiving Drives
|
User manual for the Qualstar Q80 Library with 1 LTO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Qualstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Qualstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Qualstar product will considerably shorten its lifespan!
|
Product description With a Simply Reliable design, the Q80 Library with 1 LTO 6 SAS Drive from Qualstar is designed for both short-term backup/disaster recovery as well as long-term data archiving. This tape library comes equipped with 80 cartridge slots which can be expanded up to 560 slots using 6 Q80 Library Expansion Modules (sold separately). In addition to the large number of cartridge slots, this unit features a 5.7" color touch-screen display for easy management along with the ability to slide out magazines to easily swap out tapes. Once configured, the Q80 can be accessed both locally and remotely using the menu-driven, graphical built-in control panel making it easy to access and control your tape library through the browser-based remote management interface (RMI).
The reliable Q80 Tape Library makes it easy to install the drives thanks to the self-calibrating all-digital servo control system. With the ability to auto-align the drives you no longer need to manually adjust the tapes to ensure they are inserted properly. The Q80 is even rated at 2,000,000 robot load/unload cycles to ensure long term system reliability. Engineered for Reliability - Auto-connecting, user-installable tape drives
- Self-calibrating all-digital servo control system
- Auto-aligning: No mechanical or electrical adjustments required
- Auto-discovery of all components
- Rated at 2,000,000 robot load/unload cycles
- Automated tape drive cleaning
Versatility - Field-expandable to 560 tape slots
- Fibre Channel and SAS drive interface support
- Logical Library partitioning
Comprehensive User Interface - RMI browser-based remote library manager
- Color LCD control panel and menu system for easy installation, configuration, operation and maintenance
- Extensive diagnostics and text-based error messages
Efficient Media Control - Integrated barcode scanner
- Right-side 10-slot magazine per module optionally configurable for I/O. When enabled, storage slot count is reduced by 10
In the Box Qualstar Q80 Library with 1 LTO 6 SAS Drive Standard Rack Mount Kit Standard N+1 Power with Dual Line Cords Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Qualstar Q80 Library with 1 LTO 6 SAS Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQualstar 900368-01-0 Specs | | | Number of Tape Slots | 80 | | Supported Tape Types | LTO-6, LTO-7 | | Supported Compression Rates | 2.5:1 | | Total Storage Capacity | 200 to 500 TB | | | | Number of Tape Drives Supported | 6 | | Data Transfer Rate | 961.1 MB/s
2400 MB/s (Compressed) | | Barcode Reader | Yes | | Connectivity | 1 x SFF-8088 (SAS (Unspecified Version)) | | | | Power Consumption | 350 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Dimensions | 10.5 x 18.7 x 35.1" / 26.7 x 47.5 x 89.2 cm | | Weight | 90.4 lb / 41 kg |
