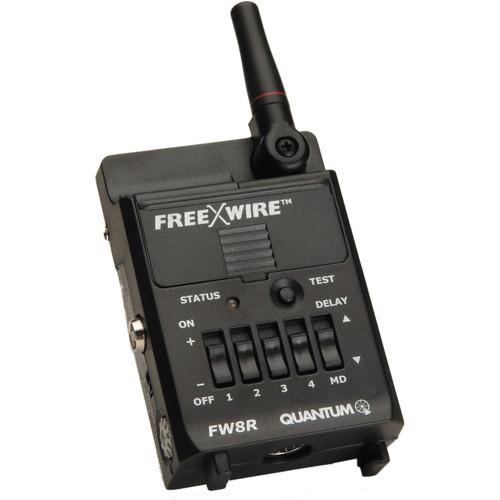

User Manual for Quantum Instruments FW8R FreeXwire Wireless Digital TTL Receiver Click to enlarge the picture
Contents of the user manual for the Quantum Instruments FW8R FreeXwire Wireless Digital
- Product category: Radio & Infrared Transmitters Quantum Instruments
- Brand: Quantum Instruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantum Instruments Radio & Infrared Transmitters
|
User manual for the Quantum Instruments FW8R FreeXwire Wireless Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantum Instruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantum Instruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantum Instruments product will considerably shorten its lifespan!
|
Product description The Quantum FreeXwire FW8R Receiver can be used to receive a wireless radio flash trigger signal from an FW10w or FW9T transmitter connected to the camera. Or can be used to receive wireless TTL information when connected to the Qflash T5d and a Dw series QTTL adapter on the camera. The FW8R receiver can also be used as a receiver hooked up to the camera with a Quantum Two-Step Motor Drive cord to allow for remote wireless triggering of the shutter release. With a 2-step cord you keep your camera's meter and focus function continuously on (as in pressing the shutter button half way). - 8 Independent Channels
- FreeXwire has eight unique Channel Codes. FreeXwire units set to one Channel cannot activate FreeXwires set to different Channels. You control the Channel Code to make FreeXwire units work together or independently, as required. There are 32 individual Channel/Zone settings at your disposal, and 256 possible lighting combinations.
- 4 Zone Control Plus Local
- FreeXwire controls one Local Zone and four wireless Zones for flash or motor drive. You can activate any one Zone, or any combination of Zones 1,2,3,4 and Local. Switch your lighting instantly, remotely. Select and trigger flashes, cameras, or combinations of them, from your remote position.
- Wireless Digital Camera TTL
- A FreeXwire connected to a "Dw" series adapter transmits the camera's f/stop, ISO, and TTL information to any number of remote FreeXwire /Qflash combinations. A "local" Qflash will synchronize also.
- Wireless Auto
- Without a TTL adapter, a local Qflash & FreeWire can control exposures of any number of remote Qflash/FreeXwire combinations.
- Two Special Motor Drive Features
- Two-step cord keeps your camera meter and focus function continuously on (as in pressing the shutter button half way). The camera will be ready for instant shutter release. Or, select motor drive "delay" to command a camera to "wake up", focus and meter, then release the shutter.
- Small Size
- Compact and light, and antenna folds out of the way for compact storage.
UPC: 807955011125 In the Box Quantum Instruments FW8R FreeXwire Wireless Digital TTL Receiver 2 x AAA 1.5V Alkaline Coppertop Battery axawbsvebydswyfetsfuybzftxrcscczebd Pole Mounting Kit Touch Fastener Mounting Pads Limited 1-Year Warranty User Manual PDF 255.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantum Instruments FW8R FreeXwire Wireless Digital TTL Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuantum Instruments 860510 Specs | | | Channels | 8 | | Groups | 4 | | Wireless Range | 500 to 1000' / 152 to 305 m | | | | Dimensions | 3.6 x 2.3 x 1.1" / 9 x 6 x 2.8 cm (Receiver) | | Weight | 4.3 oz / 121.9 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.5 x 5.6 x 2.0" |
