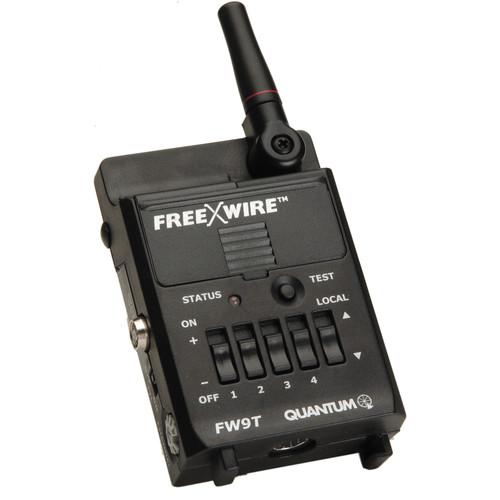

User Manual for Quantum Instruments FW9T FreeXwire Digital Transmitter Click to enlarge the picture
Contents of the user manual for the Quantum Instruments FW9T FreeXwire Digital Transmitter
- Product category: Radio & Infrared Transmitters Quantum Instruments
- Brand: Quantum Instruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantum Instruments Radio & Infrared Transmitters
|
User manual for the Quantum Instruments FW9T FreeXwire Digital Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantum Instruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantum Instruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantum Instruments product will considerably shorten its lifespan!
|
Product description The Quantum FW9T Transmitter provides simple operation, increased range, and lower cost. You can match sets of FreeXwire units to work together on the same channel, or separate groups of FreeXwires can work independently on different channels, with up to 32 individual Channel/Zone settings at your disposal, and 256 possible lighting combinations. Compatible with an FW7Q, FW8R, or an upgraded FW10w Transceiver. Mount a FW9T or FW10/10w transmitter and FW12 Hot Shoe Adapter to the camera and be totally wireless. Or, add a "D" or "Dw" series QTTL adapter to the camera and transmit your camera's f/stop, ISO, and TTL exposure information to the remote Qflash 5d. Might require additional cables or accessories, depending on flash and/or camera used. Please consult the manufacturer's website for complete FreeXwire component chart. - 8 Independent Channels
- FreeXwire has eight unique Channel Codes. FreeXwire units set to one Channel cannot activate FreeXwires set to different Channels. You control the Channel Code to make FreeXwire units work together or independently, as required. There are 32 individual Channel/Zone settings at your disposal, and 256 possible lighting combinations.
- 4 Zone Control Plus Local
- FreeXwire controls one Local Zone and four wireless Zones for flash or motor drive. You can activate any one Zone, or any combination of Zones 1,2,3,4 and Local. Switch your lighting instantly, remotely. Select and trigger flashes, cameras, or combinations of them, from your remote position.
- Wireless Digital Camera TTL
- A FreeXwire connected to a "Dw" series adapter transmits the camera's f/stop, ISO, and TTL information to any number of remote FreeXwire /Qflash combinations. A "local" Qflash will synchronize also.
- Wireless Auto
- Without a TTL adapter, a local Qflash & FreeWire can control exposures of any number of remote Qflash/FreeXwire combinations.
- Convenient Connections
- You can hot shoe sync with FreeXwire's optional Uni-Mod module FW-11 or FW-12, use twin blade sync cords, or numerous other cords. FreeWires use Quantum's motor drive cords for remote wireless shutter.
- Small Size
- Compact and light, and antenna folds out of the way for compact storage.
UPC: 807955011132 In the Box Quantum Instruments FW9T FreeXwire Digital Transmitter 2 x AAA 1.5V Alkaline Coppertop Battery Pole Mounting Kit 3.5mm to PC Sync-In Cord (18") Touch Fastener Mounting Pads Limited 1-Year Warranty User Manual PDF 255.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantum Instruments FW9T FreeXwire Digital Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuantum Instruments 860515 Specs | | | Channels | 8 | | Groups | 4 | | Wireless Range | 300 to 1000' / 91.4 to 304.8 m | | | | Dimensions | 3.6 x 2.3 x 1.1" / 9 x 6 x 2.8 cm (Transmitter) | | Weight | 4.3 oz / 121.9 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.8 x 5.8 x 2.0" |
