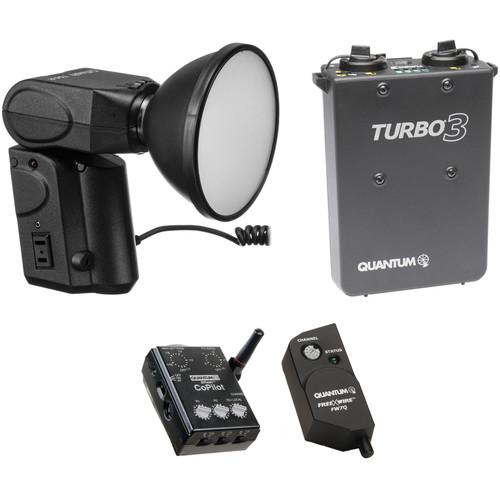

User Manual for Quantum Instruments Qflash T5D-R CoPilot Wireless TTL Battery Kit for Canon Click to enlarge the picture
Contents of the user manual for the Quantum Instruments Qflash T5D-R CoPilot Wireless
- Product category: Battery Powered Heads Quantum Instruments
- Brand: Quantum Instruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantum Instruments Battery Powered Heads
|
User manual for the Quantum Instruments Qflash T5D-R CoPilot Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantum Instruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantum Instruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantum Instruments product will considerably shorten its lifespan!
|
Product description B&H has put together this Qflash T5D-R CoPilot Wireless TTL Battery Kit for Canon to bring users the benefits of a powerful parabolic reflector flash backed with TTL functionality and large capacity battery power. The kit includes a Qflash T5dR flash head, CoPilot TTL Controller, FreeXwire 7Q Compact Receiver, and a Turbo 3 Rechargeable Battery.Qflash T5D-RThe T5dR is an updated version of the T4D model. It has full wireless TTL dedication thanks to the controller and receiver included in this kit. The Qflash T5dR has exposure compensation in Auto and Manual Modes, a Flash Counter, visible and audible flash indicators, a modeling light, and an improved reflector locking ring. The Q Flash uses a parabolic reflector for a clean, even spread of light, which is removable for bare-bulb lighting. Flash control can be Automatic, TTL, Manual, or Stroboscopic. Automatic exposure control covers a nine stop range, adjustable in 1/3 stops, for a total of 25 automatic settings. Manual power can be adjusted from full to 1/64 power in 1/3 stop increments. Stroboscopic mode can be adjusted for flash power and number and frequency of bursts for special effects. Program allows storage of up to 8 favorite settings that can switched at a push of a button.The LCD control panel shows minimum and maximum flash distance range for each auto setting. It has both an audible and visual indication of correct exposure, as well as an Under/Over indicator in the display as a guide to which way to adjust the unit. The audible is switchable, or you can use the included earphone in noise sensitive situations.CoPilot TTL ControllerWith the CoPilot Wireless TTL Flash Controller you can control a studio full of flashes from up to 300' away from the hotshoe of your DSLR. Not only will the CoPilot trigger them, but it can adjust the lighting ratios of up to 3 independent groups of flashes. Instead of poking away at an LCD screen Quantum gives you ergonomic, tactile dials that you can adjust without looking at them once you get used to their functions. The CoPilot is compatible with current Qflash TRIOs and T5dRs as well as older versions. Last but not least, the CoPilot has a built-in IR autofocus assist for fast focus in low light.Turbo 3 BatteryThe Turbo 3 is a high voltage battery that works with most shoe and handle-mount professional quality flash units and all Quantum Qflash, T-series, and Trio/Pilot portable flashes. The Turbo 3 has the capacity to provide 1050 full-power flashes for shoe-mount and 750 flashes for handle-mount flash units.The battery pack has two outlets, so you can simultaneously power a digital camera and a flash or two flashes. Cables are secured to the battery with locking sockets so you don't have to worry about a cable dislodging while you're in the middle of a shoot. Compatible cables for Nikon, Canon and Qflash Trio are available.This NiMH battery is equipped with four, fuel-gauge, LED status indicators, which keep you aware of how much power you have left. Recycling times average one second and it takes about three hours to fully charge the unit with the included standard battery charger.Turbo 3 is Quantum's highest-capacity battery. It weighs only 32 oz and can be carried around easily with the included belt clip. - Quantum Instruments CoPilot Wireless TTL Flash Controller for Canon With the Quantum Instruments CoPilot Wireless TTL Flash Controller you can control a studio full of flashes from up to 300' away from the hotshoe of your Canon camera. Not only will the CoPilot trigger them but can adjust the lighting ratios of up to three independent groups of flashes. Instead of poking away at an LCD screen Quantum gives you ergonomic, tactile dials that you can adjust without looking at them once you get used to their functions. The CoPilot is compatible with current Qflash TRIOs and T5dRs as well as older versions and any non-Quantum flash that can be triggered in Manual and Auto mode only by a FreeXwire wireless receiver. Last but not least, the CoPilot has a built-in IR autofocus assist for fast focus in low light.
- The CoPilot's infrared autofocus assist helps your camera focus in low light
- TTL control of up to three independent groups of flashes without a local flash or two remote groups with a local Qflash connected to the accessory connector of CoPilot. Compatible with Quantum TRIO and T5dR and older T2D, T3D, T4D and T5D versions
- Trigger non-Quantum flash in manual or auto mode with FreeXwire FW8R or FW10W receivers
- Use any number of flashes in each remote group
- Instant dial settings replace complicated LCD display
- Reliable digital radio wireless up to 300' (100 m)
UPC: 807955012474 - Quantum Instruments Qflash Model T5D-R The Q Flash T5D-R TTL Flash by Quantum Instruments is an updated version of the T4D model. It has full wireless TTL dedication for new digital and film cameras, with the purchase of optional, camera-specific DW series QTTL modules and receivers. The Qflash T5D has Exposure compensation in Auto and Manual Modes, Under-Over F-stop exposure indicators in Auto, a Flash Counter, visible and audible flash indicators and signal, a modeling light, and an improved reflector locking ring. It is a completely automated flash head with many advanced user-selectable operating modes; it is the perfect portable flash for any professional photographer.Regular auto and manual flash are possible through its twin-blade sync socket. TTL flash exposures are possible when using the T5D with selected digital cameras. This unit is backward compatible with all Quantum TTL cords and adapters.The Q Flash uses parabolic reflectors for clean, even light spread, and the reflectors are removable for bare-bulb lighting. Flash control is either Automatic, TTL (with optional adapters for TTL camera control), Manual, or Stroboscopic. Automatic exposure control covers a nine stop range, adjustable every 1/3 stop, for a total of 25 automatic settings. Manual power can be adjusted from full to 1/64 power in 1/3 stop increments; flash power can be dialed in precisely; Stroboscopic mode can be adjusted for flash power and number and frequency of bursts for special effects. Program allows storage of up to 8 favorite settings and switching between them at a push of a button. The LCD control panel shows minimum & maximum flash distance range for each auto setting. It has both an audible and visual indication of correct exposure, displaying "OK" & 1 beep, or 3 beeps right away and an "UNDR" or "OVER" in the display, indicating which way to adjust the unit. The beep is switchable, or one may use the included earphone in situations where noise is distracting. The Q Flash mounts on a camera bracket, tripod, or light stand and weighs no more than a conventional flash.The Q Flash Model T5 can only be powered by the TURBO Series Batteries or Lumedyne Mega Cyclers with a Lumedyne battery, up to 150 Ws, full power, manual.
- Wireless TTL, Sync and Shutter Control
- Links Qflash 5D series flashes to digital and film cameras (Canon, Nikon, Olympus, Hasselblad, Mamiya, and Contax) - wirelessly.
QTTL Adapters with a FreeXWire FW9T Transmitter will send commands to one or more remote FreeXWire receivers connected to Qflashes. - Full Dedication
- Connect a Qflash 5D to a camera using an optional Dw series QTTL adapter to make Qflash a fully dedicated flash that mimics the features of camera manufacturers' flashes.
- Manual Mode
- Power may be adjusted from full to 1/2 to 1/64 power in 1/3 stop increments.
- Stroboscopic Mode
- May be adjusted for power, number, and frequency of rapid firing for special effects.
- Program Mode
- Store up to 8 favorite settings, switch between them at the push of a button.
- Exposure Confirmation
- Visual: Displays "OK"
Audible: Beeps once for OK, or beeps 3 times with an "UNDR" or "OVER" in the display, indicating which way to adjust the Q Flash.
The beeping is switchable, or can be heard discreetly with the included earphone. - Changeable Reflector
- May be used with included parabolic or optional QF63 telephoto reflector.
May be used bare bulb, or with silver or gold bare bulb enhancers. - Angle Adjustment
- Head swivels and tilts for bounce flash capability.
- Easy to Mount
- Mounts on a camera bracket, lightstand, or tripod with the 1/4"-20 threaded socket on the bottom of the unit.
- New Reflector Mount
- Improved for sure mounting of new "B" series reflectors and accessories.
UPC: 807955011149 - Quantum Instruments FreeXwire 7Q Compact Wireless Digital TTL Receiver The Quantum FreeXwire 7Q mounts directly flush onto a Qflash 4d or 5d series flash, with no need for any connection cords. With the FW9T or FW10w transmitter mounted on the camera (with the FW12 Hot Shoe Adapter) it is now possible to trigger the Qflash completely wireless. Or, add a D or Dw series QTTL adapter to the camera and transmit the camera's f/stop, ISO, and TTL exposure information to the remote Qflash 5d. Might require additional cables or accessories, depending on flash and/or camera used, please click heretvbdbscqdr to see FreeXwire components. UPC: 807955011101
- Quantum Instruments Turbo 3 Rechargeable Battery (US / Canada / Japan Plug) For a portable power source for your speedlights, use the Turbo 3 Rechargeable Battery (US / Canada / Japan Plug) from Quantum Instruments. This battery works with most shoe-mount and handle-mount flashes, including all Quantum Qflash, T-series, and Trio/Pilot portable flashes. The Turbo 3 has the capacity to provide 1050 full-power flashes for shoe-mount speedlights and 750 flashes for handle-mount units. The product offers two outlets so you can simultaneously power a digital camera and a flash, or two flashes. Cables are secured to the battery via locking sockets so you don't have to worry about a cable falling out while you are in the middle of shooting. Compatible cables for Nikon, Canon, and Qflash Trio are available and sold separately. The Turbo 3 is equipped with four LED status indicators for checking how much power you have left. Recycling times vary from 1 to 1.9 seconds, and it takes about three hours to fully charge the unit with the included battery charger. The product weighs only 2 lb and can be carried around easily with the included belt clip.
- Features
-
- NiMH batteries used for quick recycling
- Non-included locking flash cables for Nikon, Canon, and Qflash TRIO can be secured with the locking sockets of the Turbo 3
- Comes with a belt clip, and has fittings for an optional shoulder strap
- Two outlets for simultaneously powering a digital camera and a flash, or two flashes
- The internal battery can be replaced by Quantum Instruments at a nominal cost if desired
- To check the Turbo 3 capacity when it is not connected, press the ON button until the LED display comes on. The gauge will automatically turn off after use
- Full-Power Flashes
-
- Shoe mount: 1050
- Handle mount: 750
- Qflash: 600
- Trio: 1050
- Full-Power Flashes (with Flash and Digital Camera)
-
- Shoe mount: 600
- Handle mount: 450
- Qflash: 375
- Trio: 630
- Typical 1/8-Power Flashes in Automatic/TTL Mode
-
- Shoe mount: 7500
- Handle mount: 5400
- Qflash: 4300
- Trio: 7500
UPC: 807955011910 In the Box - CoPilot Wireless TTL Flash Controller for Canon tvbdbscqdr
- CR123A Battery
- Limited 1-Year Warranty
- FreeXwire 7Q Compact Wireless Digital TTL Receiver
- Turbo 3 Rechargeable Battery (US / Canada / Japan Plug)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantum Instruments Qflash T5D-R CoPilot Wireless TTL Battery Kit for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quantum Instruments CoPilot Wireless TTL Flash Controller for Canon
| | | Channels | 8 | | Groups | 3 | | Wireless Range | 300' / 91 m | | | | Dimensions | 3.6 x 2.3 x 1.8" / 9.1 x 5.8 x 4.6 cm (Transmitter) | | Weight | 5.2 oz / 147.4 g | | | | Box Dimensions (LxWxH) | 5.0 x 3.6 x 1.8" | - Quantum Instruments Qflash Model T5D-R
| Maximum Watt/Seconds | 150 Ws | | User Replaceable Flashtube | Yes (QF30 or QF30UV) | | Changeable Reflector | Yes | | Circuit Protection | Yes | | Cable Length | 6' | | Modeling Light Wattage | None | | Modeling Light On/Off Switch | Not applicable | | Protective Glass Dome | Yes | | Fan Cooled | No | | Dimensions | 3.2 X 3.5 X 6.5" (8.1 x 8.9 x 16.5 cm) | | Weight | 1 lb (.45 kg) | | | | Box Dimensions (LxWxH) | 11.8 x 9.6 x 4.9" | - Quantum Instruments FreeXwire 7Q Compact Wireless Digital TTL Receiver
| | | Channels | 8 | | Groups | 4 | | Wireless Range | 300 to 600' / 91 to 182 m | | | | Dimensions | 3.3 x 1.5 x 1" / 8.3 x 3.8 x 2.5 cm (Receiver) | | Weight | 1.8 oz / 51 g | | | | Box Dimensions (LxWxH) | 6.7 x 5.8 x 1.9" | - Quantum Instruments Turbo 3 Rechargeable Battery (US / Canada / Japan Plug)
| Chemistry | Nickel-Metal Hydride | | Carrying Options | Belt Clip | | Charging Time | 3 Hours | | Dual Flash Capability | Yes | | Battery Type | 1 x Built-In | | Recycle Time | 1 to 1.9 Sec () | | Number of Flashes | 375 to 7500 | | Output Ports | 2 x Flash Power Socket | | LED Power Indicator | Multiple | | Dimensions (W x H x D) | 5.9 x 4.0 x 1.8" / 15.0 x 10.2 x 4.6 cm | | Weight | 2.0 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 13.2 x 4.9 x 2.6" |
