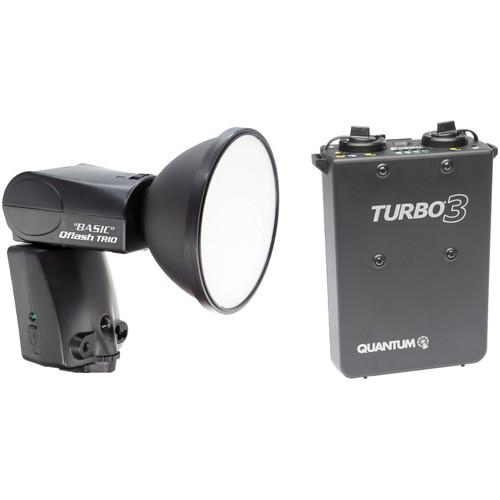

Product description The Quantum Instruments Qflash TRIO Basic Flash Kit with Turbo 3 Battery Pack for Nikon Cameras from pairs the Qflash TRIO Basic flash for Nikon cameras with the Turbo 3 Battery Pack for power. The system features a bare bulb design with 80 Ws output and comes with a parabolic reflector for distributing light. This model is also compatible with Nikon's i-TTL system for complete system operation with the camera.
The TRIO Basic has a guide number of 105' at ISO 100 with the QF60 reflector and a bounce and swivel head for versatility. Also, it has a recycle time of 1 seconds with the Turbo 3 Battery Pack and will produce about 1050 full power flashes on a single change. Additionally, it works with camera's high speed sync and AF assist settings. - Quantum Instruments Qflash TRIO Basic Flash for Nikon Cameras The Quantum Qflash TRIO Basic Flash combines several of Quantum's venerable Qflash system technologies into one complete dedicated shoe mount flash, and has full i-TTL dedication to Nikon cameras. Slip it onto the camera hot-shoe, connect any Quantum Turbo battery (not included), and shoot studio-quality flash photos non-stop, 24 hours a day without slowing down or overheating.
The Qflash uses parabolic reflectors for clean, even light spread, and the reflectors are removable for bare-bulb lighting. The flash can be used either on-camera on its own or on-camera as a master to other off-camera units.
The TRIO Basic includes many of the same functions as other Qflash models including: Manual, Auto, Auto-Fill, TTL, and Program (Pre-Sets) modes. The TRIO Basic has high-speed sync capabilities, and can be powered by any Quantum heavy-duty Turbo-series battery, which allows for almost unlimited rapid-fire, full-power flashes. It has a user-replaceable flash tube, a coiled 6' power cable, a removable reflector and includes 2 flat white UV diffusers. A wide variety of optional light modifiers are available. A power pack is not included. - Compact, shoe-mount Qflash with high-speed sync capabilities.
- Full TTL dedication for Nikon cameras.
- Manual, Auto, Auto-Fill, TTL, and Program (Pre-Sets) Modes.
- Unlimited rapid-fire, full power flashes.
- Removable long and short power cords.
- User replaceable flash tube.
- Removable reflector, bare-bulb flash capable.
- Wide variety of light modifiers available.
- Quantum Instruments Turbo 3 Rechargeable Battery (US / Canada / Japan Plug) For a portable power source for your speedlights, use the Turbo 3 Rechargeable Battery (US / Canada / Japan Plug) from Quantum Instruments. This battery works with most shoe-mount and handle-mount flashes, including all Quantum Qflash, T-series, and Trio/Pilot portable flashes. The Turbo 3 has the capacity to provide 1050 full-power flashes for shoe-mount speedlights and 750 flashes for handle-mount units. The product offers two outlets so you can simultaneously power a digital camera and a flash, or two flashes. Cables are secured to the battery via locking sockets so you don't have to worry about a cable falling out while you are in the middle of shooting. Compatible cables for Nikon, Canon, and Qflash Trio are available and sold separately. The Turbo 3 is equipped with four LED status indicators for checking how much power you have left. Recycling times vary from 1 to 1.9 seconds, and it takes about three hours to fully charge the unit with the included battery charger. The product weighs only 2 lb and can be carried around easily with the included belt clip.
- Features
-
- NiMH batteries used for quick recycling
- Non-included locking flash cables for Nikon, Canon, and Qflash TRIO can be secured with the locking sockets of the Turbo 3
- Comes with a belt clip, and has fittings for an optional shoulder strap
- Two outlets for simultaneously powering a digital camera and a flash, or two flashes
- The internal battery can be replaced by Quantum Instruments at a nominal cost if desired
- To check the Turbo 3 capacity when it is not connected, press the ON button until the LED display comes on. The gauge will automatically turn off after use
- Full-Power Flashes
-
- Shoe mount: 1050
- Handle mount: 750
- Qflash: 600
- Trio: 1050
- Full-Power Flashes (with Flash and Digital Camera)
-
- Shoe mount: 600
- Handle mount: 450
- Qflash: 375
- Trio: 630
- Typical 1/8-Power Flashes in Automatic/TTL Mode
-
- Shoe mount: 7500
- Handle mount: 5400
- Qflash: 4300
- Trio: 7500
In the Box - Qflash TRIO Basic Flash for Nikon Cameras frrequqqrseqcsureyerswrr
- Flash Tube
- QF60 Diffuser
- 2 x Flat White UV Diffusers
- 6' Power Cable
- Limited 1-Year Warranty
- Turbo 3 Rechargeable Battery (US / Canada / Japan Plug)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantum Instruments Qflash TRIO Basic Flash Kit with Turbo 3 Battery Pack for Nikon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quantum Instruments Qflash TRIO Basic Flash for Nikon Cameras
| Mount | Shoe | | Guide No. | 105' / 32 m ISO 100 | | Exposure Control | Automatic, Manual, i-TTL | | Angle of Coverage | 55° | | Vari-Power | 1/1 to 1/32 | | Bounce Head | 0 to +90° | | Swivel Head | 360° | | Coverage | - mm (Full Frame) | | Zoom Head | None | | Recycle Time | Approximately 1.5 Seconds | | Flash-Ready Indicator | Yes | | Power Source | Proprietary Battery | | Dimensions (W x H x D) | 4.1 x 3.3 x 5.9" / 10.4 x 8.5 x 14.9 cm | | Weight | 20.00 oz / 567.00 g | - Quantum Instruments Turbo 3 Rechargeable Battery (US / Canada / Japan Plug)
| Chemistry | Nickel-Metal Hydride | | Carrying Options | Belt Clip | | Charging Time | 3 Hours | | Dual Flash Capability | Yes | | Battery Type | 1 x Built-In | | Recycle Time | 1 to 1.9 Sec () | | Number of Flashes | 375 to 7500 | | Output Ports | 2 x Flash Power Socket | | LED Power Indicator | Multiple | | Dimensions (W x H x D) | 5.9 x 4.0 x 1.8" / 15.0 x 10.2 x 4.6 cm | | Weight | 2.0 lb / 0.9 kg |
