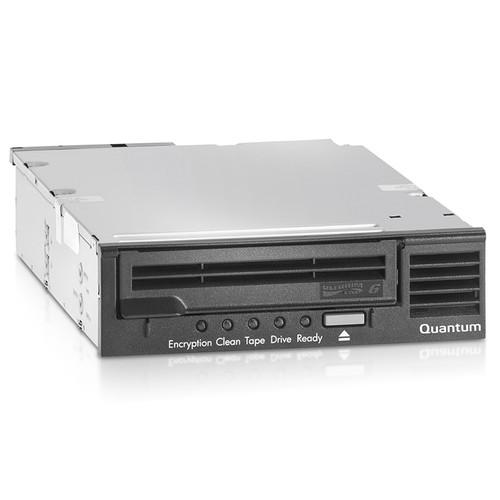

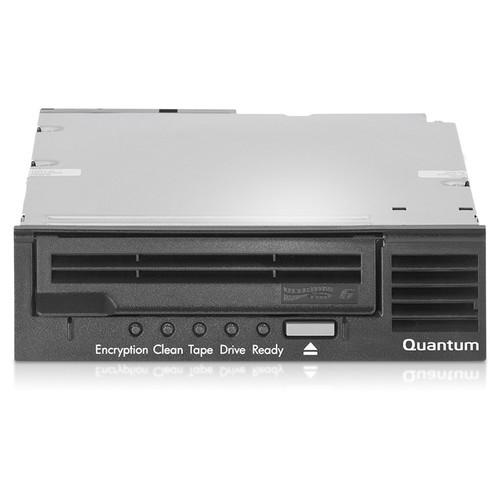

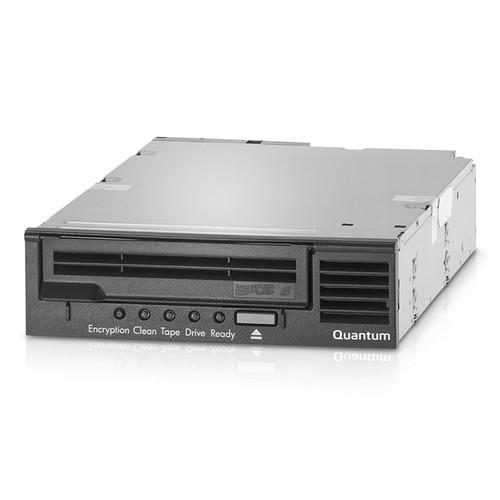

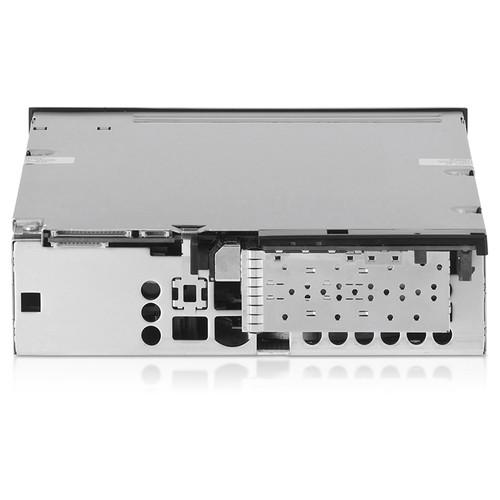

User Manual for Quantum LTO-5 HH Internal Bare Drive Option for 1U Rackmount Click to enlarge the picture
Contents of the user manual for the Quantum LTO-5 HH Internal Bare Drive
- Product category: Archiving Drives Quantum
- Brand: Quantum
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantum Archiving Drives
 |
User manual for the Quantum LTO-5 HH Internal Bare Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantum product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantum user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantum product will considerably shorten its lifespan!
|
Product description With the implementation of Linear Tape File System (LFTS) software, users can now drag-and-drop files to the LTO-5 HH Internal Bare Drive Option for 1U Rackmount (6 GB/s SAS, Black) from Quantum. In addition to streamlining the backup process, this drive supports LTO technology to store large amounts of data on a single cartridge. Once the data is stored it is secured using 256-bit AES encryption to ensure important files such as medical records, financial data, and other files remain safe and secure. Along with enhanced encryption functionality, this drive features WORM (write once, read many) technology to prevent the data on the drive from being erased. If the compressed storage capacity of the LTO drive isn't enough, Quantum has included their own DATASTOR Shield backup software designed to store up to 20X more data using deduplication technology. - Up to 280 MB/sec compressed transfer rate
- Up to 3.0 TB with standard compression; up to 30 TB with DATASTOR Shield
- AES 256-bit data encryption security, WORM functionality, and partitioning capability
- Includes DATASTOR Shield backup software with deduplication to reduce data by up to 20X
UPC: 768268039582 In the Box Quantum LTO-5 HH Internal Bare Drive Option for 1U Rackmount (6 GB/s SAS, Black) Limited 3-Year Rapid Exchange Warranty (Tape Drive) Limited Lifetime Warranty (Tape) Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantum LTO-5 HH Internal Bare Drive Option for 1U Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuantum TC-L52GN-BR-C Specs | | | Supported Tape Types | LTO-5 | | Supported Tape Capacities | 1.5 TB (Native)
3 TB (Compressed)
30 TB (Deduplicated) | | | | Buffer Data Size | 256 MB | | Data Transfer Rate | 140 MB/s (Native)
280 MB/s (Compressed)
2800 MB/s (Deduplicated) | | Operating System Support | Linux, Windows, macOS/OS X | | Barcode Reader | No | | Connectivity | 1 x SFF-8482 (SAS 6 Gb/s) | | | | Power Consumption | 23.7 W (Typical)
69 W (Maximum)
13.3 W (Idle) | | | | Operating Temperature | 50 to 100°F / 10 to 38°C | | Operating Humidity | 10 to 80% | | Operating Altitude | 13,000' / 4000 m | | Storage Temperature | -40 to 149°F / -40 to 66°C | | Storage Humidity | 10 to 95% | | | | Mean Swap Between Failures (MSBF) | 100,000 | | Mean Time Between Failures (MTBF) | 250,000 Hours | | Dimensions | 18.7 x 1.7 x 17.6" / 480.0 x 43.0 x 438.0 mm | | Weight | 14.2 lb / 6.4 kg |
