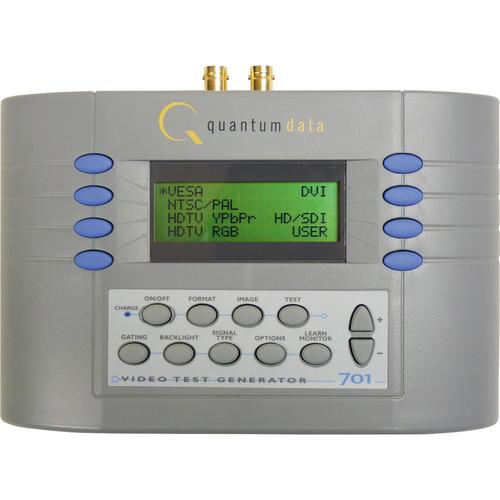

User Manual for Quantumdata 701A Handheld Video Test Generator Click to enlarge the picture
Contents of the user manual for the Quantumdata 701A Handheld Video Test Generator
- Product category: Video & Audio Signal Generators Quantumdata
- Brand: Quantumdata
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantumdata Video & Audio Signal Generators
|
User manual for the Quantumdata 701A Handheld Video Test Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantumdata product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantumdata user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantumdata product will considerably shorten its lifespan!
|
Product description The Quantum Data 701A Handheld Video Test Generator provides video signal outputs for testing, calibrating, and servicing any type of video displays. The 701A generates the signals, test patterns, and audio you need in order to test digital or analog computer monitors, video projectors, multi-media monitors, or TV screens. The 701A delivers high quality DVI, component video, S-video, composite video and RGB monitor signals. The generator provides HDTV formats for testing video displays. The 701A includes SD/HD-SDI serial digital video output, across a full range of formats, for installing, testing, calibrating and maintaining commercial SD/HD-SDI video systems. - Analog and Digital Video Signals
- Custom Formats and Test Sequence
- Service Center Patterns and Circle Patterns
- MS Windows-based user interface for creating formats and test sequences
- Formats created for QD's 80x and 882 generators
- AC Power or Battery Operation
In the Box Quantumdata 701A Handheld Video Test Generator 6 x AA Rechargeable Nickel Metal Hybrid (NiMH) Battery AC Adaptor/Charger DVI to VGA Adaptor Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantumdata 701A Handheld Video Test Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuantumdata 00-00206 Specs | Video Formats | Storage: 126 total
Built-in: VESA, DVI, NTSC/PAL, HDTV/SDTVRGB, HDTV/SDTV-YPbPr
Edit method: Windows-based VGM software | | Compatibility | QD 801, 802, 60x formats | | Test Patterns | Storage: 100 steps
Edit method: VGM
Parameters: Format, image, duration (0.1 sec. to 24 hours) | | Horizontal Timing | Frequency: 1 - 250 kHz
Total pixels: 144 to 4096
Active pixels: 16 to 4096 | | Vertical Timing | Frequency: 1 - 650 Hz
Active lines: 1 to 4096
Sync types: Separate, digital/analog composite
Scan types: Progressive, interlace, HDTV | | Video Connectors | DVI Interface
S-Video
BNC Composite
BNC SDI/HD-SDI | | Control Connector | RS232 9-Pin D-Sub | | DVI | Links: Single link 25 - 85 MHz
Encoding: RGB 4:4:4 with 8-bits/component
TMDS differential swing: 150 - 1560 mVp-p (programmable) | | Analog Component | Color encoding: RGB, YPbPr
Pixel rate: 13.5 - 148.5 MHz | | Analog Composite | Interface: CVBS (BNC)and S-Video
Encoding: NTSC and PAL
Sample rate: 24.55 - 29.5 MHz
Pixel rate: 12.27 - 14.75 MHz
Pixel aspect ratio: Standard or square
Swing: 1000 mVp-p fixed with programmable calibration
Calibration: Self-calibration with internal reference | | SDI/HD-SDI | Links: Single
Bit stream: 1.485 Gbps and 1.485/1.001 Gbps
Encoding: 4:2:2 with 10-bits/component
Sampling mode: YCbCr
Signal swing: 800 mV
Standards: SDI-SMPTE 259M; HD-SDI-SMPTE 292M-C | | Audio Output | Signals: Two channels
Frequency: 1 kHz (left), 2 kHz (right) tone
Connector: 3.5 mm stereo phone jack | | Interface | User
Display: 20 x 4 character LCD with backlight
Controls: Drill-down menus
Computer Port: RS232C, 9-pin D-sub receptacle | | Display Data Channel | EDID,DDC-2B | | Battery Power | 6 x AA 1500 mA-H NiMH rechargeable batteries | | AC Power | Input: 100 - 250 VAC, 50/60 kHz
Output: 12 V | | Dimensions (H x W x D) | 6 x 8.25 x 2" (15.2 x 21 x 5.1 cm) | | Weight (with Batteries) | 21 oz (0.6 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 16.25 x 16.25 x 8.75" |
