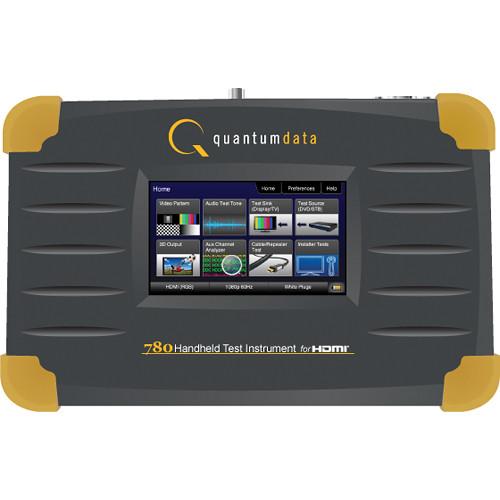

Product description The 780 Handheld Test Instrument from Quantum is a portable multimedia generator and analyzer that enables you to conduct quick verification tests of all your HDMI products – source, sinks, repeaters, distribution devices – on-site or in an R&D environment. The instrument's color touch display makes it easy and convenient to use it. The 780 test instrument supports pixel rates up to 165 MHz and TMDS clock rates up to 225 MHz for deep color on the HDMI Tx port and up to 150 MHz on the HDMI Rx port. Testing HDMI Sink Devices - The 780 is equipped with an HDMI output port for testing HDMI sink devices. You can test and calibrate the video on your high definition TVs with a variety of resolutions and standard 2D or 3D test patterns as well as custom patterns from THX and ISF. You can also verify hot plug, EDID, and HDCP and CEC messaging on HDMI sink devices.
Analyzing HDMI Source Devices - The 780 is also equipped with an HDMI input port for verifying HDMI source devices. The HDMI input port and built-in display enable you to verify the incoming video parameters and view the entire, unscaled video image, including 4K images by panning, even when encrypted with HDCP. You can also verify the incoming audio by examining the decoded IEC audio headers, audio info-frames, and channel status blocks.
Testing HDMI Cables & Distribution Networks - Because the 780 has both an HDMI output and an HDMI input, you can test your HDMI cables and distribution systems (splitters, extenders, and switches) with the cable test feature. You can prequalify cables and distribution systems prior to installation or once they are installed with the frame compare (pixel error) test feature.
Monitoring HDMI Protocols - With the auxiliary channel analyzer (ACA) options, you can monitor the HDMI hot plug related events and DDC transactions, EDID, and HDCP, between HDMI devices and the 780 while the 780 is emulating a known-good HDMI source or sink device. The second ACA option enables you to passively monitor the HDMI hot plug-related events and DDC transactions on three HDMI connected devices.
Other Features - Pattern testing including 3D and deep color
- Test side-by-side, top/bottom and frame packing 3D format structures
- Pattern testing for analog component inputs on HDTVs
- Create custom formats using format editor tool or import your bitmaps for pattern testing
- Animated test pattern for testing motion artifacts
- Image packs with bitmap test images separately available; standard pattern packs are THX, China Res, and ISF
- Verify audio-capable devices using multichannel audio over HDMI, SPDIF, and optical outputs with various audio formats at sampling rates up to 192 kHz
- Test LPCM and Dolby and DTS compressed audio formats
- User friendly color touch screen enables you to operate the instrument and view incoming video and metadata from an HDMI source
- View incoming video, scaled or unscaled, encrypted or unencrypted
- Diagnose HDMI interoperability problems with simplified test interface
- Verify sources, sinks, repeaters with one button tests; pass/fail results provided
- Verify that an HDMI display properly responds to HDCP content protection
- Check max HDMI devices supported by source
- Verify the HDMI display's EDID for checksum and header errors
- View the display's entire EDID content and compare two EDIDs
- Run portions of the EDID compliance test
- Emulate an HDMI sink device to test EDID on HDMI source device; test a source response to a variety of stored EDIDs
- View the video timing data and video info-frame data from an HDMI source device, including 3D metadata
- View various data island packet contents
- Verify incoming audio (format, sampling rate, bit depth) by viewing the decoded IEC audio headers, audio info-frames and channel status bits
- Prequalify or verify your HDMI cable and HDMI distribution network (extenders, splitters, switchers) using a pseudo random noise test pattern or pixel error test with frame compare feature
- Monitor the CEC HDMI hot plug related events and DDC transactions, EDID and HDCP, either while emulating a known-good HDMI device or while passively monitoring between multiple HDMI connected devices 1
Please Note: Passive monitoring requires optional hardware configuration. close - Provides portability with rechargeable batteries; can also be powered from AC through power adapter
- Run automated tests through command line interface via USB
In the Box Quantumdata 780 Handheld Test Instrument Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantumdata 780 Handheld Test Instrument in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuantumdata 00-00226 Specs | | | Connector Type | 1 x HDMI Type-A | | TMDS | HDMI, DVI | | Max Links | Single | | Standard | ITU-R BT.601-5; ITU-R BT.709-5 | | Color Depth | HDMI:
24/30/36-bit; 4:4:4 RGB/YCbCr; 36-bit 4:2:2
DVI:
24-bits per pixel; RGB 4:4:4 | | Encoding | RGB, YCbCr | | Sampling | 4:4:4; 4:2:2 | | Pixel Clock Frequency | 165 MHz | | TMDS Clock Frequency | 2.25 Gb/s | | Timings | Up to 1080p60 | | Scan | Progressive, interlaced | | | | Connector Type | VGA (HD15F) VGA-to-RCA adapter provided | | Encoding | Color: RGB, YPbPr | | Pixel Clock Frequency | 80 MHz (pixel rep for higher resolutions) | | Sync | Separate, composite | | | | Formats | Video Pattern Testing: 147 | | Deep Color | 1080p60 30/36-bit | | Patterns | More than 40 patterns | | Levels | Gray Levels: 256 | | Resolution | Imported Bitmaps: Fixed, 24-bit | | Image Shift | Scroll bitmap images | | Test Patterns | 3D bitmap test images and new rendered images | | Supported 3D Formats | Top & bottom, side-by-side (half & full), frame packing | | Audio Test Tone | Sound Pressure: Pink noise
Main Speaker: 500 Hz to 2 kHz
Frequency Response: 20 Hz to 20 kHz
Speaker Distortion: Sine wave 63 Hz, 125 Hz, 1 kHz, 4 kHz
Early Reflections: Impulse
Polarity of speaker wires: Polarity
Sound Convergence: Auto-time Delay | | Test Modes | HDMI Source: View incoming video image and video metadata from HDMI source even when content is protected with HDCP | | Utility | Source Test: HDCP, video, video timing
Sink Test: Hot plug, EDID, HDCP, video, video type
Repeater Test: Hot plug, EDID, HDCP, video, video type, video timing
Link Test: Hot plug, EDID, HDCP, video, video type, video timing | | | | Connector Type | 1 x HDMI Type-A | | Pixel Clock Frequency | 150 MHz | | Sampling | 4:4:4; 4:2:2 | | | | Connector | For HDMI: 1 x HDMI Type-A
For SPDIF, OPTICAL: SPDIF: RCA; OPTICAL: JIS F0S | | Bits | For HDMI: 16, 20, 24 bits per sample
For SPDIF, OPTICAL: 16, 20, 24 bits per sample | | Sampling Rates | For HDMI: 32.0, 44.1, 48, 88.2, 96, 176.4, 192 kHz
For SPDIF, OPTICAL: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz | | Audio Streaming | For HDMI:
Programmable LPCM (IEC 60958): All sampling frequency up to 8 channel
Dolby Digital (IEC 61937): Noise patterns, 5.1
Dolby Digital Plus (IEC 61937): Sine wave clips 192 kHz; 2.0, 5.1, & 7.1
Dolby TrueHD: High bit rate audio
DTS-ES (IEC 61937): Noise pattern 5.1
DTS-HD HRA (IEC 61937): Sine wave clips 192 kHz; 5.1 & 7.1
DTS Master Audio: High bit rate audio
For SPDIF, OPTICAL:
Programmable LPCM (IEC 60958): All sampling frequency up to 8 channel
Dolby Digital (IEC 61937): Noise patterns 5.1
DTS-ES (IEC 61937): Noise pattern 5.1 | | | | Firmware Upgrade | In the field upgrade through USB | | | | USB | Peripheral: Download bitmaps, firmware upgrade | | Command Line | USB | | | | Type | Touch screen | | Screen Size | 480 (H) x 272 (V) | | Color | 24-bit RGB | | | | Humidity | 30 to 80% RH non-condensing | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Regulatory | FCC class B, RoHS | | | | DC Charge | 6AA NiMh batteries | | Battery Life | 2 hours between charge | | Battery Recharge Time | Overnight charge | | Charger | 100 to 240 VAC; 0.4 A (max); 47 to 63 Hz; 30 VA | | | | Dimensions | 2.70 x 9.75 x 6.00" (6.98 x 24.76 x 15.24 cm) | | Weight | 3.25 lb (1.47 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 8.0" |
