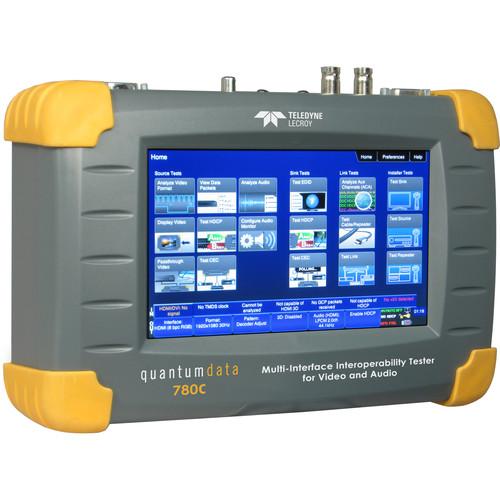

User Manual for Quantumdata 780C Multi-Interface Interoperability Tester for Video and Audio Click to enlarge the picture
Contents of the user manual for the Quantumdata 780C Multi-Interface Interoperability Tester for
- Product category: Test Equipment Quantumdata
- Brand: Quantumdata
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantumdata Test Equipment
|
User manual for the Quantumdata 780C Multi-Interface Interoperability Tester for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantumdata product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantumdata user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantumdata product will considerably shorten its lifespan!
|
Product description The 780C Multi-Interface Interoperability Tester for Video and Audio from Quantum is a portable handheld digital video generator and analyzer that enables you to run tests on various digital video devices and network distribution devices on site or in the R&D lab. The 780C instrument provides a 7" color touch screen for operation and for viewing status of outgoing and incoming video and audio. The 780C is equipped with multiple interface types including HDMI, HDBaseT, 3G-SDI, and component analog. Testing digital interfaces is supported by both an output port and an input port to allow testing of digital video sources, displays, audio devices, and distribution devices. Testing hybrid converter devices supporting 3G-SDI, HDMI, and HDBaseT distribution networks are a key application of the 780C as well. Although 780C is portable, it is not battery powered. HDMI - Output Port
-
- Emulates an HDMI source
- Operates for up to 300 MHz for testing on HDMI 2.0 4K-capable HDMI HDTVs and other sink devices even at 50/60 Hz with HDMI 2.0 4:2:0 pixel encoding
- Input Port
-
- Emulates an HDMI sink
- Operates for up to 300 MHz for testing HDMI 2.0 4K-capable HDMI source devices
- Provides basic analysis of HDMI source devices including timing; InfoFrames; and protocol tests for HDCP, EDID, CEC, and connection detection events
HDBaseT - Output Port
-
- Emulates an HDBaseT source
- Operates up to 300 MHz for testing the inputs into an HDBaseT downstream distribution device or network or for testing sink devices such as 4K-capable projectors and A/V receivers with native HDBaseT inputs
- Input Port
-
- Emulates an HDBaseT sink
- Operates for up to 300MHz for testing HDMI 2.0 4K-capable HDBaseT source devices. Provides basic analysis of HDBaseT source devices including timing; InfoFrames; and protocol tests for HDCP, EDID, CEC, and connection detection events
SDI/HD-SDI/3G-SDI - Output Port
-
- Emulates an SDI/HD-SDI/3G-SDI source
- Operates for up to 2.97 Gb/s bitrate for testing SDI monitors and displays
- Input Port
-
- Emulates an SDI/HD-SDI/3G-SDI display
- Provides basic analysis of SDI/HD-SDI/3G-SDI video streams including displaying the video in real time, measuring timing, and checking audio
Analog Component - Output Port
-
- Emulates an analog component or RGB source
- Operates for up to 80 MHz for testing on component analog inputs on HDTVs or RGB analog for testing computer displays
Other Features -
- Large user friendly color touch screen enables you to operate the instrument and view incoming video and metadata from a one of the digital video source inputs
- Compact size enables easy transport throughout the lab or on site
- Extensive test pattern library with over 50 patterns, including 3D patterns and scrolling and panning patterns. Optional test pattern packages from THX and Imaging Science Foundation (ISF) are also available
- Extensive video format library with over 300 resolutions
- Import custom test pattern bitmaps and video timings for use in testing
- Convenient test suites for HDMI and HDBaseT source, sinks and repeaters
- Status bar provides a real time at-a-glance status of the output and input of any of the digital video outputs and inputs and provides the output status of the analog output
- Pass the incoming HDMI, HDBaseT, or SDI out the HDMI output port for monitoring
- Monitor the connection sequence transactions for HDMI and HDBaseT for EDID exchange, 5V and hot plug events, and HDCP content protection transactions
- Monitor HDMI DDC transactions while emulating a source or sink or monitor DDC, hot plug event, or CEC messages while passively monitoring between a source and a sink
- Run basic tests on HDMI and HDBaseT source and sink devices to verify InfoFrames, EDID, HDCP, and CEC
- Emulate any EDID, including those from the Quantum Data EDID Library and test source response
- Run automated EDID tests on HDMI and HDBaseT source devices
- Rests on a convenient angle on your benchtop for viewing and operating
- SD card admin slot for upgrading and exporting test data
- Command line Interface for automated control and testing
- USB admin port used for command line control and transferring custom video formats, test patterns, EDIDs, and exporting test reports
In the Box Quantumdata 780C Multi-Interface Interoperability Tester for Video and Audio Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantumdata 780C Multi-Interface Interoperability Tester for Video and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuantumdata 00-00236 Specs | | | Version | HDMI 1.4a and 2.0 (partial) | | Connector | 1 x Type-A Tx; 1 x Type-A Rx | | Protocol | HDMI, DVI | | Video | Colorimetry: ITU-R BT.601-5, ITU-R BT.709-5
Pixel Rate: Maximum 300 MHz (3 Gbps/channel TMDS rate) | | Color Depth | 8, 10, 12-bit | | Video Encoding | RGB, YCbCr | | Sampling | 4:4:4, 4:2:2, 4:2:0 per HDMI 2.0 | | Audio | Formats:
LPCM, Dolby (DD, DD+ TrueHD), DTS (ES, HD, Master Audio)
LPCM Settings: Sampling rates (32 to 192 kHz); bit per sample: 16, 20, 24 | | | | Connector | 1 x 8P8C (RJ-45) Tx; 1 x RJ-45 Rx | | Video | Colorimetry: ITU-R BT.601-5, ITU-R BT.709-5
Pixel Rate: Maximum 9 Gbps | | Color Depth | 8, 10, 12-bit | | Video Encoding | RGB, YCbCr | | Sampling | 4:4:4, 4:2:2, 4:2:0 per HDMI 2.0 | | Audio | Formats:
LPCM, Dolby (DD, DD+ TrueHD), DTS (ES, HD, Master Audio)
LPCM settings:
Sampling rates (32 to 192 kHz); bits per sample: 16, 20, 24 | | | | Version | SMPTE 259M, 344M, 292M, 372M, 424M level A (level B is future) | | Connector | BNC, 75 ohms | | Video | Colorimetry: ITU-R BT.601-5, ITU-R BT.709-5
Pixel Rate:
SDI: Maximum 360 Mb/s
HD-SDI: Maximum 1.485 Gbps
3G-SDI: Maximum 2.97 Gbps | | Bit Depth | Encoding: 10-bit | | Sampling | YCbCr - 4:2:2 | | Audio | LPCM, 8 channels, 48 kHz @ 24 bits/sample | | | | Dimensions | 2.70 x 9.75 x 6.00" (6.98 x 24.76 x 15.24 cm) | | Weight | 3.25 lb (1.47 kg) | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 16.5 x 16.5 x 7.6" |
