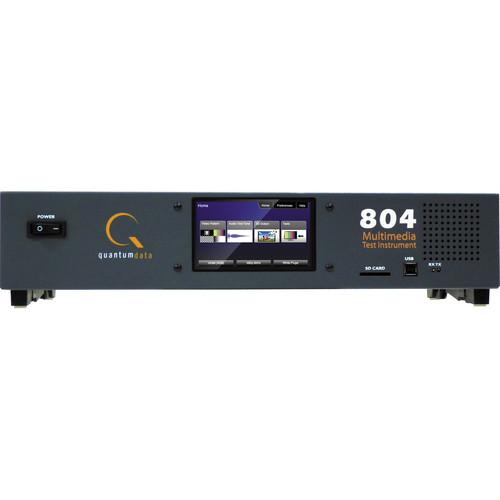

User Manual for Quantumdata 804 Multimedia Test Instrument Click to enlarge the picture
Contents of the user manual for the Quantumdata 804 Multimedia Test Instrument
- Product category: Video & Audio Signal Generators Quantumdata
- Brand: Quantumdata
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantumdata Video & Audio Signal Generators
|
User manual for the Quantumdata 804 Multimedia Test Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantumdata product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantumdata user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantumdata product will considerably shorten its lifespan!
|
Product description The Quantum Data 804 Multimedia Test Instrument is a rack mountable video test generator designed for testing HDMI flat panel TVs. The 804 test instrument features four HDMI outputs which are active simultaneously for testing HDTVs with multiple HDMI inputs. The test generator can also output component analog and composite analog for testing an HDTVs analog video outputs. Switches between timings and test patterns in less than 100ms. The instrument is equipped with standard video timings and test patterns including 3D patterns and tests for HDMI protocols such as HDCP, EDID and CEC.
The 804 is designed to test compressed and uncompressed HDMI audio formats by using a variety of audio test signals. An HDTV's analog audio input can also be tested using the 804's programmable analog audio outputs. The instrument can be controlled through the touch screen interface which also provides status during testing. The multimedia test instrument can be operated through an extensive command set for control by an automated test system. - Analog Video Outputs
- Test HDTVs analog component and composite video inputs
- Standard Video Timings and Patterns
- Supports standard video timings and test patterns, including HDMI 3D test images
Switches between timings and test patterns in less than 100ms - HDMI and Analog Audio Outputs
- Support HDMI compressed and uncompressed audio formats various patterns with programmable amplitude, sampling rate and bit depths
- Serial Command Line Interface
- RS232 and USB interface for command line control or for automated test system
- Color Touch Display
- Monitor the status of the test on the color display and configure the 804 through the touch interface
- Rack Mountable
- Fits in a standard 19" relay rack. Occupies two rack units.
In the Box Quantumdata 804 Multimedia Test Instrument Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Quantumdata 804 Multimedia Test Instrument in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuantumdata 00-00225 Specs | Formats | Over 110 standard timings for consumer electronics and computer | | Test Patterns | Over 35 standard test patterns add custom bitmaps
Moving pattern: ZonePlate, PGCwrgb, imported bitmaps
HDMI 3D formats: 3D images; add 3D bitmap images, top-and-bottom, side-by-side,frame packing
Special test patterns: HDCP, EDID, CEC Ping | | | | Connectors | 4 x HDMI, type A | | HDMI Video | Pixel rate: up to 165 MHz
TMDS clock: rate 2.25 Gb/s
Encoding (HDMI): RGB / YCbCr
(DVI): RGB
Sampling mode (HDMI): 4:4:4 / 4:2:2
(DVI): 4:4:4
Color depth (HDMI): 24/30/36 bits per pixel
(DVI): 24 bits per pixel
Color space ITU BT.601 & BT.709 | | HDMI Audio | Sampling rates (kHz): 32.0, 44.1, 48, 88.2, 96, 176.4, 192.0
Number of channels: 2 to 8
Audio content: FL, FR, LFE, RL, RR, RC, FLC, FRC, RLC
Bits per sample: 16, 20, 24
Audio formats: LPCM, Dolby Digital, DD+, DTS-ES
Frequency range: 10 Hz to 20 kHz in 1 Hz increments(sine wave LPCM)
Amplitude: -99 dB to 0 dB in 1 dB increments | | | | Connectors | 3 x BNC input
1 x 15-pin D-Sub VGA output
1 x BNC CVBS
1 x S-Video Y/C
2 x RCA analog audio output
1 x Optical, S/PDIF digital audio input | | Component Video (Y, Pr, Pb) | Bit depth: 24 bit color
Pixel rate: Up to 80 MHz (resolutions above 80 MHz are supported through pixel doubling)
Colorimetry: YPbPr
Sync type: Composite | | Component Video (RGB) | Bit depth: 24 bit color
Pixel rate: up to 80 MHz (resolutions above 80 MHz are supported through pixel doubling)
Colorimetry: RGB, YPbPr
Sync Type: Separate and Composite | | Analog Composite Video Output | Encoding: NTSC, PAL
Pixel Rate range: 13.5 - 13.52 MHz
Sync Type: Composite | | | | Screen Size (H x V) | 480 x 272 pixels | | Color | 24 bit RGB | | | | RS-232 | Automated command line control | | USB Host | Attachable keypad (back panel)
Updating firmware / gateware and command line (front panel) | | SD Card Slot | Updating firmware / gateware (front panel) | | | | Voltage Range | 100 - 240 VAC | | Frequency | 50 - 60 Hz | | Power | 24 VA | | Dimensions (H x W x D) | 3.25 x 16.5 x 6.1" (8.3 x 41.9 x 15.5 cm) | | Weight | 6.62 lb (3.0 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 9.0" |
