User Manual for Quantumdata Auxiliary Channel Analyzer Emulation Passive Monitoring Hardware for 780 780A Auxiliary Channel Analyzer Click to enlarge the picture
Contents of the user manual for the Quantumdata Auxiliary Channel Analyzer Emulation Passive
- Product category: Signal Measurement Quantumdata
- Brand: Quantumdata
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quantumdata Signal Measurement
|
User manual for the Quantumdata Auxiliary Channel Analyzer Emulation Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quantumdata product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quantumdata user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quantumdata product will considerably shorten its lifespan!
|

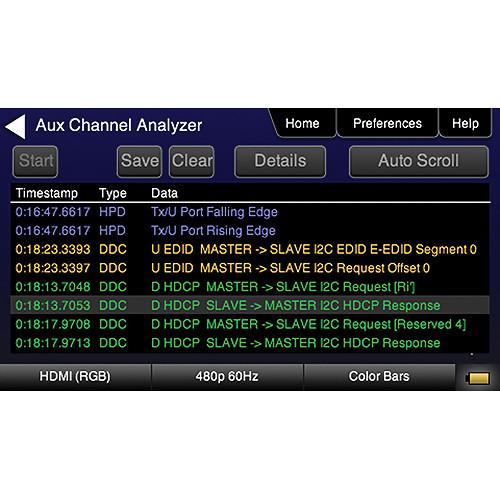

Product description The Auxiliary Channel Analyzer (ACA) Emulation + Passive Monitoring Hardware from Quantum Data passively monitors hot plug events, HDCP and EDID transactions, and CEC messages on an existing HDMI installation. The ability to passively monitor two separate sets of auxiliary data is especially useful for analyzing interoperability problems in an HDMI system consisting of three devices (source, repeater, and sink). The passive monitoring feature adds two upstream monitoring ports and two downstream monitoring ports in addition to emulation configuration.The ACA features enable installers, lab technicians, and engineers to monitor DDC transactions such as HDCP and EDID as well as hot plug-related events while emulating device(s) in the HDMI system. The DDC transactions, CEC messages, and hot plug events are decoded and presented sequentially on the 780/780A Analyzer’s color display.With the passive monitoring capability, users can connect to an HDMI system to passively monitor each side of a repeater device such as an A/V receiver. The 780 Analyzer's ACA feature offers the additional flexibility to monitor passively on one side of an HDMI system while emulating an HDMI device and monitoring its transactions on the other side. For example, the analyzer can emulate a set top box (STB) connected to the input side of an A/V receiver and monitor on the output side of the A/V receiver between it and the HDTV. Alternatively, troubleshooting personnel can emulate the HDTV connected to the output side of an A/V receiver while passively monitoring the upstream side between the STB and the input of the A/V receiver. In each case, the two sides of the HDMI-HDCP system transactions; upstream and downstream are shown interleaved on the GUI of the 780 Analyzer to provide an integrated view. Note: Requires an optional hardware board with 4 additional HDMI ports. This is hardware and is a factory installed option. It can be ordered with the 780, 780A & 780B. It can also be added to an existing unit but must be done at the factory. - Auxiliary Channel Analyzer (ACA) passively monitors hot plug events, HDCP and EDID transactions, and CEC messages on an existing HDMI installation 1
Please Note: Requires an optional hardware board with 4 additional HDMI ports close - In addition to emulation configuration, adds two upstream monitoring ports and two downstream monitoring ports
- Includes emulation monitoring option
- DDC transactions, CEC messages, and hot plug events are decoded and presented sequentially on the 780/780A Analyzer's color display
