Product description The 95-00065 HDMI Network Analyzer Option for 780 / 780A from Quantum is a software only testing option for the 780 and 780A Video Generators and Analyzers.

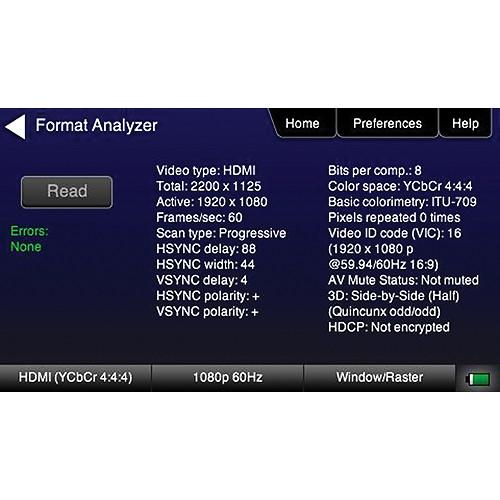

Its HDMI Source Video Test views the HDMI video timing data and video InfoFrame data, including 3D metadata, from an HDMI source device.
The software's HDMI Source Audio Test views the audio format: sampling rate, Bit depth of the decoded audio IECC headers, audio InfoFrames, and channel status bits of an HDMI audio source.
The 95-00065 includes a CEC Ping test where HDMI CEC source and sink devices "ping" HDMI devices in a network to discover CEC devices.
The HDCP - HDMI HDCP Sink Test Verifies DTV's and repeater's handling of HDCP encrypted video and the HDMI Source Test checks a sources max HDCP device's capabilities.
EDID - HDMI EDID Sink Test Views entire EDID contents and checks for errors and runs portions of the EDID compliance test: HDMI EDID Source Test Emulate any EDID and test a source's response, Store/Load EDIDs. - Its HDMI Source Video Test
- Views the HDMI video timing data and video InfoFrame data
- HDMI Source Audio Test
- Views sampling rate and bit depth
- CEC Ping Test
- Pings devices to discover CEC devices
- HDMI HDCP Sink Test
- Verifies DTV's and repeater's handling of HDCP encrypted video
- HDMI Source Test
- Checks sources of HDCP capabilities
- HDMI EDID Sink Test
- Checks EDID for errors
- HDMI EDID Source Test
- Tests EDID response
