User Manual for Que Audio Q 210 Video Shotgun Microphone Kit Click to enlarge the picture
Contents of the user manual for the Que Audio Q 210 Video Shotgun
- Product category: Shotgun Microphones Que Audio
- Brand: Que Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Que Audio Shotgun Microphones
|
User manual for the Que Audio Q 210 Video Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Que Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Que Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Que Audio product will considerably shorten its lifespan!
|

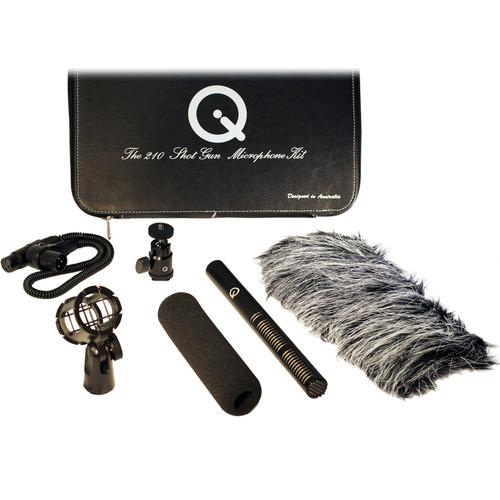

Product description The Q 210 Video Shotgun Microphone Kit from Que Audio is intended to suite today's compact digital HD cameras. The Q 210 Video Shotgun Microphone Kit delivers the 210 compact, back-electret shotgun microphone that's designed to remain out of the frame. The microphone's rear and side noise rejection results in a focused pickup pattern without any mechanical or off-axis noise. The kit ships complete with a 11.81" (30.0 cm) cable featuring a 90° XLR connector, shockmount, cold shoe adapter, Wombat windmuff, foam windscreen and carrying case. - High sound pressure level
- 210.0 mm compact profile and 22.0 mm wide body
- Full 20 Hz to 20 kHz uncompromised frequency response
- Supercardioid for excellent on and off axis rejection
In the Box Que Audio Q 210 Video Shotgun Microphone Kit 210 Shotgun Microphone Shockmount Angled XLR Cable - 11.81" (30.0 cm) Wombat Fluffy Windmuff Cold Shoe Adapter Foam Windscreen Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Que Audio Q 210 Video Shotgun Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQue Audio Q 210 Specs | | | Operating Principle | Line Gradient | | Transducer | Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB | | Maximum SPL | 139 dB SPL | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | -36 dB | | Dynamic Range | 112 dB | | | | Operating Current Consumption | 5.0 mA | | Operating Voltage | 48 V | | Length | 8.27" / 210 mm | | Diameter | 0.87" / 22 mm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 11.5 x 7.5 x 2.7" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
