Product description - Product Demo 1
- Product Demo 2

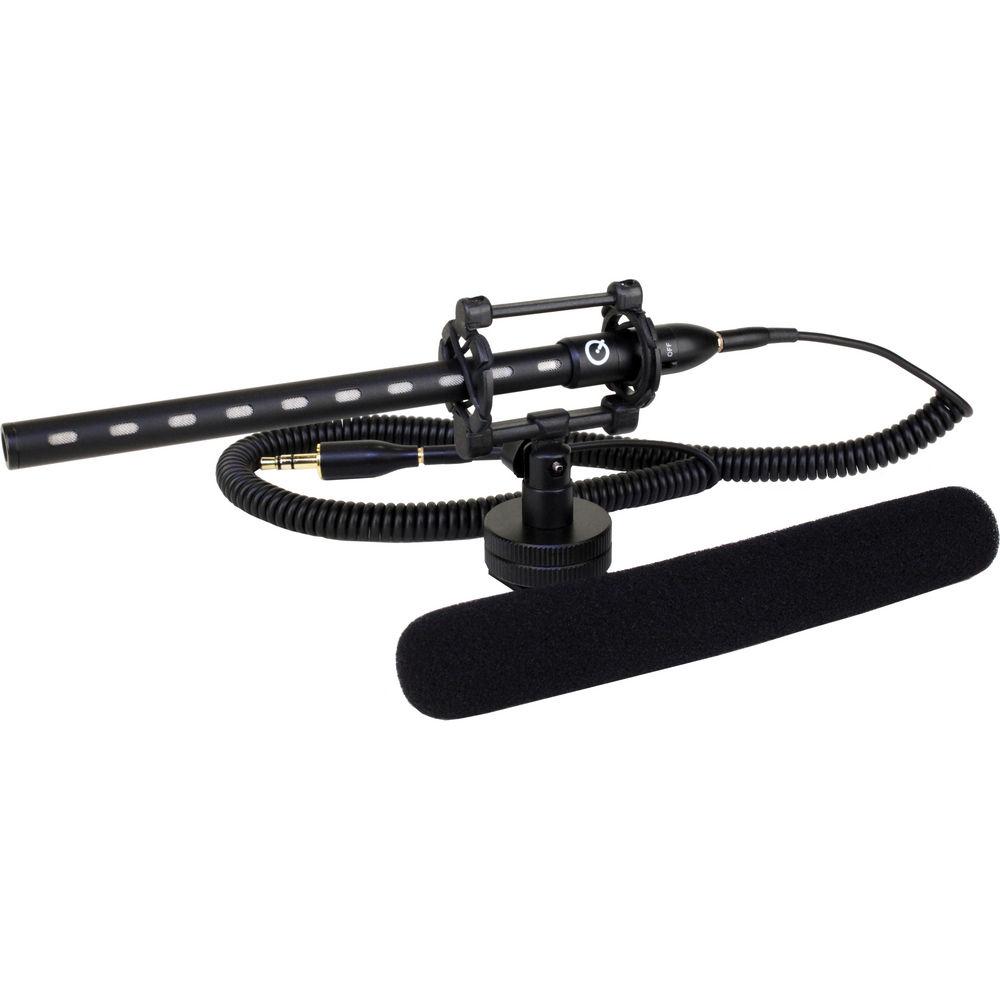

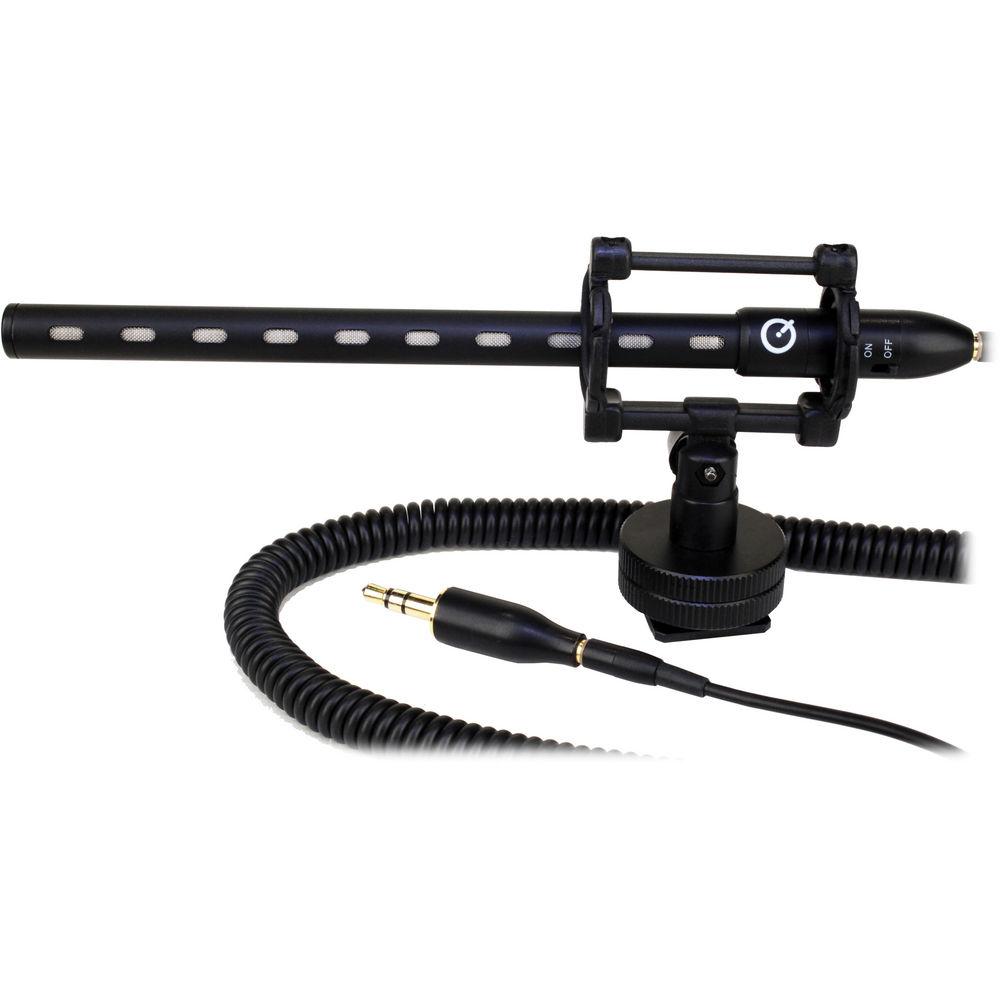

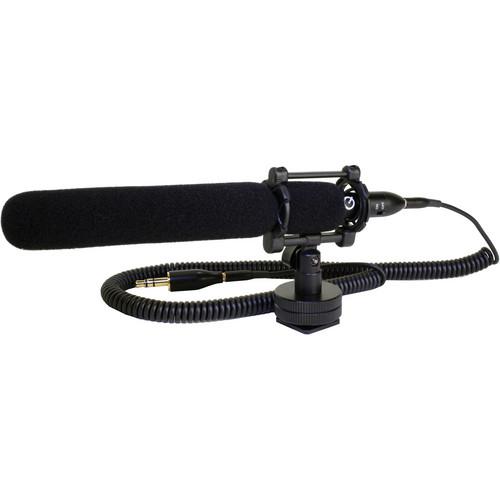

The Q DSLR-Video Microphone Kit Lite from Que Audio includes the Q Mini Shotgun Microphone plus the essential components for on-camera mic applications. Optimized for travel and affordability, this comprehensive bundle also includes the QSM1 Shock Mount, QM1 Run and Gun Cold Shoe Adapter, QCBL6 30.0 cm Curly Cable (Q compact thread (m) to Q compact thread (m)), DAAD TRL Q compact thread (f) to TRS 3.5mm adapter (m), QWJ3 Windscreen, two 1.5V batteries, and a Zip Pouch.
This kit was designed specifically for use with HD camcorders and DSLR cameras wherever and whenever a compact, lightweight, on-board run-and-gun shotgun mic is required. The Mini Shotgun hones in on sound straight ahead for high-quality, focused audio capture. While it is extremely small and unobtrusive, with a profile resembling a pencil, it possesses on / off axis rejection properties comparable to those of standard wide body shotgun microphones. It accomplishes this via a hypercardioid polar pattern. It's also got high SPL capabilities. Self-powered by the included batteries, the Mini Shotgun can also be phantom powered for balance and low impedance via the optional QAD3 XLR adapter (not included). You may also choose to make use of optional (not included) adapters enabling +48V, wireless and other connections.
Additional optional accessories that may enhance your use of this kit include: QWJ1 Wombat Fluffy Windmuff, QMB1 Mini Boom Pole, SM4 Shock Absorber, and QM2 High Quality Shoe Mount with adjustable ball head. - Includes the Q Mini Shotgun Microphone plus the essential components for on-camera mic applications
- Optimized for travel and affordability, this comprehensive bundle also includes the QSM1 Shock Mount, QM1 Run and Gun Cold Shoe Adapter, QCBL6 30.0 cm Curly Cable (Q compact thread (m) to Q compact thread (m)), DAAD TRL Q compact thread (f) to TRS 3.5mm adapter (m), QWJ3 Windscreen, two 1.5V batteries, and a Zip Pouch
- Designed specifically for use with HD camcorders and DSLR cameras wherever and whenever a compact, lightweight, on-board run-and-gun shotgun mic is required
- Mini Shotgun hones in on sound straight ahead for high-quality, focused audio capture
- While it is extremely small and unobtrusive, with a profile resembling a pencil, it possesses on / off axis rejection properties comparable to those of standard wide body shotgun microphones. Accomplishes this via a hypercardiod polar pattern
- Back electret capsule principle makes Mini Shotgun a condenser mic, eliminating need for a polarizing power supply by utilizing permanently charged material
- Sensitivity is 36 dB @ 1.0 V @ 1.0 Pa
- Sound pressure level of 124 dB @ 1.0 KHz
- Self-powered by the included batteries, the Mini Shotgun can also be phantom powered for balance and low impedance via the optional QAD3 XLR adapter (not included)
- Windscreen diffuses wind with its sponge-like body, thus minimizing interference with audio capture and making for better, clearer sound
- You may also choose to make use of optional (not included) adapters enabling +48V, wireless and other connections
- Additional optional accessories that may enhance your use of this kit include: QWJ1 Wombat Fluffy Windmuff, QMB1 Mini Boom Pole, SM4 Rubber Shock Absorber for use between mini shock mount and cold shoe, and QM2 High Quality Shoe Mount with adjustable ball head / gimbal

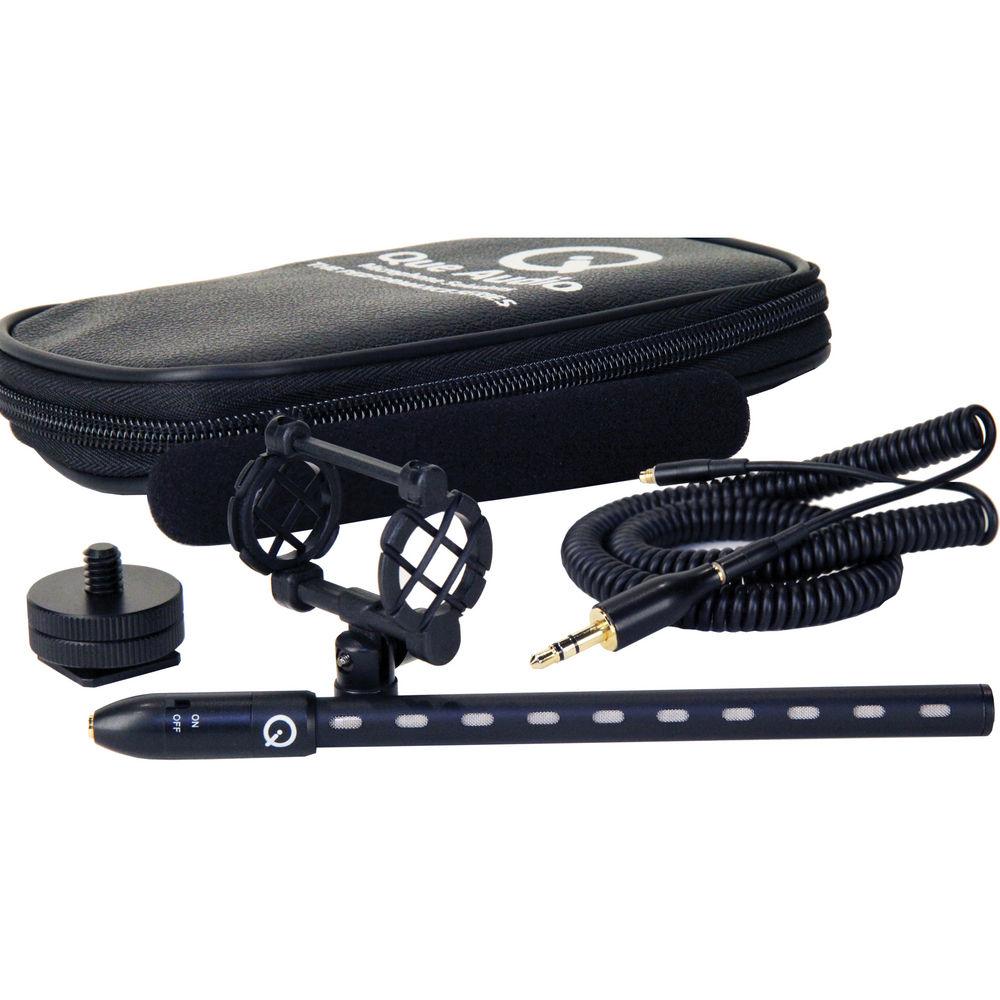

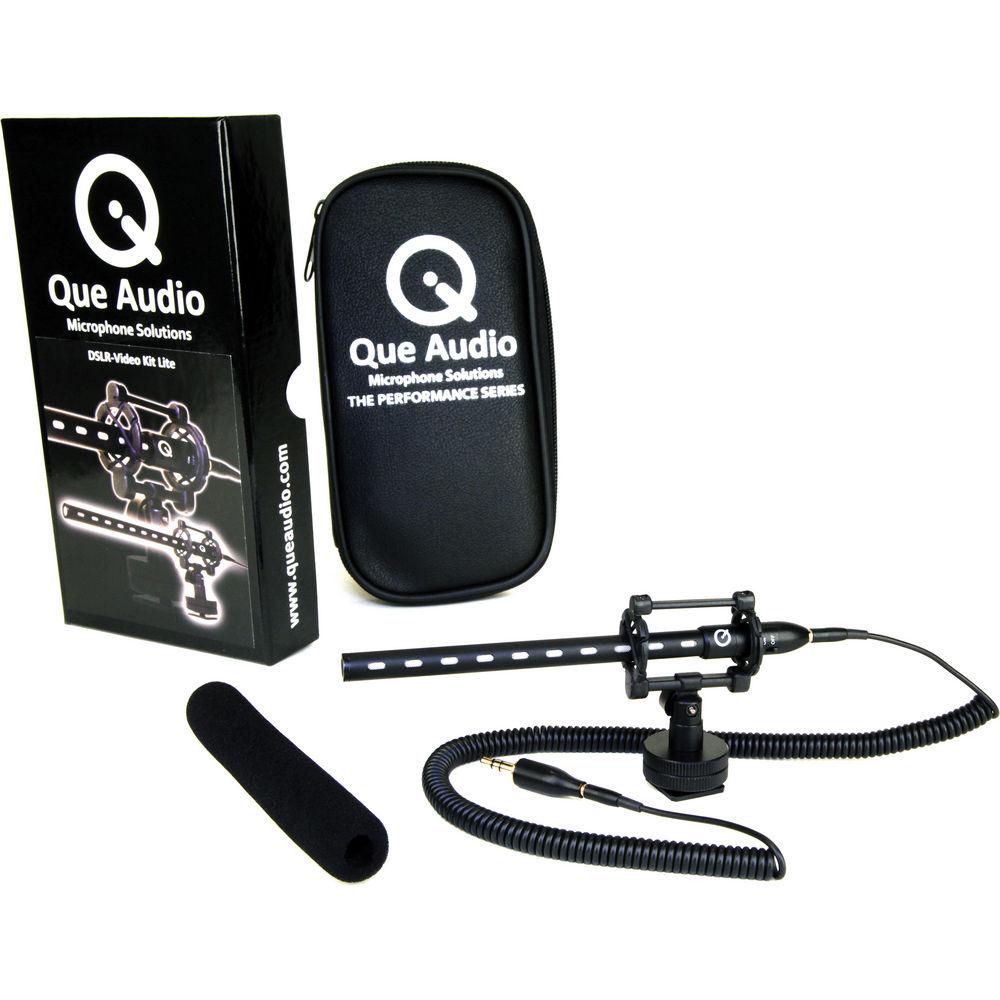

In the Box Que Audio Q DSLR-Video Microphone Kit Lite MSG1 Q Mini Shotgun Microphone QSM1 Mini Shockmount QM1 Run And Gun Cold Shoe Adapter QCBL6 Coiled Q-Compact Cable - 11.81" (30cm) DAAD TRL Q-Compact to 1/8" (3.5mm) TRS Adapter QWJ3 Foam Windscreen For Q Mini Shotgun Microphone 2 x AG3 1.5 V Batteries Zip Pouch Table of Contents
|
Upload User Manual
Have you got an user manual for the Que Audio Q DSLR-Video Microphone Kit Lite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQue Audio Q DSLR Specs | | | Operating Principle | Line Gradient | | Transducer | Electret Condenser | | Polar Pattern | Hypercardioid | | Frequency Range | 30 Hz to 18 kHz | | Maximum SPL | 124 dB SPL | | Impedance | 600 Ohms | | Sensitivity | -36 dB | | | | Battery Type | 2 x 1.5 V Button | | Length | 4.92" / 125 mm | | Diameter | 0.39" / 10 mm | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.6 x 4.1 x 1.3" |
