Product description The Single-Ear Headworn Omnidirectional Microphone Bundle from Que Audio comes with one petite beige DA12 Single Ear Headworn Omnidirectional Microphone, DAAD SHL Shure Q-Adapter, DAAD SEL Sennheiser Q-Adapter, DAAD ATL Audio Technica Q-Adapter, and DAAD AKL AKG Q-Adapter. The petite beige DA12 Headworn Microphone features 2.5mm capsule and a flexible earpiece design that can be adjusted to suit smaller and larger ears. Furthermore, adjustable boom length makes DA12 suitable for different faces and applications. For connecting the included microphone to the TA4 inputs on Shure bodypack transmitters, the bundle comes with DAAD SHL Q Compact Connection Adapter. The bundle also includes Que Audio DAAD SEL Q-Compact to Sennheiser Adapter for connections to Sennheiser 1/8" (3.5mm) TRS bodypack transmitter connections. The included black DAAD ATL Q-Compact to Audio-Technica Adapter can be used to convert threaded compact connections for use with Audio-Technica wireless bodypack transmitters. For connecting the DA12 mic to the compatible AKG beltpack transmitters, the bundle includes a black DAAD AKL Adapter. - DA12 Headworn Microphone (Petite Beige) The Que Audio DA12 Headworn Microphone incorporates Da-Cappo's 2.5mm capsule for unobtrusive, pristine quality audio during presentations, broadcast applications and much more. The miniature capsule yields a wide frequency response and omnidirectional polar pattern without sacrificing clarity. Other features include a flexible boom that is adjustable in length from 2.75 to 3.25". The DA12 features a removable cable terminated with Que Audio's proprietary Q-Connector. A vast array of Que Audio Q-Adapters are available for use with various transmitters, preamplifiers, etc. (sold separately). The DA12 includes foam windscreens, detachable cable, tie clip, and storage pouch. Note: Cable features a proprietary Que Audio Q-connector. A Que Audio Q-Adapter must be purchased separately.
- Radical new earpiece design that can be adjusted to suit smaller and larger ears
- Water resistant enclosure design
- Adjustable boom length to suit different faces and applications

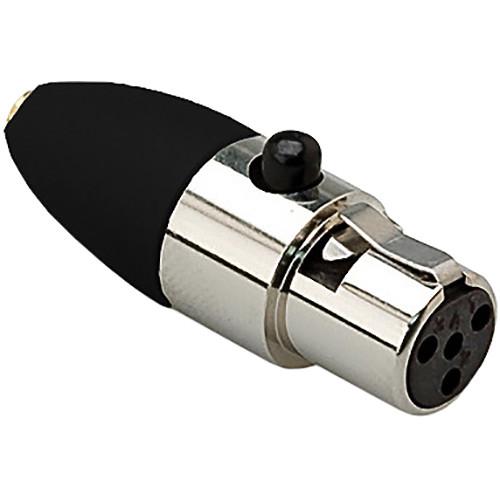

- DAADSHL Q Compact Connection Adapter for Shure Bodypacks (Black) The Que Audio DAADSHL Q Compact Connection Adapter connects Que Audio microphones that feature their proprietary Q Connection, to the TA4 inputs on Shure bodypack transmitters.

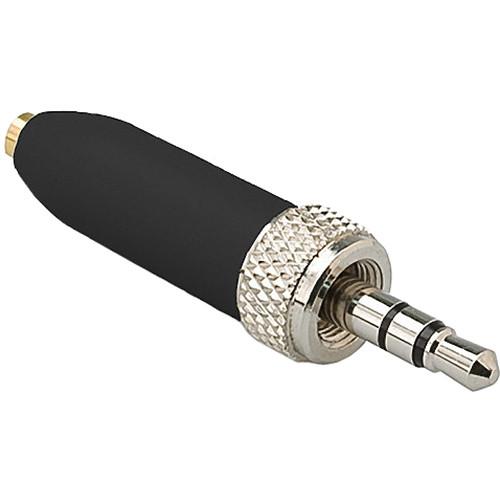

- DAAD SEL Q-Compact to Sennheiser 1/8" TRS Adapter The Que Audio DAAD SEL Q-Compact to Sennheiser Adapter is used to convert Que Audio threaded compact connections to Sennheiser 1/8" (3.5mm) TRS bodypack transmitter connections.

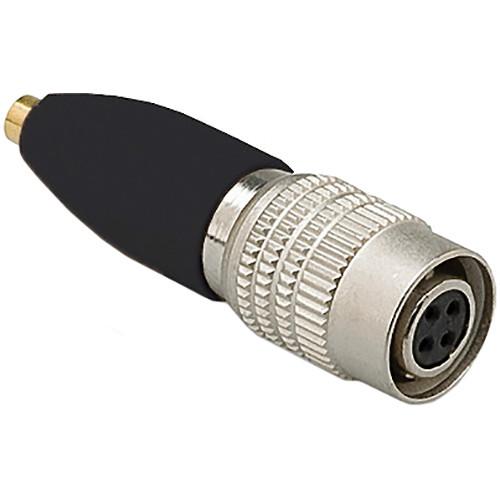

- DAAD ATL Q-Compact to Audio-Technica Adapter (Black) The black DAAD ATL Q-Compact to Audio-Technica Adapter from Que Audio is used to convert Que Audio threaded compact connections for use with Audio-Technica wireless bodypack transmitters. This adapter is compatible with DA12 Headworn, DA04 Lavalier, MSG1 Mini Shotgun, and MSG PRO Mini Shotgun PRO Microphones. Note: MSG1 Mini Shotgun and MSG PRO Mini Shotgun PRO Microphones are also included in the camera kits like DSLR-Video Kit, DSLR-Video PRO Kit, Sniper Kit, and Sniper PRO Kit from Que Audio.

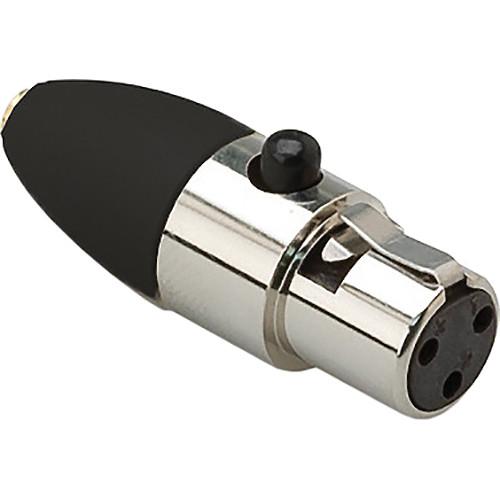

- DAAD AKL Adapter (Black) The Que Audio DAAD AKL Adapter (Black) is designed to attach the Que Audio microphones to compatible AKG beltpack transmitters.
In the Box Bundle Items DA12 Headworn Microphone (Petite Beige) vucvedqradftdtbbqbetwecewwrwbtwuw - Compact to Compact Cable (Beige)
2 x - Standard-Density Windscreens - Beige (5 Pack)
DAADSHL Q Compact Connection Adapter for Shure Bodypacks (Black) DAAD SEL Q-Compact to Sennheiser 1/8" TRS Adapter vucvedqradftdtbbqbetwecewwrwbtwuw DAAD ATL Q-Compact to Audio-Technica Adapter (Black) DAAD AKL Adapter (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Que Audio Single-Ear Headworn Omnidirectional Microphone Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DA12 Headworn Microphone (Petite Beige)
Transducer | Back electret condenser | Polar Pattern | Omnidirectional | Boom Length | Adjustable 2.75 to 3.25" (70 to 83 mm) | Frequency Response | 20 Hz to 20 kHz | Sensitivity | -45 ± 3 dB | Output Impedance | 2 kOhms ± 30% | Maximum Input Sound Level | 140 dB | Power Requirements | Operating voltage: 1.5 - 12 V | Cable | Length: 5.90' (1.8 m) Diameter: 0.05" (1.4 mm) Connector: Proprietary Q-connector. Requires Q Audio adapter (sold separately) | Dimensions | 0.13" (3.5 mm) without cable 0.09" (2.5 mm) capsule diameter | Weight | 0.03 oz (1 g) | | Box Dimensions (LxWxH) | 7.6 x 4.2 x 1.2" | - DAADSHL Q Compact Connection Adapter for Shure Bodypacks (Black)
| Box Dimensions (LxWxH) | 1.4 x 0.5 x 0.3" | - DAAD SEL Q-Compact to Sennheiser 1/8" TRS Adapter
| Box Dimensions (LxWxH) | 4.0 x 2.0 x 0.25" | - DAAD ATL Q-Compact to Audio-Technica Adapter (Black)
Compatible With | DA12 Headworn Microphone DA04 Lavalier Microphone MSG1 Mini Shotgun Microphones MSG PRO Mini Shotgun PRO Microphones | | Box Dimensions (LxWxH) | 4.6 x 4.1 x 0.6" | - DAAD AKL Adapter (Black)
| Box Dimensions (LxWxH) | 5.0 x 4.0 x 0.1" |
