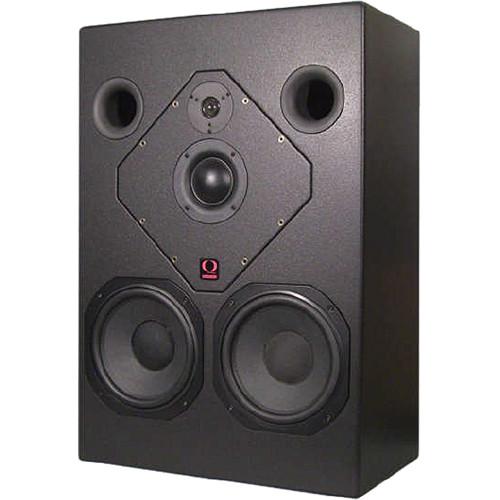

User Manual for Quested HQ210 Mid-Field Main System Passive Reference Monitor Click to enlarge the picture
Contents of the user manual for the Quested HQ210 Mid-Field Main System Passive
- Product category: Studio Monitors Quested
- Brand: Quested
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quested Studio Monitors
|
User manual for the Quested HQ210 Mid-Field Main System Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quested product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quested user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quested product will considerably shorten its lifespan!
|
Product description The HQ210 Mid-Field/Main System Passive Reference Monitor is the largest passive monitor built by Quested. With its rotatable Mid / HF section, it can be used vertically or horizontally, soffit-mounted as a main monitor or used as a mid-field when stand mounted.
The three sections of the passive filter networks are independently accessible on the triple pair binding post tray, making tri-wiring or tri-amping possible. There are also upgrade paths that could ultimately convert the HQ210 into the Q210, with DSP crossover control and six amplification channels.
Typical applications for the HQ210 would be as a main monitor in mid-sized control rooms, in an L/C/R system with additional surrounds or initially as a monitor when a later active upgrade is anticipated. - Largest passive monitor by Quested
- Can be used vertically or horizontally
- Can be soffit mounted or stand mounted
- Each section independently accessible
- Triple pair posts for tri-wiring or tri-amping
In the Box Quested HQ210 Mid-Field/Main System Passive Reference Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Quested HQ210 Mid-Field Main System Passive Reference Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuested HQ210 Specs | | | Monitor Type | Passive 3-Way | | Power Rating | 900 W RMS Max Power Rating at 8 Ohms | | Impedance | 8 Ohms | | Drivers | HF Driver: 1 x 1.12" / 28 mm Soft Dome Tweeter
MF Driver: 1 x 3" / 75 mm Soft Dome
LF Driver: 2 x 10" / 250 mm Cone | | | | Frequency Response | 45 Hz to 20 kHz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 115 dB | | Speaker Sensitivity | 92 dB | | | | Crossover Frequency | Low-Pass Frequency: 90 Hz
High-Pass Frequency: 2.8 kHz | | | | I/O | 3 x Binding Post Analog Input Accepts 4 mm Banana Plugs or Bare Wire | | | | Dimensions (W x H x D) | 23.2 x 33.5 x 14.0" / 590.0 x 850.0 x 355.0 mm | | Weight | 132.3 lb / 60.0 kg |
