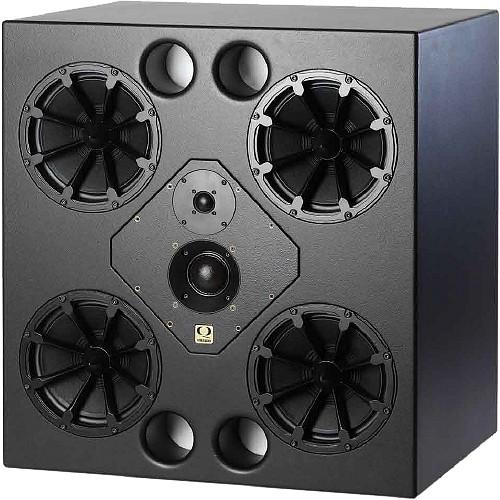

Product description The Q412D Monitoring System from Quested includes a three-way active speaker designed to be soffit-mounted main monitors for large control rooms. The system comprises four 12" low frequency drivers, one 3" mid frequency driver, and one 1.5" high frequency driver that combine to provide effortless and articulate performance with sound pressure levels of 130 dB.The Q412 was Quested's first studio monitor to utilize four 12" bass drivers in place of the standard two 15" configuration, offering faster bass transients, less distortion, and an extended low frequency response. The monitor is supplied with a separate electronics package containing one AP1300 amplifier, two AP800 amplifiers, and the SM748 electronic crossover/loudspeaker management system. The Q412 ships with four IEC power cables. In the Box Quested Q412D Active 3-Way Monitoring System with Amp and Crossover (Single) 2 x AP800 2 Channel Power Amplifier AP1300 Power Amplifier SM748 - Digital Crossover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Quested Q412D Active 3-Way Monitoring System with Amp and Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuested Q412D Specs | | | Driver | Bass: 4 x 12" / 30.5 cm
Mid: 3" / 7.5 cm
High: 1.5" / 3.7 cm | | Maximum SPL | 130 dB at 1 m | | Frequency Response | 20 Hz to 20 kHz ±2 dB | | Input Connections | Gold Plated Binding Post: 3 x twin pair
Accepts 0.2" / 0.4 cm banana plugs or bare wires | | Amplifier (Power) | Bass: 1850 W (RMS) into 2 ohms
Mid: 450 W (RMS) into 8 ohms
High 450: 450 W (RMS) into 8 ohms | | Crossover Point | Low: 450 HZ Linkwitz-Riley 24 dB/oct
High: 4.5 kHz Linkwitz-Riley 24 dB/oct | | Dimensions (W x H x D) | 37.0 x 34.6 x 26.4" / 94.0 x 88.0 x 67.0 cm | | Weight | 286.6 lb / 130.0 kg | | | | Power Rating | 450 W into 8 ohms
770 W into 4 ohms | | Damping Factor | 400 @ 8 ohms 1 kHz | | Input Sensitivity | +7 dBm | | Input Impedance | 10 kOhms | | Gain | 33 dB | | Frequency Response | 20 Hz to 20 kHz | | Signal to Noise Ratio | Not specified by manufacturer | | Total Harmonic Distortion (THD) | 0.005% | | Input Connections | 3-pin XLR | | Output Connectors | Shrouded Binding Posts: 4 mm | | Controls Front Panel | On/Off, rotary potentiometers, mute | | Controls Rear Panel | 2/4 or 4/8 switch, stereo or bridged switch | | Indicators | Peak meters, mute, fault/DC & limit, bridged, power, temperature | | Cooling | Temperature warnings and 2 fans to assist | | Power Consumption | Not specified by manufacturer | | Power Requirements | 230 VAC @ 10 A max
120 VAC @ 20 A max | | Dimensions | 19 x 1.75 x 15" (48.2 x 8.8 x 38.1cm) | | Weight | 51 lbs (23kg) | | | | Power Rating | Watts RMS per channel
16 ohms: 400
8 ohms: 750
4 ohms: 1250
3 ohms: 1600
2 ohms: 1800 | | Damping Factor | 1 kHz, 8 ohms | | Input Sensitivity | 80 dB | | Input Impedance | 10 kOhms | | Gain | 33 dB | | Frequency Response | 20 Hz to 20 kHz | | Signal to Noise Ratio | Not specified by manufacturer | | Total Harmonic Distortion (THD) | 0.008% | | Input Connectors | 3-pin XLR | | Output Connectors | Shrouded Binding Posts: 4 mm | | Controls Front Panel | Level controls, mute, link switch, signal limiters, temperature | | Controls Rear Panel | 2 ohm and bridged LEDs | | Indicators | Level indicators, fault indicators, clip warning, 2 ohms, and bridged LEDs | | Cooling | Cooling fans and temperature controls | | Power Consumption | Not specified by manufacturer | | Power Requirements | 230 VAC @ 20.0 A max
120 VAC @ 38.0 A max | | Dimensions (W x H x D) | 18.9 x 5.1 x 18.1" (48 x 13 x 46cm) | | Weight | 70.5 lbs (32kg) | | | | Filter Type | Bessel/Butterworth/Linkwitz-Riley 12-24-48 dB/8ve
Bessel/Butterworth 18 dB/8ve | | Operating Modes | Input: 2/4
Output: 4/6/8 | | Crossover Frequencies | Parametric EQ (8 per Input / 9 per Output):
Gain: +15 dB to -30 dB in 0.1 db steps
Frequency: 19.7 Hz to 32 kHz, 136 octave steps
Q/BW: 0.4 to 128 / 2.5 to 0.008
(Sections can be switched to shelving response)High and Low-pass Filters (1 of each per output):
Frequency HPF: 10 Hz to 16 kHz, 1/36 octave steps
Frequency LPF: 35 Hz to 22 kHz, 1/36 octave steps | | Gain Range | Input: +6 dB to -40 dB in 0.1 dB steps
Output: +15 dB to -40 dB in 0.1 dB steps and mute | | Front Panel Switches | 12 x Mute buttons
12 x Channel edit buttons
6 x Utility buttons
3 x Rotary encoders | | Inputs | Analog: 4 x XLRf
Digital: Not specified by manufacturer | | Outputs | Analog: 8 x XLRm
Digital: Not specified by manufacturer | | Maximum Input Level | Not specified by manufacturer | | Maximum Output | +20 dBm into 600 ohms | | Frequency Response | 20 Hz to 20 kHz, +1/2dB (-3dB @ 32kHz) | | Dynamic Range | >116 dB, 20 Hz to 20 kHz unweighted | | Noise | Not specified by manufacturer | | Display | 2 x 24 character LCD
2 x 6 point input and 8 x6 point output meters | | Dimension | 19 x 11.8 x 1.75" (482 x 300 x 45mm) | | Weight | 7.3 lbs (3.3 kg) | | Specialties | Program limiter and look-ahead "D-Max" limiter per outputProgram Limiter:
Threshold: +22 dBu to -10 dBu
Attack: 0.3 to 90 mSec
Release: 2/4/8/16/32 x Attack timeD-Max Limiter:
Attack: 60 µS
Release: Slow/Medium/Fast |
