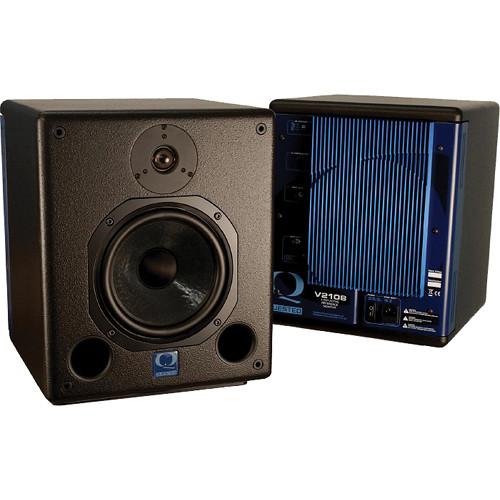

User Manual for Quested V2108 Active 2-Way Monitor - 400W Click to enlarge the picture
Contents of the user manual for the Quested V2108 Active 2-Way Monitor -
- Product category: Studio Monitors Quested
- Brand: Quested
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Quested Studio Monitors
|
User manual for the Quested V2108 Active 2-Way Monitor - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Quested product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Quested user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Quested product will considerably shorten its lifespan!
|
Product description The V2108 Monitor from Quested is a 400W, two-way active speaker designed for near and mid-field applications. The system comprises a single 8" low frequency driver and a 1.1" high frequency driver, which combine to provide effortless and articulate full-range performance with sound pressure levels of 112 dB. The integrated 400W Class-A/B power amplifier features a floating drive stage that delivers 200W to each driver, while the on-board HF/LF trim controls allow you to tailor the sound to your room and integrate an optional sub-woofer. The V2108 ships with an IEC power cable. -
- Soft-dome high frequency technology offers low-fatigue performance
- Class A/B power amplifier offers a current-driven floating drive stage
- Custom 8" low frequency drive unit provides powerful dynamics and extension
- Low and high frequency trim controls
- 24 dB/oct crossover slope for optimum drive unit efficiency
- High power delivery for cabinet footprint and size
- Pinpoint imaging for music and 5.1 surround applications
- Outperforms most 10"-based monitors
In the Box Quested V2108 Active 2-Way Monitor - 400W (Single) IEC Power Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Quested V2108 Active 2-Way Monitor - 400W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuested V2108 Specs | | | Monitor Type | Active 2-Way | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
LF Driver: 1 x 8" / 20 cm Woofer | | Amplification | HF Amplifier: Rated at 200 W RMS
LF Amplifier: Rated at 200 W RMS | | | | Frequency Response | 40 Hz to 20 kHz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 112 dB | | Signal-to-Noise Ratio | 100 dB | | Total Harmonic Distortion (THD) | 0.005% | | Analog Input Sensitivity/Gain | +7 to -11 dBu (Incrementally Variable) | | | | EQ | 1 x LF Shelf: -9 to +1 dB
1 x HF Shelf: -1 to +1 dB | | | | I/O | 1 x Combo XLR / 1/4" Balanced Analog Input (10 kOhms) | | | | AC Input Power | 115 VAC at 60 Hz | | Power Consumption | 38 W (Standby)
92 W (Typical)
161 W (Maximum) | | | | Dimensions (W x H x D) | 13.4 x 15.7 x 14.4" / 34.0 x 40.0 x 36.5 cm | | Weight | 50.7 lb / 23.0 kg | | | | Package Weight | 53.35 lb | | Box Dimensions (LxWxH) | 21.0 x 18.1 x 18.0" |
