User Manual for QuikLok M-61 1-Tier Adjustable Keyboard Stand Click to enlarge the picture
Contents of the user manual for the QuikLok M-61 1-Tier Adjustable Keyboard Stand
- Product category: Keyboard Stands QuikLok
- Brand: QuikLok
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QuikLok Keyboard Stands
 |
User manual for the QuikLok M-61 1-Tier Adjustable Keyboard Stand contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QuikLok product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QuikLok user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QuikLok product will considerably shorten its lifespan!
|

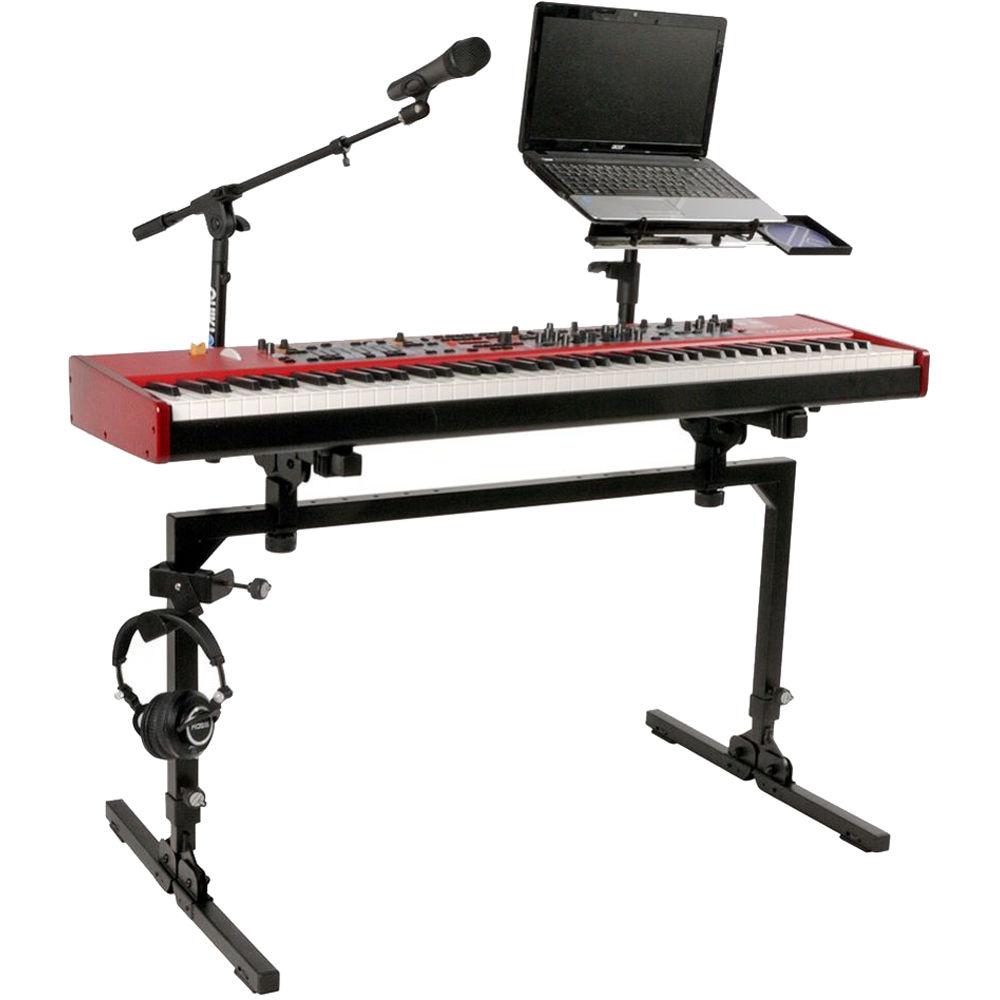

Product description The black M-61 1-Tier Adjustable Keyboard Stand from QuikLok features heavy-duty construction with width-adjustable tiers that expand from 11.02 to 34.65" and ten height-adjustment positions from 27.56 to 38.18". The sturdy frame can be used to hold large keyboards and digital pianos safely and securely, but is also suitable for medium-size live mixers, DJ coffins, recording, and audio equipment up to 25" deep. The M-61 design grants maximum leg room for comfortable playing and provides a large open area for placement of floor pedals. Solid rubber rest pads hold your equipment firmly. This stand allows set up and fold down in a snap and collapses flat to a compact size for easy transport and storage. In addition, rotating leveling feet compensate for uneven stage floors, avoiding any sort of inconvenient wobble. - Heavy-duty construction means the sturdy frame is built to hold the heaviest and largest of keyboards and digital pianos safely and securely, but is also ideal for medium size live mixers, DJ coffins, or other recording and audio equipment up to 25" deep
- 10 height-adjustment positions, from 27.6 to 38.2", are achievable by means of QuikLok's spring-loaded security pin device, making it extremely comfortable for playing while sitting or standing
- Provides maximum leg room for comfortable playing and allows a large open area for placement of floor pedals

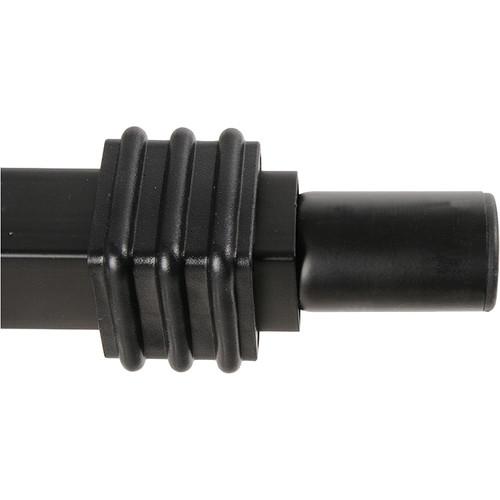

- Solid rubber rest pads hold your equipment firmly in place

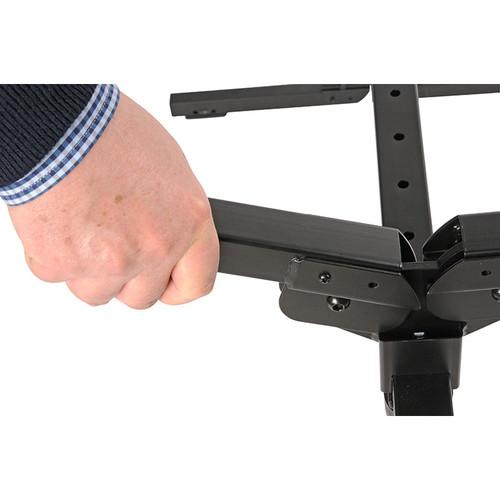

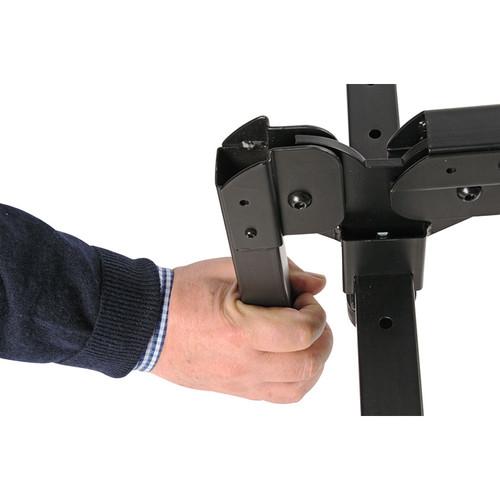

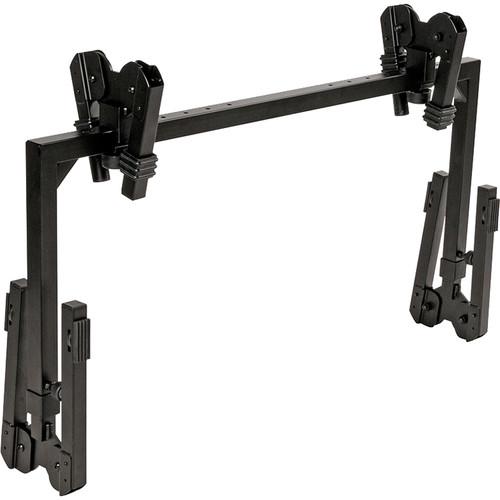

- Simple design allows set up and fold down of both tiers and legs in a snap, so that the stand folds flat to a very compact size for easy transport and storage

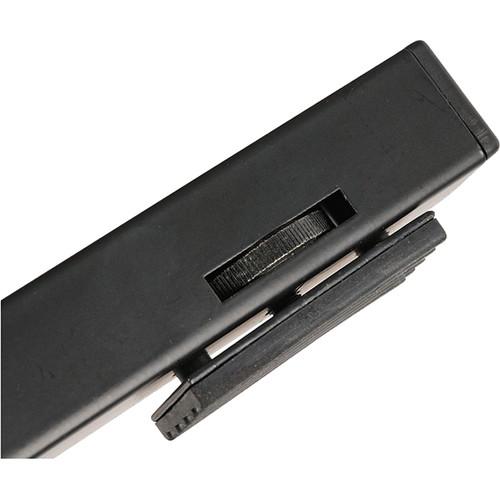

- Rotating, leveling feet compensate for uneven stage floors, avoiding any sort of inconvenient wobble

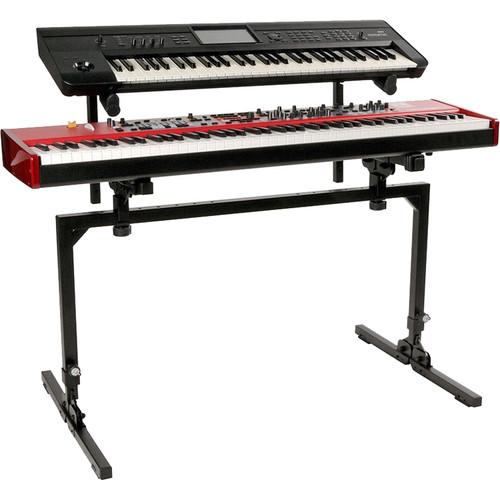

- Expandable to fit musicians' needs by adding any of the available QuikLok accessories such as: second tier, mic boom arm, sheet music holder, laptop, and tablet holder (all sold separately)
In the Box QuikLok M-61 1-Tier Adjustable Keyboard Stand (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QuikLok M-61 1-Tier Adjustable Keyboard Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQuikLok M-61 Specs | Height Positions | 10 positions from 27.56 to 38.18" / 70.00 to 96.98 cm (in increments of 1.18" / 3.00 cm) | | Frame | Width: 42.5" / 108.0 cm
Depth: 26.0" / 66.0 cm | | Tier Width Positions | 7 positions from 11.0 to 34.7" / 28.0 to 88.0 cm (in increments of 3.9" / 10.0 cm) | | Tier Depth | 16.9" / 42.9 cm | | Tubing | Frame: 1.4 x 1.4" / 3.5 x 3.5 cm | | Weight Capacity | 200.0 lb / 90.7 kg | | Folded Dimensions (L x W x H) | 42.51 x 27.16 x 7.68" / 107.98 x 68.99 x 19.51 cm | | Weight | 21.1 lb / 9.6 kg |
