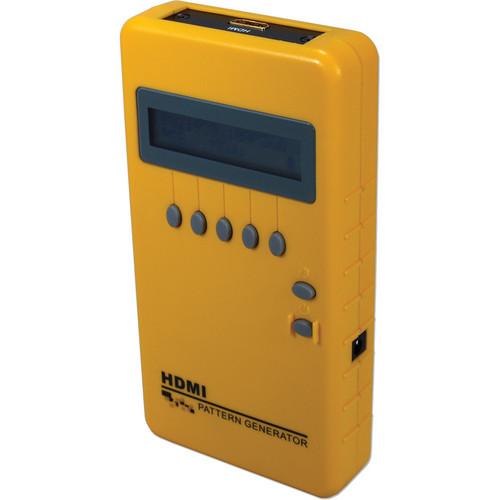

User Manual for QVS Portable HDMI Video Pattern Generator Click to enlarge the picture
Contents of the user manual for the QVS Portable HDMI Video Pattern Generator
- Product category: Video & Audio Signal Generators QVS
- Brand: QVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QVS Video & Audio Signal Generators
|
User manual for the QVS Portable HDMI Video Pattern Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QVS product will considerably shorten its lifespan!
|
Product description The QVS Portable HDMI Video Pattern Generator allows you to test and evaluate HDMI HDTV / HDCP displays or panels, and to easily troubleshoot any calibration issues. It uses 48 different resolutions from VGA to WUXGA (640 x 350 to 1920 x 1200), to HDTV's 1080p, and 36 video test patterns that quickly determine color performance, linearity, and HDCP. It has a native DVI mode, built-in audio support, and a HDCP tester.
This generator is Full HD HDMI 1.3, HDCP 1.2, and DVI 1.0 compliant and comes with easy-to-use push-buttons and OSD menu control via a 16 x 2 LCD screen. It also comes with a built-in rechargeable battery that allows for up to 8 hours of continuous usage. This generator is suitable for installers / integrators as it helps them save time and solve problems commonly encountered with HDTV displays. - HDCP 1.2 and DVI 1.0 compliant
UPC: 037229007411 In the Box QVS Portable HDMI Video Pattern Generator Power Adapter HDMI Cable with HDMI Female Connector (9.8') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QVS Portable HDMI Video Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQVS VPG-H Specs | Signal Type | 720 / 1080p, VGA / WUXGA | | Video Bandwidth | 225 MHz | | Output Connector | 1 x HDMI female | | Maximum Resolution | HDTV: Up to 1080p
PC: Up to 1920 x 1200 at 60 Hz | | Test Patterns | 36 patterns | | Resolutions | 48 resolutions | | Power Supply | 100 to 240 VAC / 12 VDC, 1.25 A | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Dimensions (L x W x H) | 7.4 x 3.7 x 1.3" (190.0 x 95.0 x 35.0 mm) | | Weight | 13.5 oz (385.0 g) | | | | Package Weight | 2.095 lb | | Box Dimensions (LxWxH) | 9.55 x 8.75 x 3.85" |
