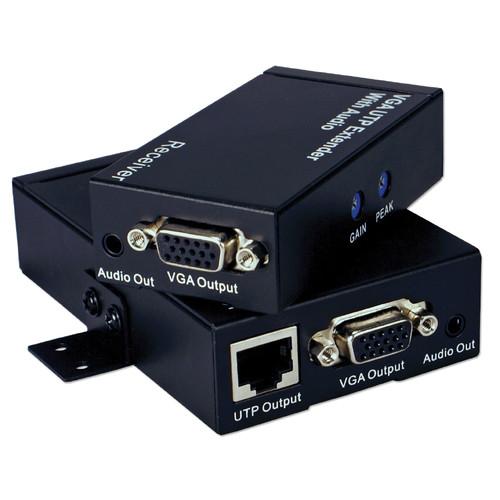

User Manual for QVS VA-E VGA WUXGA with Audio over Single CAT5e 6 Extender Kit Click to enlarge the picture
Contents of the user manual for the QVS VA-E VGA WUXGA with Audio
- Product category: Video Extenders & Repeaters QVS
- Brand: QVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QVS Video Extenders & Repeaters
|
User manual for the QVS VA-E VGA WUXGA with Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QVS product will considerably shorten its lifespan!
|
Product description VA-E VGA/WUXGA with Audio over Single CAT5e/6 Extender Kit from QVS is designed to connect a VGA/WUXGA video display to a computer, switch or distribution amplifier. It includes a transmitter unit, a receiver unit, and two power adaptors. It has gain and skew to compensate with UTP cable variations. Mounting flange on the transmitter module, pass-thru audio, and a video port provide installation flexibility. This unit supports resolution from 640 x 480 up to 1920 x 1440 depending on the distance and quality of CAT5e/6 UTP cable. Using a Belden CAT5e solid cable, it can support up to 1920 x 1200 60 Hz up to 100', 1280 x 1024 75 Hz up to 300', and 1024 x 768 75 Hz up to 500'. Note: Required Cables: Solid CAT5e/6 cables. - Transmits audio and video via a CAT5e/6 cable
- Provides pass-thru port for local monitor and speaker
- Receiver module provides equalization and gain control
- Transmitter module comes with mounting kit
- Supports GA/WUXGA up to 1920 x 1440 @ 60 Hz
- FCC, CE, and RoHS compliant
UPC: 037229007381 In the Box QVS VA-E VGA/WUXGA with Audio over Single CAT5e/6 Extender Kit 2 x Power Adaptor Mounting Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the QVS VA-E VGA WUXGA with Audio over Single CAT5e 6 Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQVS VA-E Specs | Video Signal Format | GA/SVGA, XGA/UXGA | | Video Bandwidth | Up to 150 MHz | | Insertion Loss | Less than 3 dB | | Impedance | RGB: 75 ohms, unbalanced
CAT5e: 100 ohms, balanced | | Video Signal Return Loss | -15 dB max from DC to 60 MHz | | Cable Equalization | CAT5e: Adjustable EQ controls | | Audio Frequency Response | 10 Hz to 25 kHz, -3 dB | | Audio Impedance | 10 kOhms | | Connectors | Transmitter Unit:
1 x 15-pin Sub-D, VGA input
1 x 3.5 mm phone jack, audio input
1 x 15-pin Sub-D, VGA output
1 x 3.5 mm phone jack, audio output
1 x RJ45, UTP output
1 x Power, input
Receiver Unit:
1 x 15-pin Sub-D, VGA output
1 x 3.5 mm phone jack, audio output
1 x RJ45, UTP input
1 x Power, input | | Operating Temperature | 32 to 120°F (0 to 49°C) | | Certification | FCC, UL, CE, RoHS compliant | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.6 x 7.6 x 2.2" |
