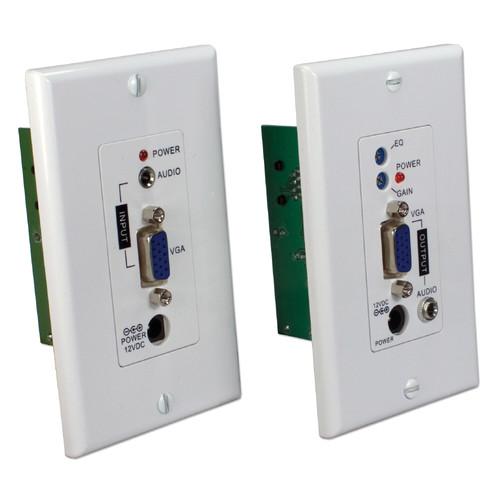

Product description The VA-EWP VGA/UXGA Audio/Video over CAT5e Wall-Plate Extender Kit from QVS sends VGA video and audio via a single CAT5e cable. This kit includes a wall-plate transmitter unit and a wall-plate receiver unit, as well as 2 universal power adaptors. It supports resolution up to 1600 x 1200 60 Hz at 330', 1280 x 1024 60 Hz at 394', 1024 x 768 60 Hz at 595.5', 800 x 600 60 Hz at 656', and 640 x 480 60 Hz at 984'. The receiver module features gain and EQ control. - Transmits audio/video via a single CAT5e/6 cable
- 350 MHz video bandwidth for clear and sharp images
- Receiver module provides equalization and gain control
- Active extender provides installation flexibility
- Supports VGA/UXGA up to 1600 x 1200 @ 60 Hz
- FCC, CE, and RoHS compliant
UPC: 037229007497 In the Box QVS VA-EWP VGA/UXGA Audio/Video over CAT5e Wall-Plate Extender Kit Universal Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QVS VA-EWP VGA UXGA Audio Video over CAT5e Wall-Plate Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQVS VA-EWP Specs | Video Signal | VGA/SVGA, XGA/UXGA | | Maximum Video Resolution | 1600 x 1200 @ 60 Hz, 330' (100 m)
1280 x 1024 60 Hz at 394' (120 m)
1024 x 768 60 Hz at 595.5' (180 m)
800 x 600 60 Hz at 656' (200 m) 640 x 480 60 Hz at 984' (300 m) | | Connectors | Transmitter:
15-pin Sub-D, VGA input
3.5 mm phone jack, audio input
RJ45, Cat5e
Receiver:
15-pin Sub-D, VGA output
3.5 mm phone jack, audio output
RJ45, Cat5e | | Insertion Loss | < 3 dB | | Impedance | RGB: 75 ohms, unbalanced
CAT5d: 100 ohms, balanced | | Video Signal Return Loss | -15 dB max from DC to 60 MHz | | Cable Equalization | CAT5e: adjustable EQ controls | | Audio Frequency Response | 10 Hz to 25 kHz, -3 dB | | Audio Impedance | 10 kOhms | | Operating Temperature | 32 to 120°F (0 to 49°C) | | Certifications | FCC, UL, CE, and RoHS compliant | | Power Supply | 12 VDC, 1.2 A | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.1 x 4.6 x 3.1" |
