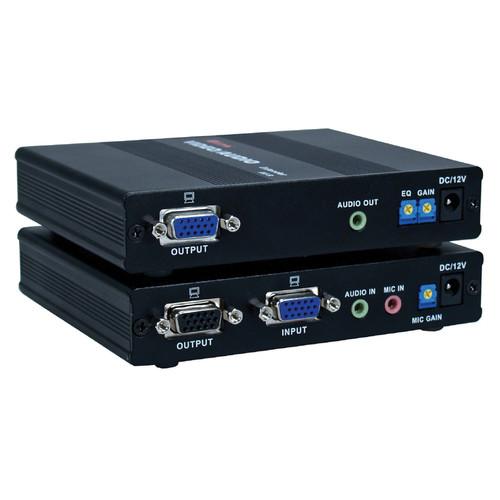

Product description The VAC5-EP VGA/QXGA/Stereo Audio over CAT5e Extender Kit from QVS includes a transmitter unit, a receiver unit, power adaptors, and a 3' 3.5mm/HD15 M-M cable. It is designed to extend audio and video signals up to 984' away via a CAT5e/6/RJ45 cable. This extender kit provides 3.5mm stereo audio and video equalization & signal gain adjustment. It supports 96 kHz audio sampling rate and maximum video resolution of 2048 x 1536/60 Hz for up to 164', 1280 x 1024/60 Hz for up to 328', 1024 x 768/60 Hz for up to 590', 800 x 600/60 Hz for up to 656.2', and 640 x 480/60 Hz for up 984,2'. The transmitter unit features 3.5mm/15-pin Sub-D/RJ45 local connectors for local screen and microphone input. Note: Required Cables: Solid CAT5e/6 cables. - Transmits audio and video via a CAT5e/CAT6 cable
- Provides pass-thru port for local video monitor
- Receiver module provides equalization and gain controls
- Transmitter module has stereo audio/microphone input port
- Audio sampling rate at 96 kHz with adjustable microphone gain input
- Supports VGA/QXGA up to 2048 x 1536 @ 60 Hz
- FCC, CE, and RoHS compliant
UPC: 037229007213 In the Box QVS VAC5-EP VGA/QXGA/Stereo Audio over CAT5e Extender Kit (984') 2 x Power Supply 3' 3.5mm-HD15 M/M Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QVS VAC5-EP VGA QXGA Stereo Audio over CAT5e Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQVS VAC5-EP Specs | Distance | 984' (300 m) | | Video Signal Format | VGA/SVGA, XGA/QXGA | | Video Bandwidth | Up to 150 MHz | | Insertion Loss | < 3 dB | | Impedance | RGB: 75 ohms, unbalanced
CAT5e: 100 ohms, balanced | | Video Signal Return Loss | -15 dB max from DC to 60 MHz | | Cable Equalization | CAT5e: Adjustable EQ controls | | Audio Frequency Response | 10 Hz to 25 kHz, -3 dB | | Audio Impedance | 10 kOhms | | Connectors | Transmitter:
1 x RJ45
2 x 15-pin Sub-D, VGA
2 x 3.5 mm phone jack, audio
1 x DC power
Receiver:
1 x RJ45
1 x 15-pin Sub-D, VGA
1 x 3.5 mm phone jack, audio
1 x DC power | | Operating Temperature | 32 to 120°F (0 to 49°C) | | Certification | RoHs compliant | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 2.5" |
