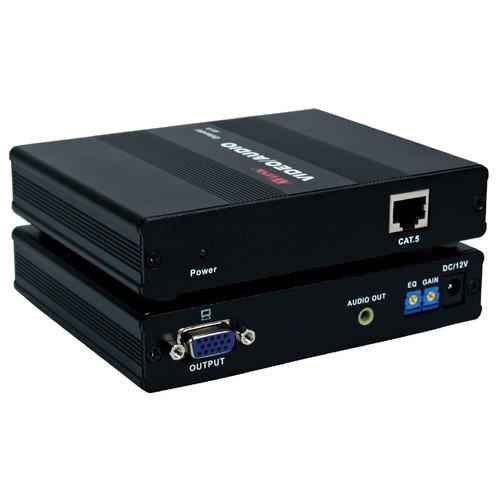

User Manual for QVS VAC5-ER VGA QXGA Stereo Audio over CAT5e Receiver Module Click to enlarge the picture
Contents of the user manual for the QVS VAC5-ER VGA QXGA Stereo Audio
- Product category: Video Extenders & Repeaters QVS
- Brand: QVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QVS Video Extenders & Repeaters
|
User manual for the QVS VAC5-ER VGA QXGA Stereo Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QVS product will considerably shorten its lifespan!
|
Product description The VAC5-ER VGA/QXGA/Stereo Audio over CAT5e Receiver Module from QVS extends audio and video signals up to 590' away via the VGA/Audio Extender System and a CAT5/RJ45 cable. This receiver remote module provides 3.5mm stereo audio and video equalization and signal gain adjustment. It supports 96 kHz audio sampling rate and maximum video resolution of 2048 x 1536/60 Hz for up to 164', 1280 x 1024/60 Hz for up to 328', and 1024 x 768/60 Hz for up to 590'. This module must be used in conjunction with the VAC5-EX Transmitter local module along with a CAT5e cable. UPC: 037229007220 In the Box QVS VAC5-ER VGA/QXGA/Stereo Audio over CAT5e Receiver Module (590') Power Adaptor Table of Contents
|
Upload User Manual
Have you got an user manual for the QVS VAC5-ER VGA QXGA Stereo Audio over CAT5e Receiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQVS VAC5-ER Specs | Distance | Up to 590' (180 m) | | Supported Resolutions | 2048 x 1536/60 Hz for up to 164' (50 m)
1280 x 1024/60 Hz for up to 328' (100 m)
1024 x 768/60 Hz for up to 590' (180 m) | | Connectors | 1 x RJ45
1 x 15-pin Sub-D, VGA
1 x 3.5 mm phone jack, audio
1 x Power | | | | Box Dimensions (LxWxH) | 9.5 x 6.0 x 3.0" |
